BIXOLON SRP-F310 Service Manual

Rev. 1.00
- 53 -
SRP-F310/312

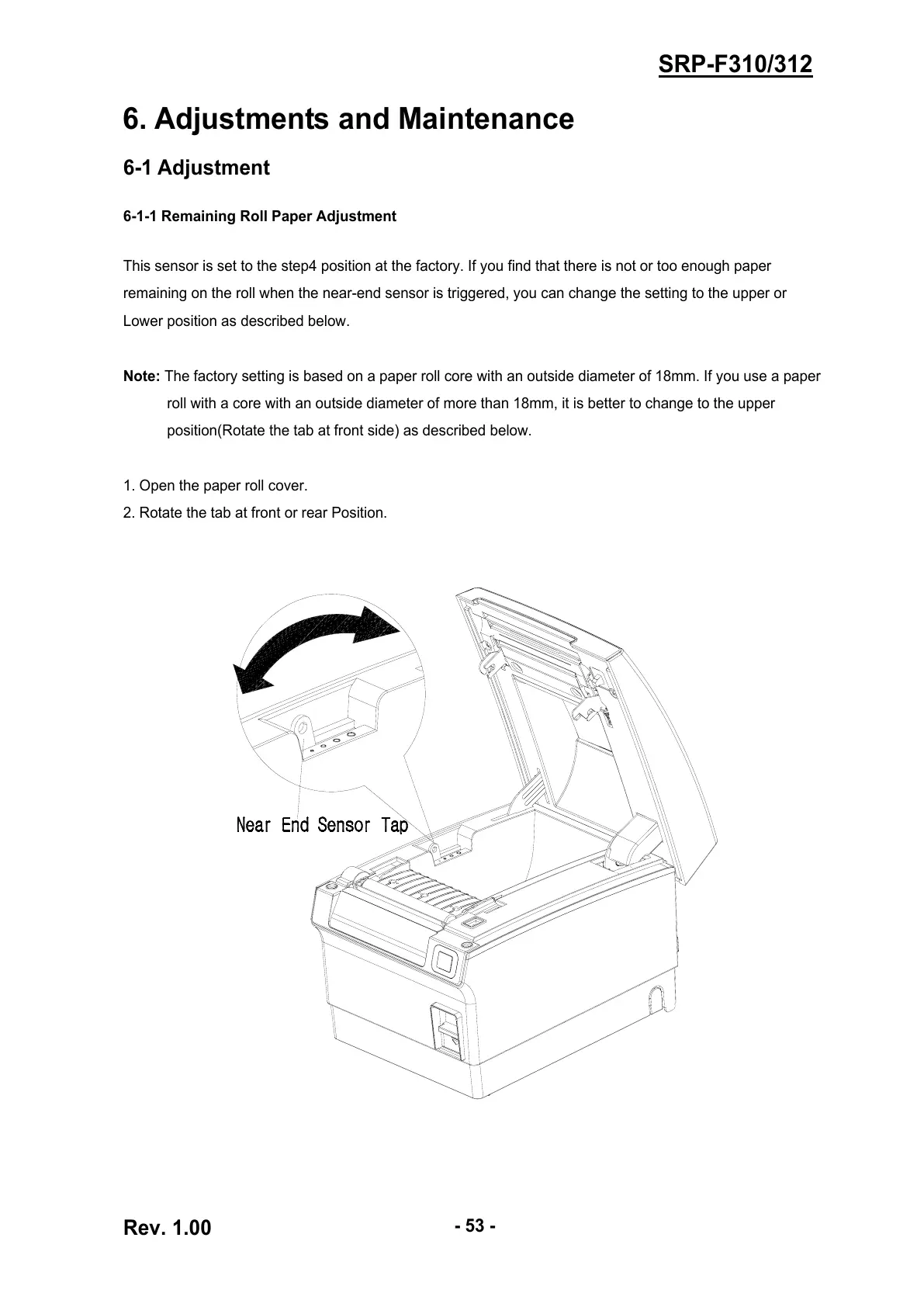

6. Adjustments and Maintenance
6-1 Adjustment
6-1-1 Remaining Roll Paper Adjustment
This sensor is set to the step4 position at the factory. If you find that there is not or too enough paper
remaining on the roll when the near-end sensor is triggered, you can change the setting to the upper or
Lower position as described below.
Note: The factory setting is based on a paper roll core with an outside diameter of 18mm. If you use a paper
roll with a core with an outside diameter of more than 18mm, it is better to change to the upper
position(Rotate the tab at front side) as described below.
1. Open the paper roll cover.
2. Rotate the tab at front or rear Position.
All manuals and user guides at all-guides.com

BIXOLON SRP-F310 Specifications

General

Color	No
Print technology	Direct thermal
Maximum resolution	180 x 180 DPI
Maximum printing width	72 mm
Network ready	Yes
Ethernet LAN	-
Optional connectivity	Wireless LAN
USB 2.0 ports quantity	1
Connectivity technology	Wired
Power requirements	AC 100-240V / DC 24V, 2.5A
Compatible operating systems	Windows, Mac, Linux Kernel 2.4.18+
Number of fonts	3
Built-in barcodes	CODABAR (NW-7), EAN13, EAN8, ITF-14, UPC-A, UPC-E
Operating temperature (T-T)	0 - 45 °C
Maximum roll diameter	105 mm
Supported paper width	80 - 83 mm

Weight and Dimensions

Depth	203 mm
Width	154 mm
Height	148 mm
Weight	2000 g
