BIXOLON SRP-F310 Service Manual

Rev. 1.00
- 30 -
SRP-F310/312

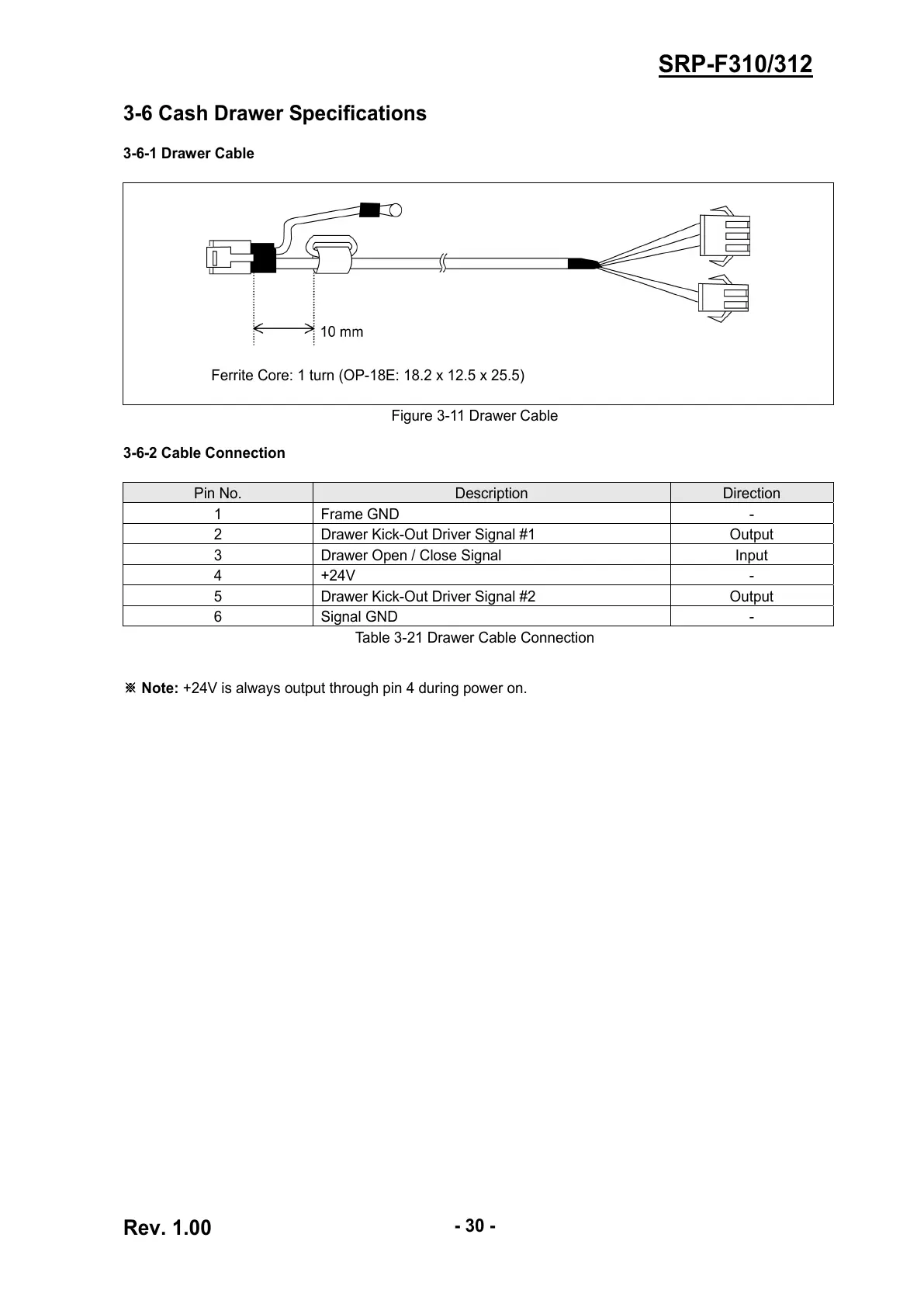

3-6 Cash Drawer Specifications
3-6-1 Drawer Cable
Ferrite Core: 1 turn (OP-18E: 18.2 x 12.5 x 25.5)
Figure 3-11 Drawer Cable
3-6-2 Cable Connection
Pin No. Description Direction
1 Frame GND -
2 Drawer Kick-Out Driver Signal #1 Output
3 Drawer Open / Close Signal Input
4 +24V -
5 Drawer Kick-Out Driver Signal #2 Output
6 Signal GND -
Table 3-21 Drawer Cable Connection
※ Note: +24V is always output through pin 4 during power on.
All manuals and user guides at all-guides.com

BIXOLON SRP-F310 Specifications

General

Color	No
Print technology	Direct thermal
Maximum resolution	180 x 180 DPI
Maximum printing width	72 mm
Network ready	Yes
Ethernet LAN	-
Optional connectivity	Wireless LAN
USB 2.0 ports quantity	1
Connectivity technology	Wired
Power requirements	AC 100-240V / DC 24V, 2.5A
Compatible operating systems	Windows, Mac, Linux Kernel 2.4.18+
Number of fonts	3
Built-in barcodes	CODABAR (NW-7), EAN13, EAN8, ITF-14, UPC-A, UPC-E
Operating temperature (T-T)	0 - 45 °C
Maximum roll diameter	105 mm
Supported paper width	80 - 83 mm

Weight and Dimensions

Depth	203 mm
Width	154 mm
Height	148 mm
Weight	2000 g
