BIXOLON SRP-F310 - Setting Up the Printer; Unpacking and Contents

Rev. 1.00
- 8 -
SRP-F310/312

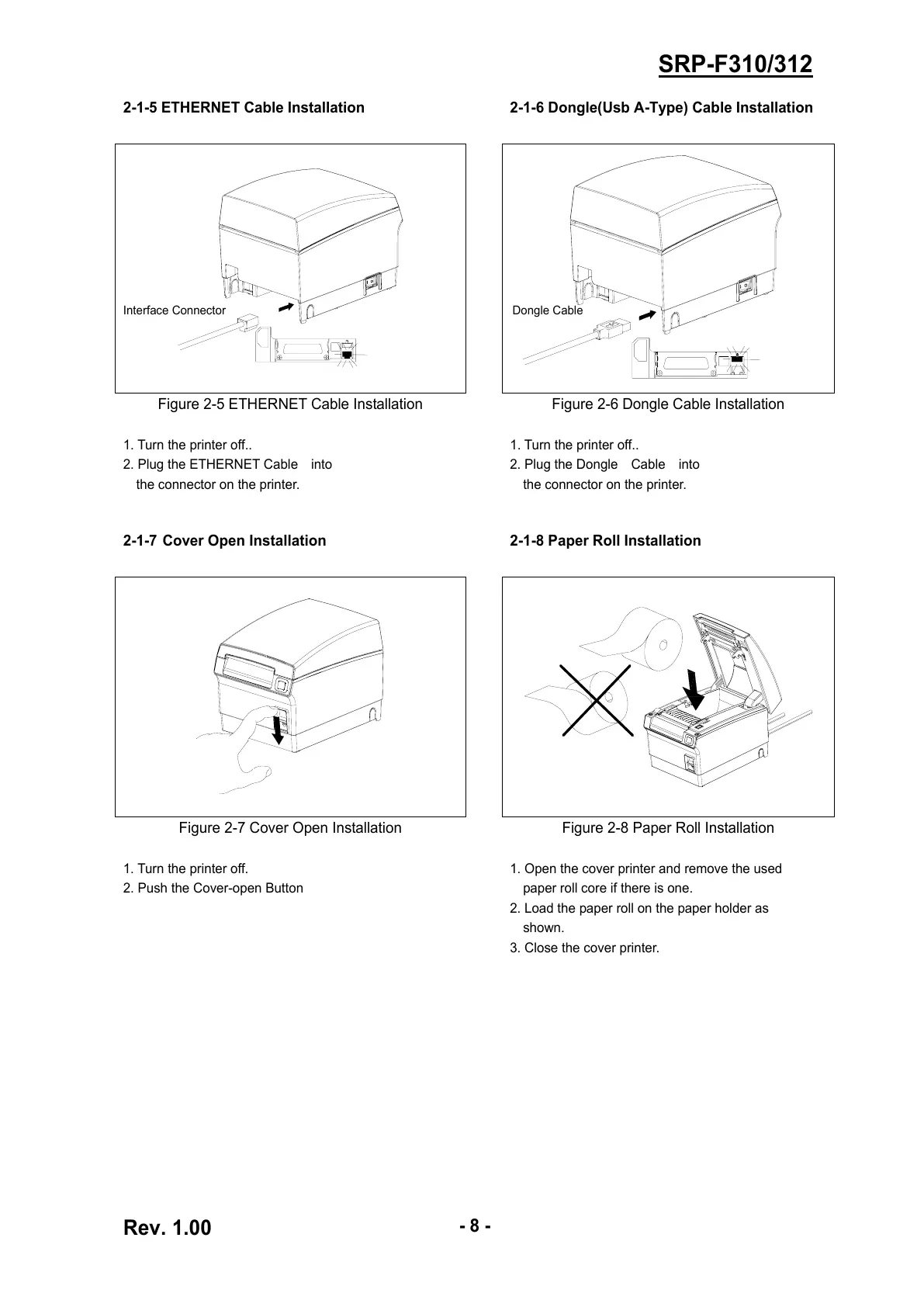

2-1-5 ETHERNET Cable Installation
2-1-6 Dongle(Usb A-Type) Cable Installation
Figure 2-5 ETHERNET Cable Installation
1. Turn the printer off..
2. Plug the ETHERNET Cable into
the connector on the printer.
2-1-7 Cover Open Installation
Figure 2-6 Dongle Cable Installation
1. Turn the printer off..
2. Plug the Dongle Cable into
the connector on the printer.
2-1-8 Paper Roll Installation
Figure 2-7 Cover Open Installation
1. Turn the printer off.
2. Push the Cover-open Button
Figure 2-8 Paper Roll Installation
1. Open the cover printer and remove the used
paper roll core if there is one.
2. Load the paper roll on the paper holder as
shown.
3. Close the cover printer.
Dongle Cable
Interface Connecto
r
