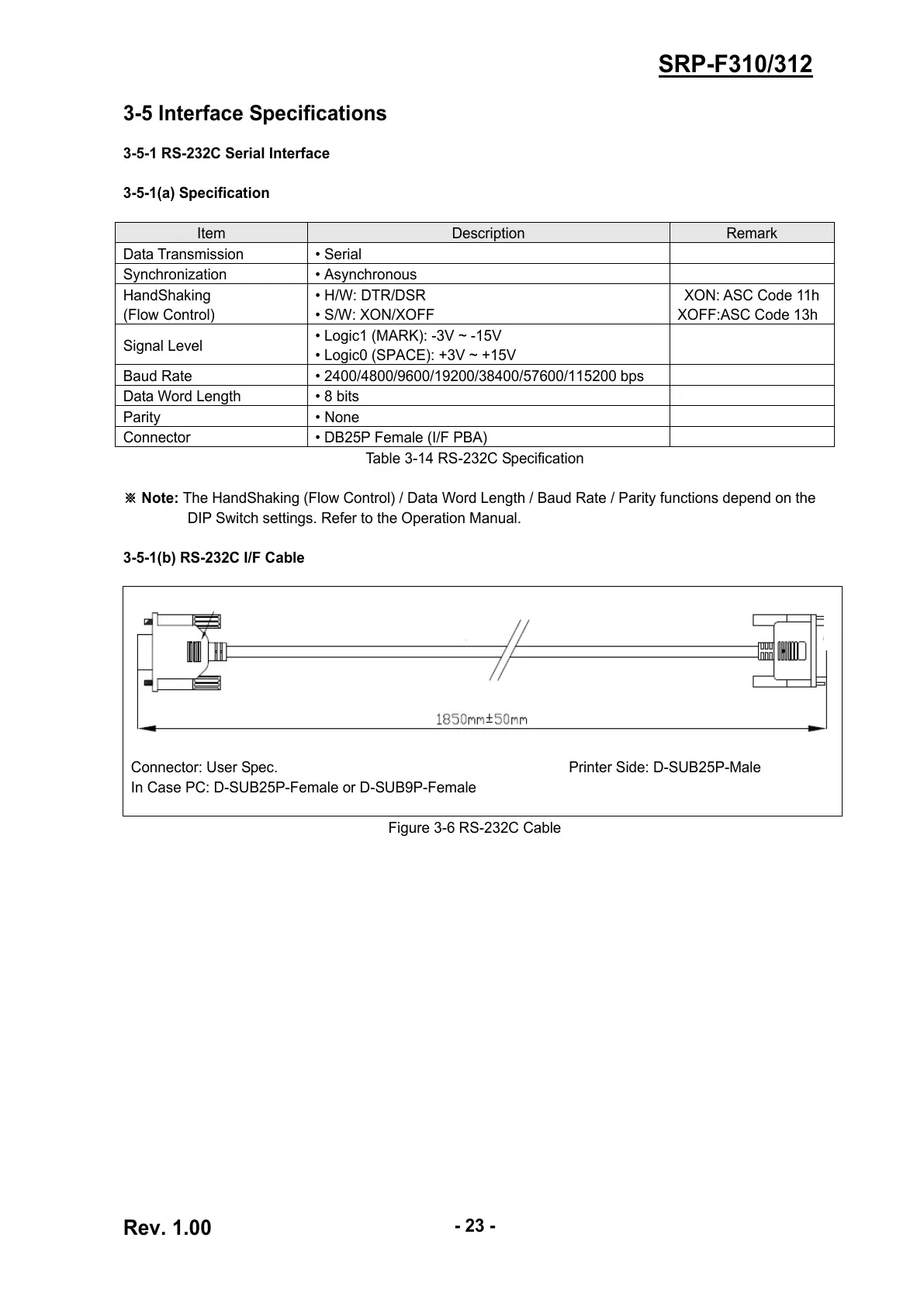

BIXOLON SRP-F310 Service Manual

Rev. 1.00
- 23 -
SRP-F310/312
3-5 Interface Specifications
3-5-1 RS-232C Serial Interface
3-5-1(a) Specification
Item Description Remark
Data Transmission • Serial
Synchronization • Asynchronous
HandShaking
(Flow Control)
• H/W: DTR/DSR
• S/W: XON/XOFF
XON: ASC Code 11h
XOFF:ASC Code 13h
Signal Level
• Logic1 (MARK): -3V ~ -15V
• Logic0 (SPACE): +3V ~ +15V
Baud Rate • 2400/4800/9600/19200/38400/57600/115200 bps
Data Word Length • 8 bits
Parity • None
Connector • DB25P Female (I/F PBA)
Table 3-14 RS-232C Specification
※ Note: The HandShaking (Flow Control) / Data Word Length / Baud Rate / Parity functions depend on the
DIP Switch settings. Refer to the Operation Manual.
3-5-1(b) RS-232C I/F Cable
Connector: User Spec.
In Case PC: D-SUB25P-Female or D-SUB9P-Female
Printer Side: D-SUB25P-Male
Figure 3-6 RS-232C Cable
All manuals and user guides at all-guides.com

BIXOLON SRP-F310 Specifications

General

Color	No
Print technology	Direct thermal
Maximum resolution	180 x 180 DPI
Maximum printing width	72 mm
Network ready	Yes
Ethernet LAN	-
Optional connectivity	Wireless LAN
USB 2.0 ports quantity	1
Connectivity technology	Wired
Power requirements	AC 100-240V / DC 24V, 2.5A
Compatible operating systems	Windows, Mac, Linux Kernel 2.4.18+
Number of fonts	3
Built-in barcodes	CODABAR (NW-7), EAN13, EAN8, ITF-14, UPC-A, UPC-E
Operating temperature (T-T)	0 - 45 °C
Maximum roll diameter	105 mm
Supported paper width	80 - 83 mm

Weight and Dimensions

Depth	203 mm
Width	154 mm
Height	148 mm
Weight	2000 g
