BIXOLON SRP-F310 Service Manual

Rev. 1.00
- 62 -
SRP-F310/312

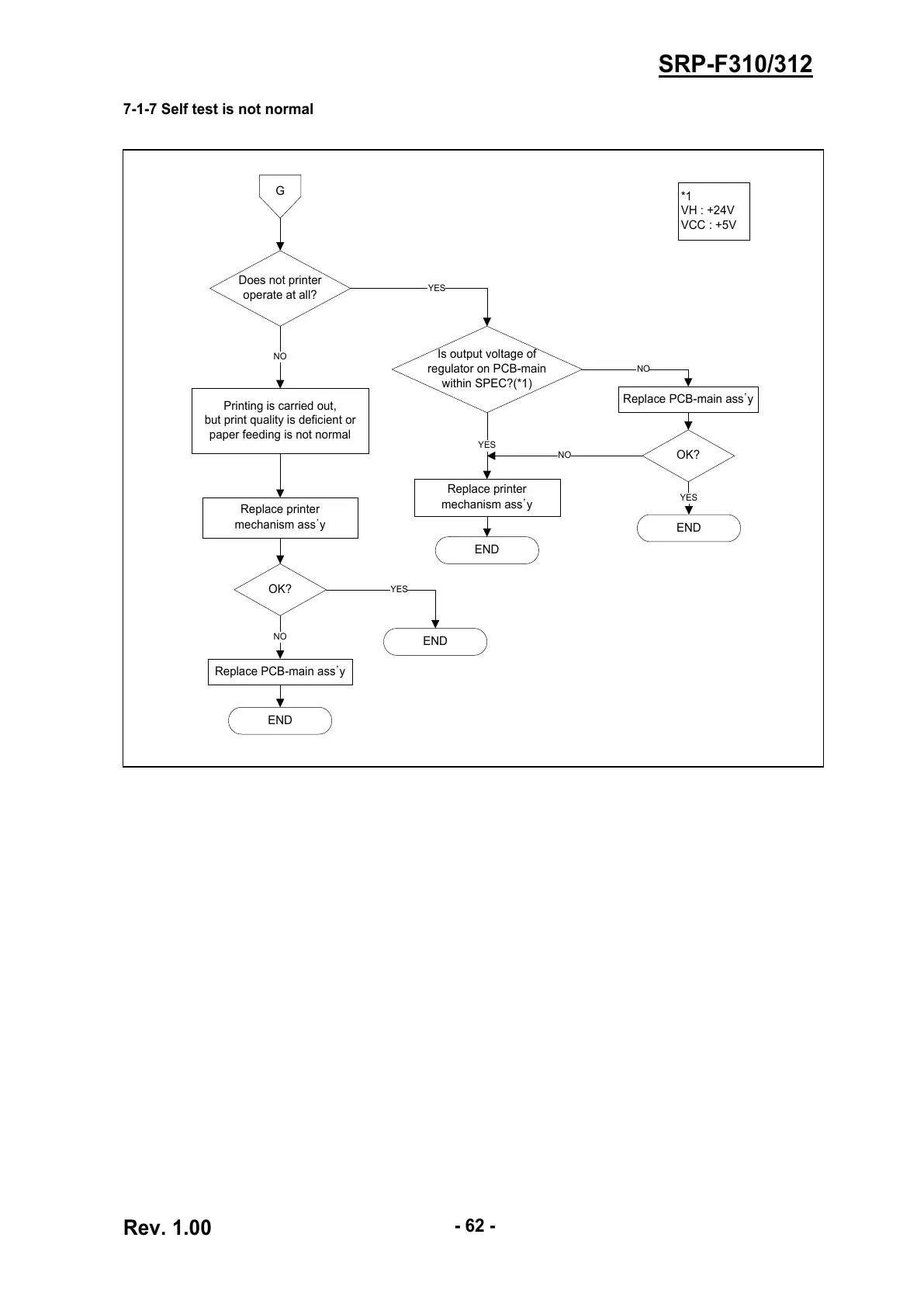

7-1-7 Self test is not normal
G
Does not printer
operate at all?
Is output voltage of
regulator on PCB-main
within SPEC?(*1)
Replace PCB-main ass’y
Replace printer
mechanism ass’y
END
END
YES
NO
YES
OK?
NO
YES
Printing is carried out,
but print quality is deficient or
paper feeding is not normal
Replace printer
mechanism ass’y
OK?
Replace PCB-main ass’y
END
END
NO
YES
NO
*1
VH : +24V
VCC : +5V
All manuals and user guides at all-guides.com

BIXOLON SRP-F310 Specifications

General

Color	No
Print technology	Direct thermal
Maximum resolution	180 x 180 DPI
Maximum printing width	72 mm
Network ready	Yes
Ethernet LAN	-
Optional connectivity	Wireless LAN
USB 2.0 ports quantity	1
Connectivity technology	Wired
Power requirements	AC 100-240V / DC 24V, 2.5A
Compatible operating systems	Windows, Mac, Linux Kernel 2.4.18+
Number of fonts	3
Built-in barcodes	CODABAR (NW-7), EAN13, EAN8, ITF-14, UPC-A, UPC-E
Operating temperature (T-T)	0 - 45 °C
Maximum roll diameter	105 mm
Supported paper width	80 - 83 mm

Weight and Dimensions

Depth	203 mm
Width	154 mm
Height	148 mm
Weight	2000 g
