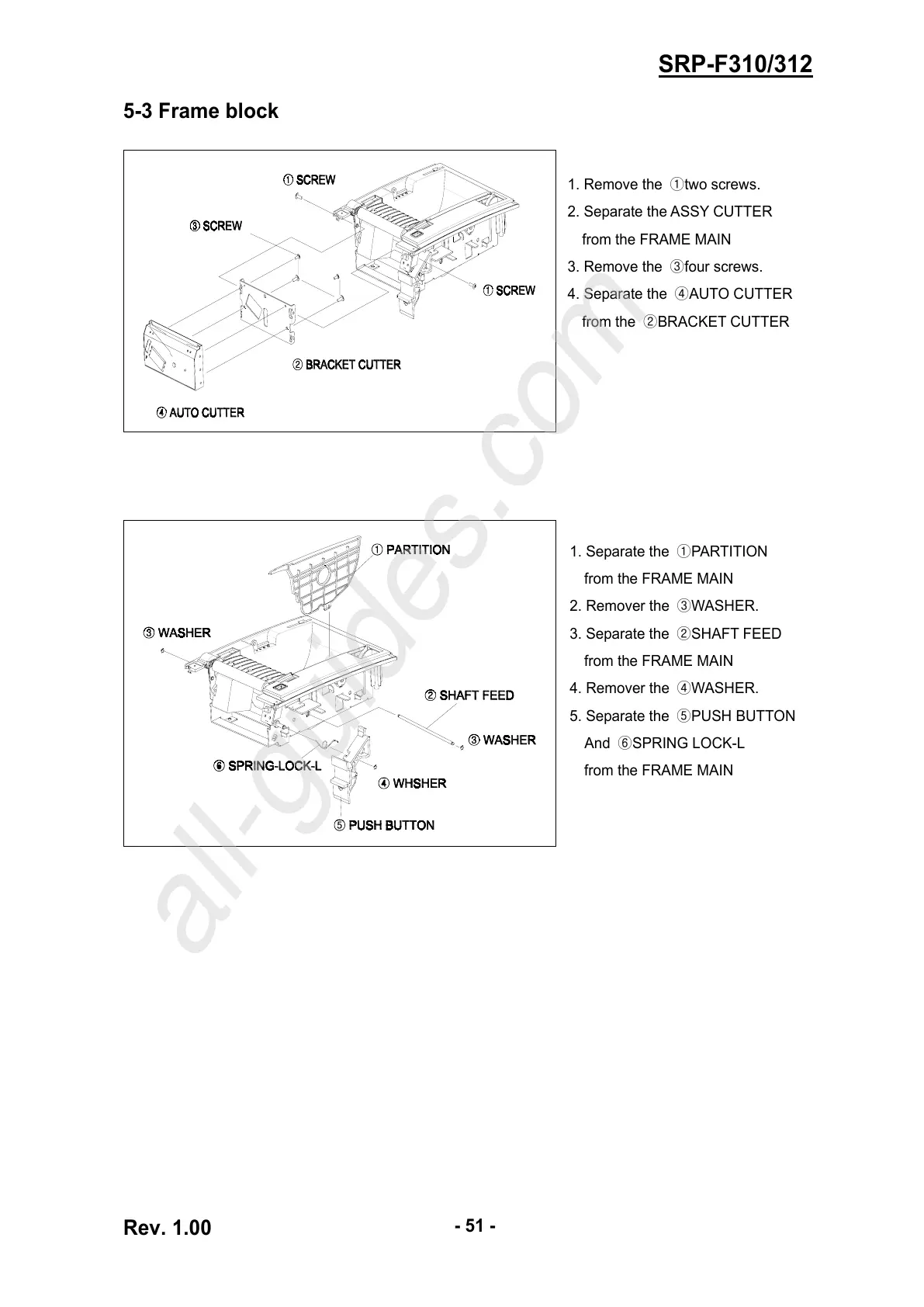

5-3 Frame block
1. Remove the ①two screws.
2. Separate the ASSY CUTTER
from the FRAME MAIN
3. Remove the ③four screws.
4. Separate the ④AUTO CUTTER
from the ②BRACKET CUTTER
1. Separate the ①PARTITION
from the FRAME MAIN
2. Remover the ③WASHER.
3. Separate the ②SHAFT FEED
from the FRAME MAIN
4. Remover the ④WASHER.
5. Separate the ⑤PUSH BUTTON
And ⑥SPRING LOCK-L
from the FRAME MAIN
