BIXOLON SRP-F310 Service Manual

Rev. 1.00
- 50 -
SRP-F310/312

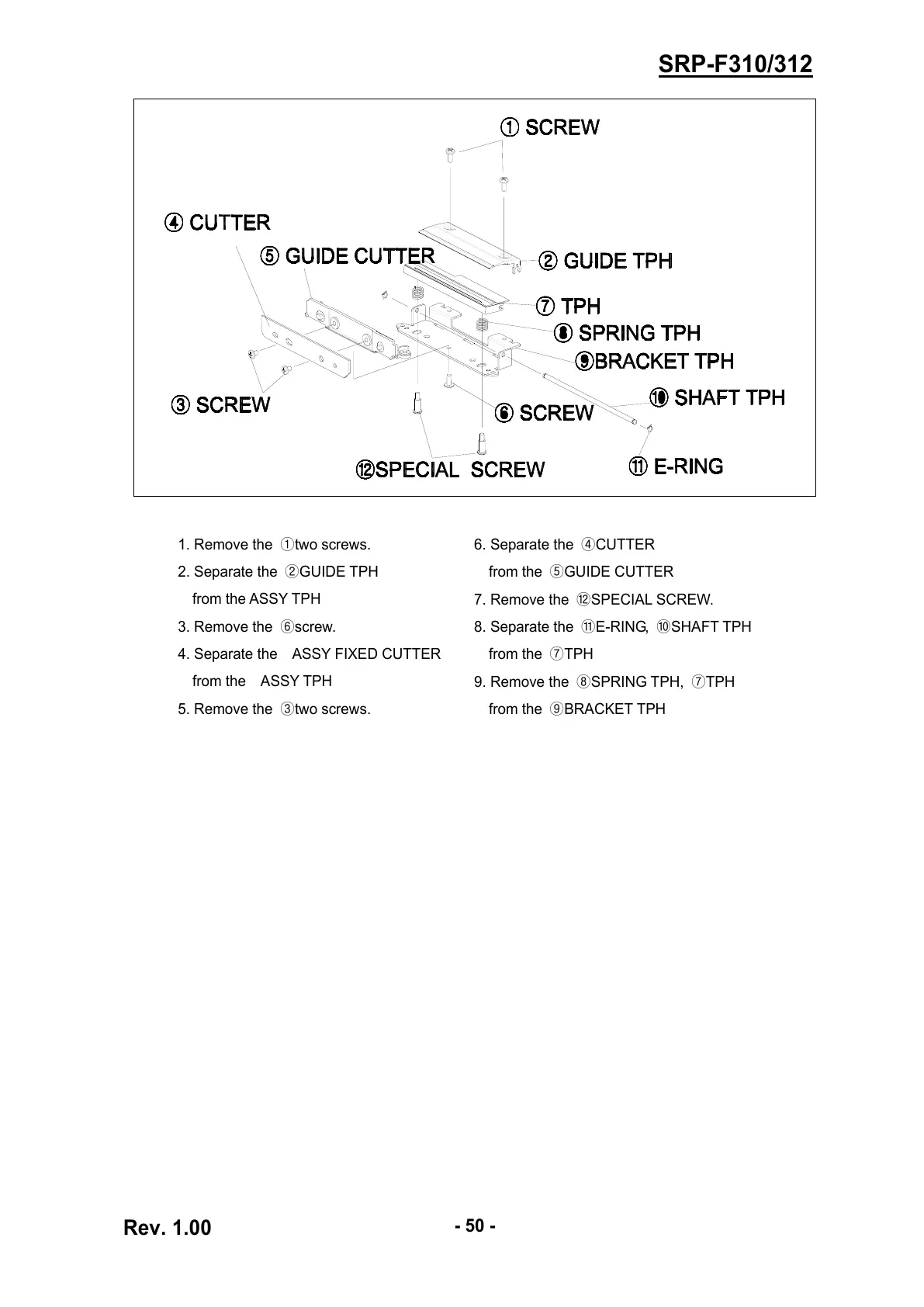

1. Remove the ①two screws.
2. Separate the ②GUIDE TPH
from the ASSY TPH
3. Remove the ⑥screw.
4. Separate the ASSY FIXED CUTTER
from the ASSY TPH
5. Remove the ③two screws.
6. Separate the ④CUTTER
from the ⑤GUIDE CUTTER
7. Remove the ⑫SPECIAL SCREW.
8. Separate the ⑪E-RING, ⑩SHAFT TPH
from the ⑦TPH
9. Remove the ⑧SPRING TPH, ⑦TPH
from the ⑨BRACKET TPH
