BIXOLON SRP-F310 Service Manual

Rev. 1.00
- 49 -
SRP-F310/312

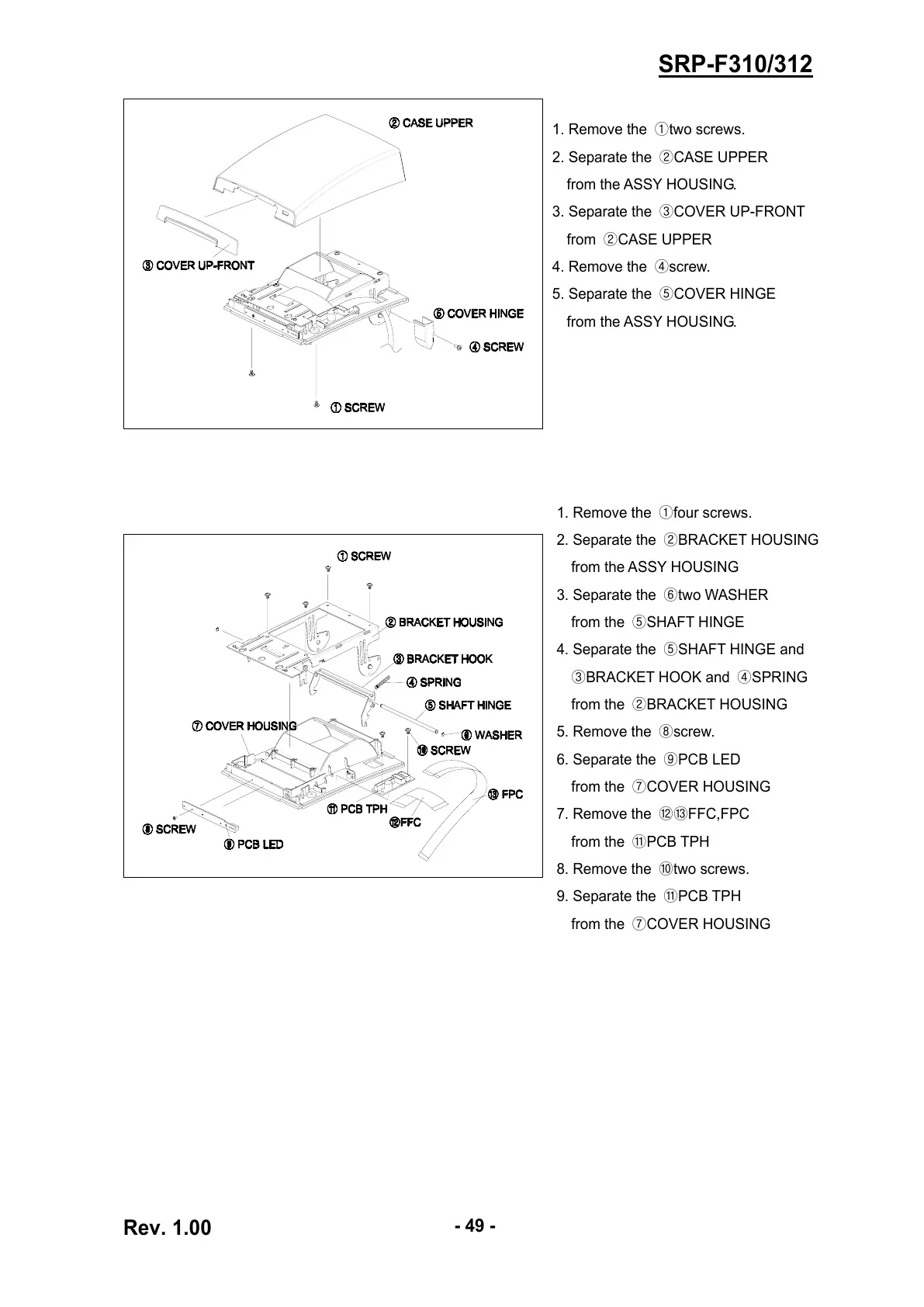

1. Remove the ①two screws.
2. Separate the ②CASE UPPER
from the ASSY HOUSING.
3. Separate the ③COVER UP-FRONT
from ②CASE UPPER
4. Remove the ④screw.
5. Separate the ⑤COVER HINGE
from the ASSY HOUSING.
1. Remove the ①four screws.
2. Separate the ②BRACKET HOUSING
from the ASSY HOUSING
3. Separate the ⑥two WASHER
from the ⑤SHAFT HINGE
4. Separate the ⑤SHAFT HINGE and
③BRACKET HOOK and ④SPRING
from the ②BRACKET HOUSING
5. Remove the ⑧screw.
6. Separate the ⑨PCB LED
from the ⑦COVER HOUSING
7. Remove the ⑫⑬FFC,FPC
from the ⑪PCB TPH
8. Remove the ⑩two screws.
9. Separate the ⑪PCB TPH
from the ⑦COVER HOUSING
All manuals and user guides at all-guides.com

BIXOLON SRP-F310 Specifications

General

Color	No
Print technology	Direct thermal
Maximum resolution	180 x 180 DPI
Maximum printing width	72 mm
Network ready	Yes
Ethernet LAN	-
Optional connectivity	Wireless LAN
USB 2.0 ports quantity	1
Connectivity technology	Wired
Power requirements	AC 100-240V / DC 24V, 2.5A
Compatible operating systems	Windows, Mac, Linux Kernel 2.4.18+
Number of fonts	3
Built-in barcodes	CODABAR (NW-7), EAN13, EAN8, ITF-14, UPC-A, UPC-E
Operating temperature (T-T)	0 - 45 °C
Maximum roll diameter	105 mm
Supported paper width	80 - 83 mm

Weight and Dimensions

Depth	203 mm
Width	154 mm
Height	148 mm
Weight	2000 g
