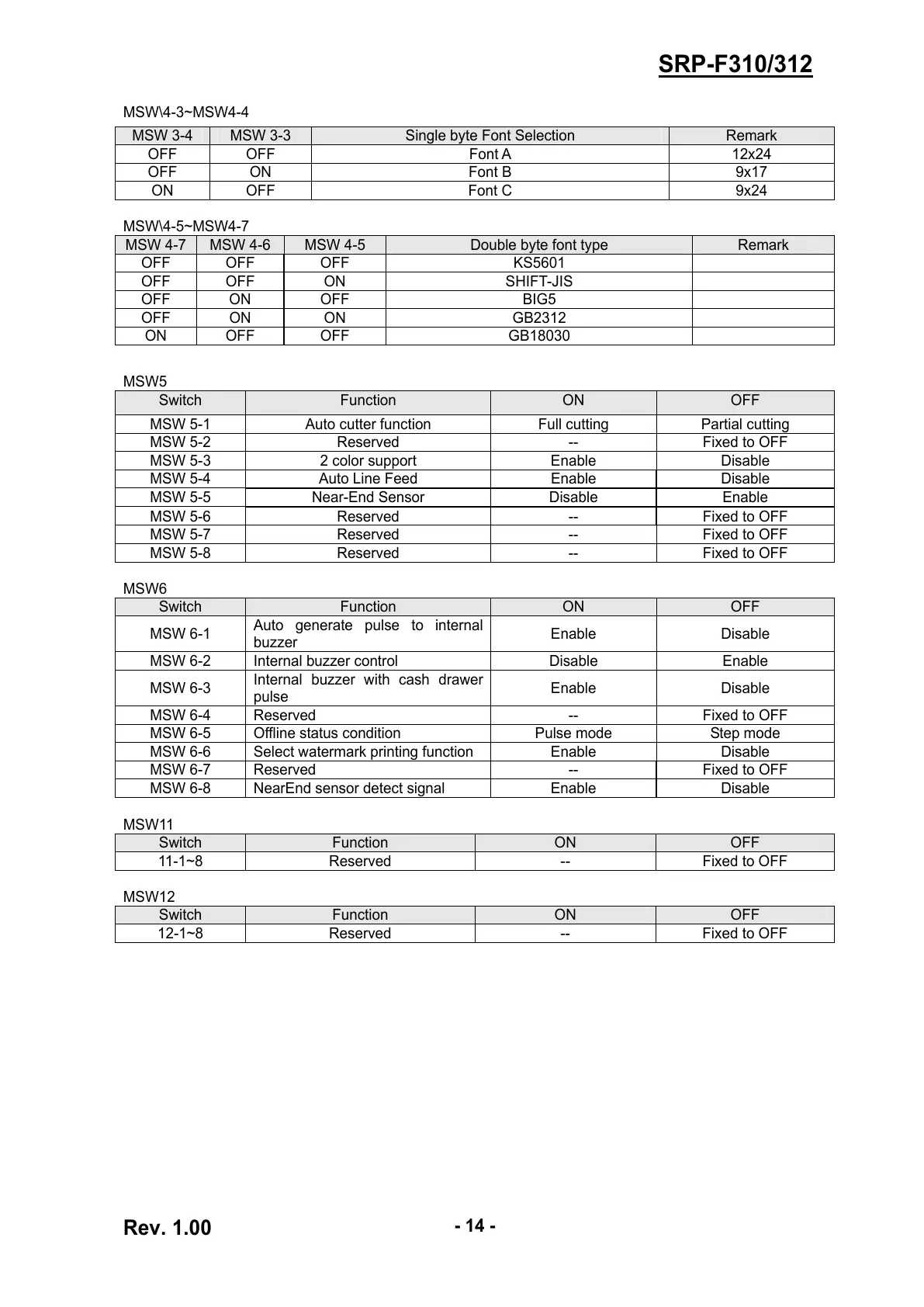

BIXOLON SRP-F310 Service Manual

Rev. 1.00
- 14 -
SRP-F310/312
MSW\4-3~MSW4-4
MSW 3-4 MSW 3-3 Single byte Font Selection Remark
OFF OFF Font A 12x24
OFF ON Font B 9x17
ON OFF Font C 9x24
MSW\4-5~MSW4-7
MSW 4-7 MSW 4-6 MSW 4-5 Double byte font type Remark
OFF OFF OFF KS5601
OFF OFF ON SHIFT-JIS
OFF ON OFF BIG5
OFF ON ON GB2312
ON OFF OFF GB18030
MSW5
Switch Function ON OFF
MSW 5-1 Auto cutter function Full cutting Partial cutting
MSW 5-2 Reserved -- Fixed to OFF
MSW 5-3 2 color support Enable Disable
MSW 5-4 Auto Line Feed Enable Disable
MSW 5-5 Near-End Sensor Disable Enable
MSW 5-6 Reserved -- Fixed to OFF
MSW 5-7 Reserved -- Fixed to OFF
MSW 5-8 Reserved -- Fixed to OFF
MSW6
Switch Function ON OFF
MSW 6-1
Auto generate pulse to internal
buzzer
Enable Disable
MSW 6-2 Internal buzzer control Disable Enable
MSW 6-3
Internal buzzer with cash drawer
pulse
Enable Disable
MSW 6-4 Reserved -- Fixed to OFF
MSW 6-5 Offline status condition Pulse mode Step mode
MSW 6-6 Select watermark printing function Enable Disable
MSW 6-7 Reserved -- Fixed to OFF
MSW 6-8 NearEnd sensor detect signal Enable Disable
MSW11
Switch Function ON OFF
11-1~8 Reserved -- Fixed to OFF
MSW12
Switch Function ON OFF
12-1~8 Reserved -- Fixed to OFF
