BIXOLON SRP-F310 Service Manual

Rev. 1.00
- 28 -
SRP-F310/312

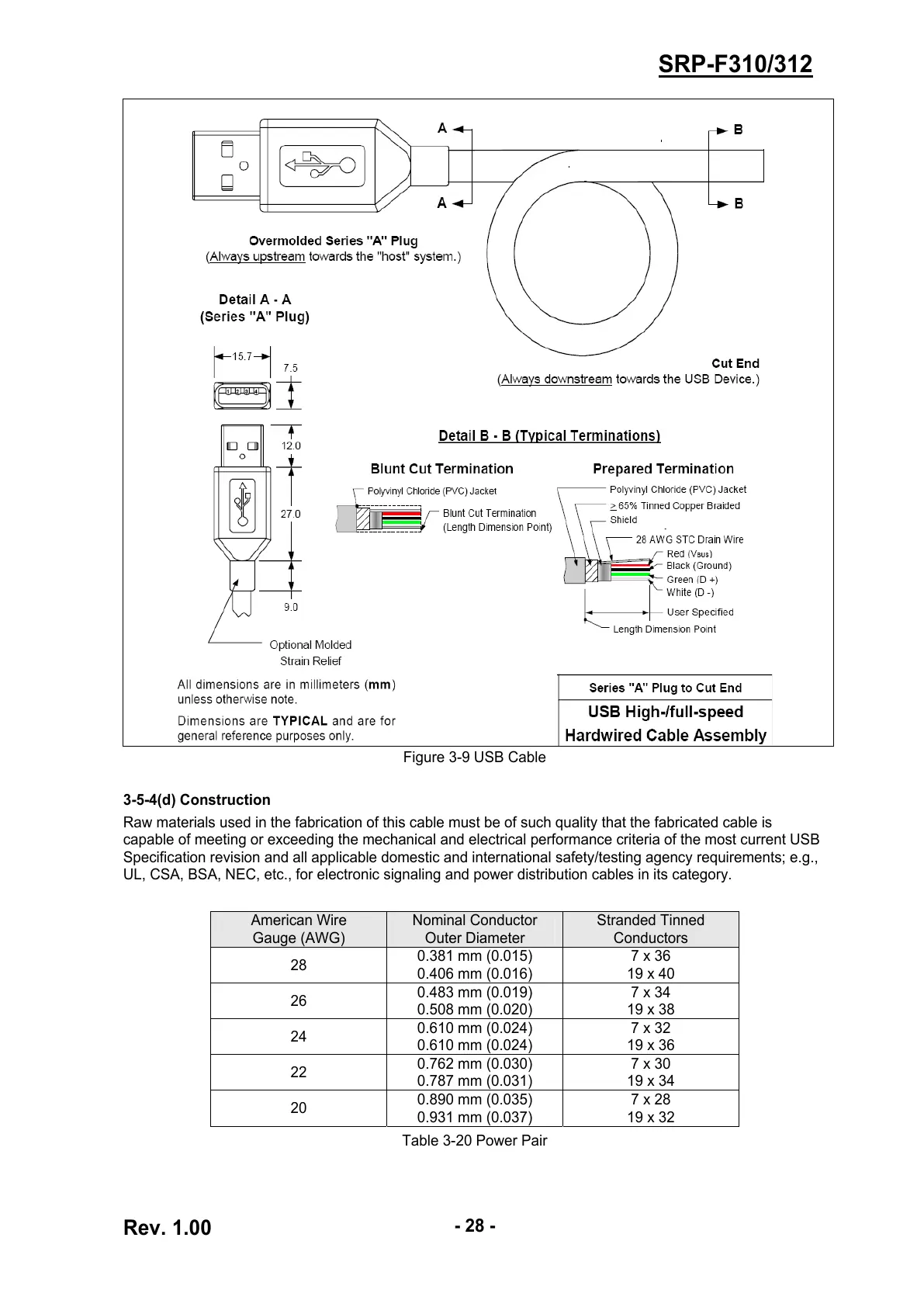

Figure 3-9 USB Cable
3-5-4(d) Construction
Raw materials used in the fabrication of this cable must be of such quality that the fabricated cable is
capable of meeting or exceeding the mechanical and electrical performance criteria of the most current USB
Specification revision and all applicable domestic and international safety/testing agency requirements; e.g.,
UL, CSA, BSA, NEC, etc., for electronic signaling and power distribution cables in its category.
American Wire
Gauge (AWG)
Nominal Conductor
Outer Diameter
Stranded Tinned
Conductors
28
0.381 mm (0.015)
0.406 mm (0.016)
7 x 36
19 x 40
26
0.483 mm (0.019)
0.508 mm (0.020)
7 x 34
19 x 38
24
0.610 mm (0.024)
0.610 mm (0.024)
7 x 32
19 x 36
22
0.762 mm (0.030)
0.787 mm (0.031)
7 x 30
19 x 34
20
0.890 mm (0.035)
0.931 mm (0.037)
7 x 28
19 x 32
Table 3-20 Power Pair
All manuals and user guides at all-guides.com

BIXOLON SRP-F310 Specifications

General

Color	No
Print technology	Direct thermal
Maximum resolution	180 x 180 DPI
Maximum printing width	72 mm
Network ready	Yes
Ethernet LAN	-
Optional connectivity	Wireless LAN
USB 2.0 ports quantity	1
Connectivity technology	Wired
Power requirements	AC 100-240V / DC 24V, 2.5A
Compatible operating systems	Windows, Mac, Linux Kernel 2.4.18+
Number of fonts	3
Built-in barcodes	CODABAR (NW-7), EAN13, EAN8, ITF-14, UPC-A, UPC-E
Operating temperature (T-T)	0 - 45 °C
Maximum roll diameter	105 mm
Supported paper width	80 - 83 mm

Weight and Dimensions

Depth	203 mm
Width	154 mm
Height	148 mm
Weight	2000 g
