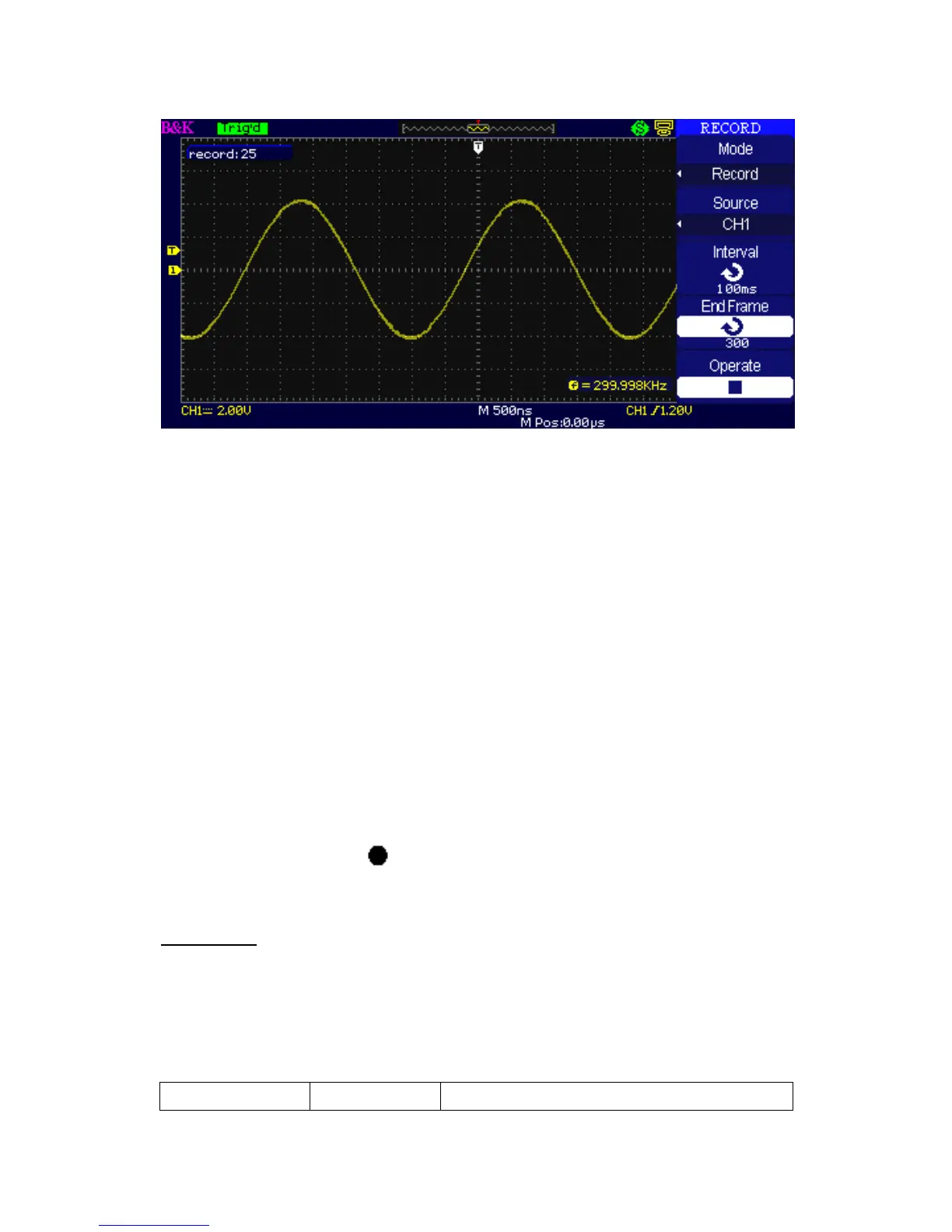

Figure 3.68 – Record Menu Screen (Record Mode)
To record waveforms, follow these steps:
1. Press the UTILITY button to enter “Utility menu”.
2. Press the “Next Page” option button to enter the third
page of “Utility menu”.
3. Press the “Record” button to enter “Waveform Record
Menu”.
4. Press the “Mode” option button to select “Record”.
5. Press the “Source” option button to select the input
signal channel.
6. Select “Interval” option and turn the “Universal” knob to
adjust time interval between record frames.
7. Select “End Frame” and turn the “Universal” knob to
adjust the max record frame.
8. Press “ ” in “Operate” option to record waveform.
Play Back
Play back current recorded waveforms or recorded waveforms that have
been saved.
Table 3.61 – Waveform Playback Function Menu 1
To Next Page
