7
Verify AC Input Voltage
Verify and check to make sure proper AC voltages are available to
power the instrument. The AC voltage range must meet the
acceptable specification as explained in section 2.1.
Connect Power
Connect AC power cord to the AC receptacle in the rear panel and
press the power switch to the ON position to turn ON the
instrument. The instrument will have a boot screen while loading,
after which the main screen will be displayed.
Self Test
The instrument has 3 self-test options to test the screen, keys,
and the LED back lights of the function, menu, and channel keys
as shown below.

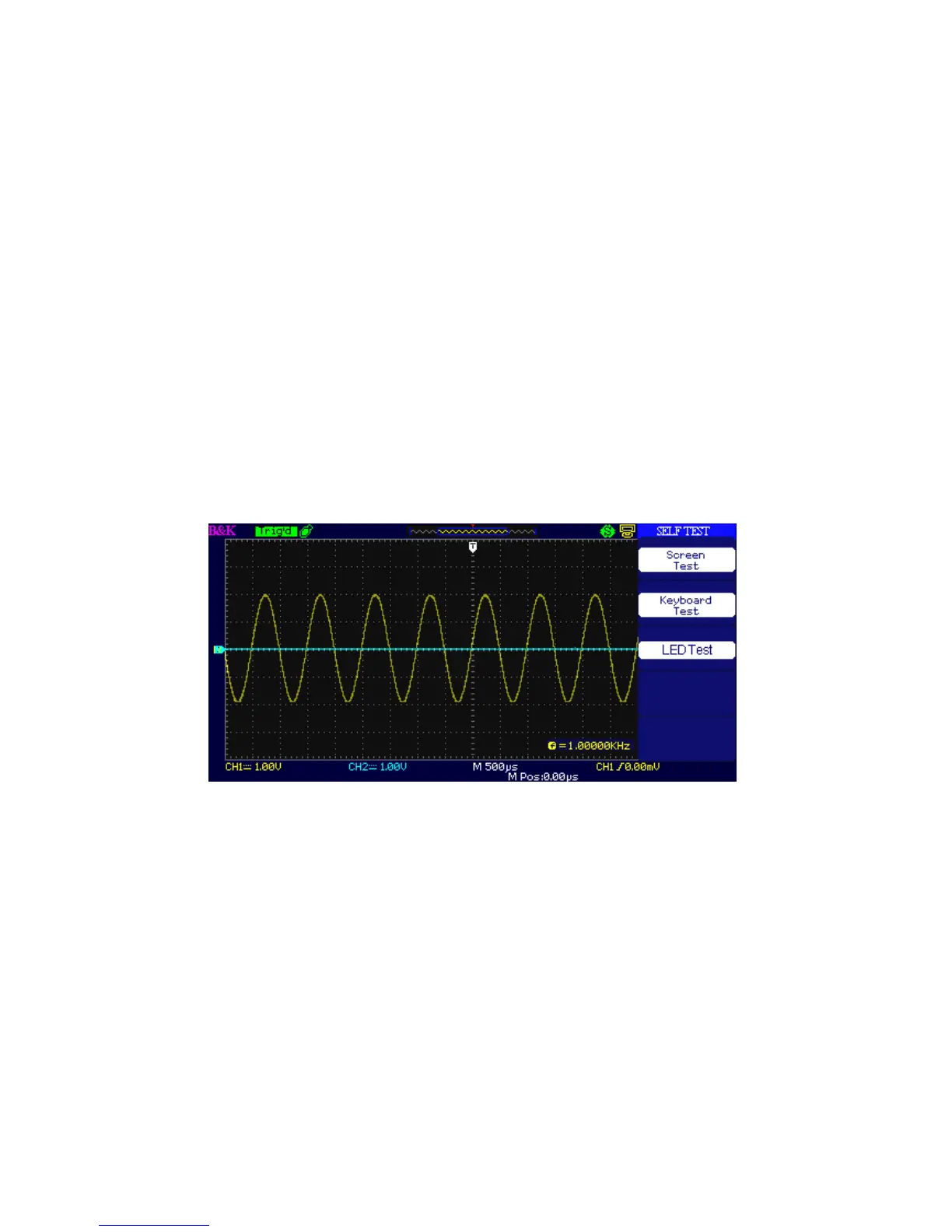

Figure 2.1 – Self Test Menu
To perform the self test, please refer to the Self Test section for
further instructions.
Self Cal
This option runs an internal self calibration procedure that will
check and adjust the instrument. To perform the self calibration,
please refer to the Self Calibration section for further
instructions.
