3.3 Auto Setup
The 2190D Digital Storage Oscilloscope has an Auto Setup function that
identifies the waveform types and automatically adjusts controls to
produce a usable display of the input signal.
Press the AUTO front panel button, and then press the menu option
button adjacent to the desired waveform as follows:

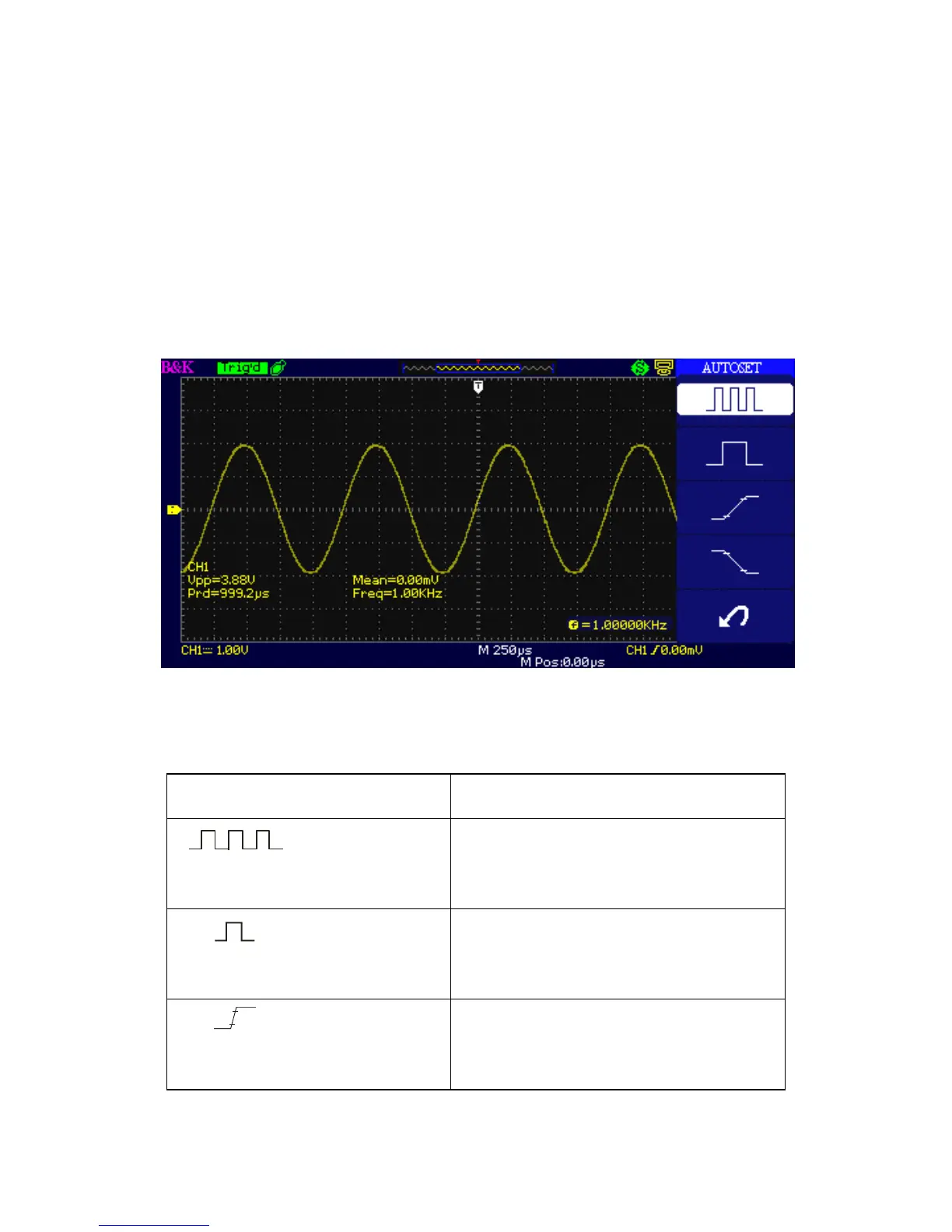

Figure 3.3 – Auto Setup
Table 3.1 – Autoset Menu
Option
Description
(Multi-cycle sine)
Auto set the screen and display
several cycles signal.
(Single-cycle sine)
Set the screen and auto display
single cycle signal.
(Rising edge)
Auto set and show the rising time.
