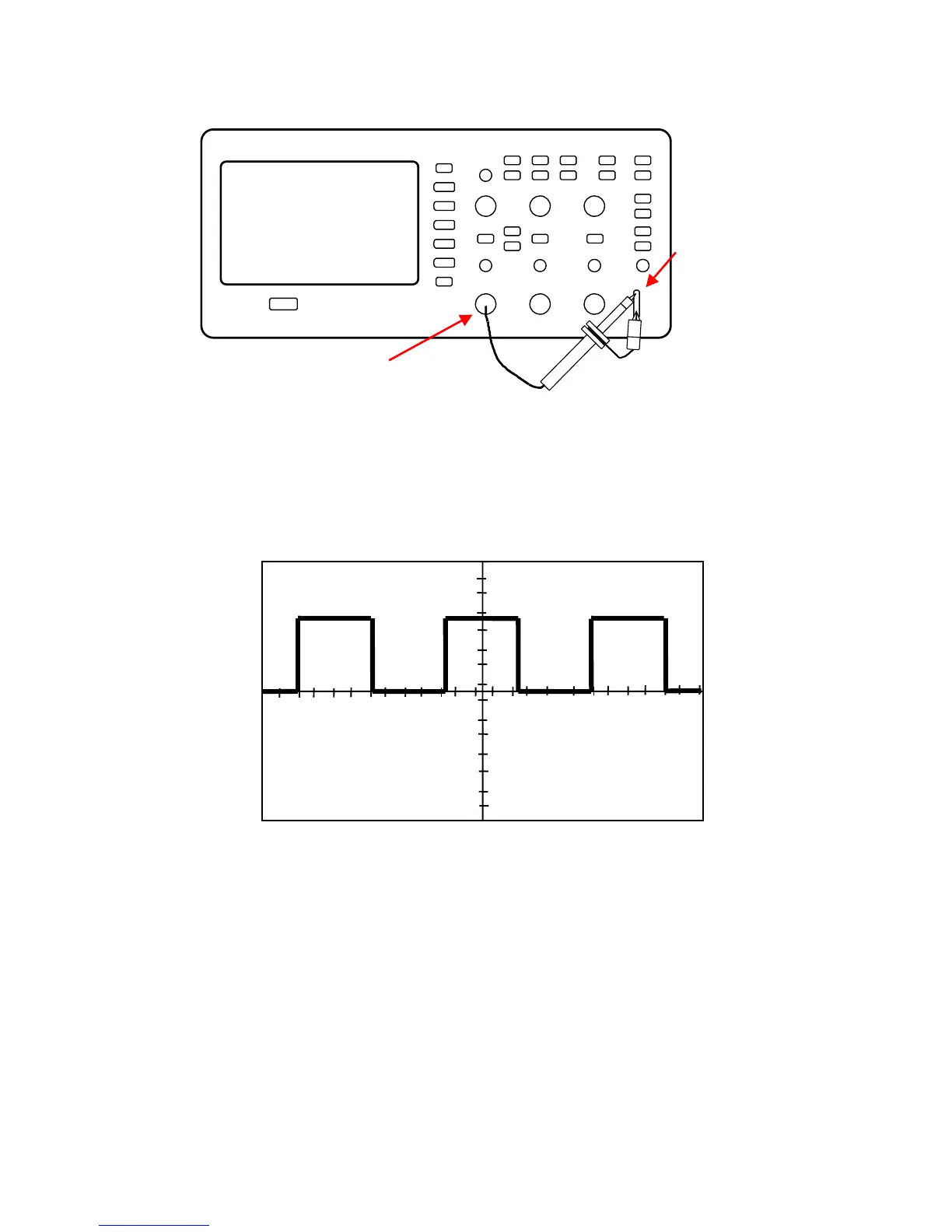

Figure 2.3 – Probe Compensation

3. Press “AUTO” to show the 1 kHz frequency and about 3V peak-

peak square wave in couple seconds.

Figure 2.4 – 3 Vpp Square Wave

4. Press “CH1” two times to turn off channel 1, Press“CH2” to

change screen into channel 2, reset the channel 2 as step 2 and

step 3.

PROBE

COMP

CH1
