BK Precision 2190D User Manual

53
+-

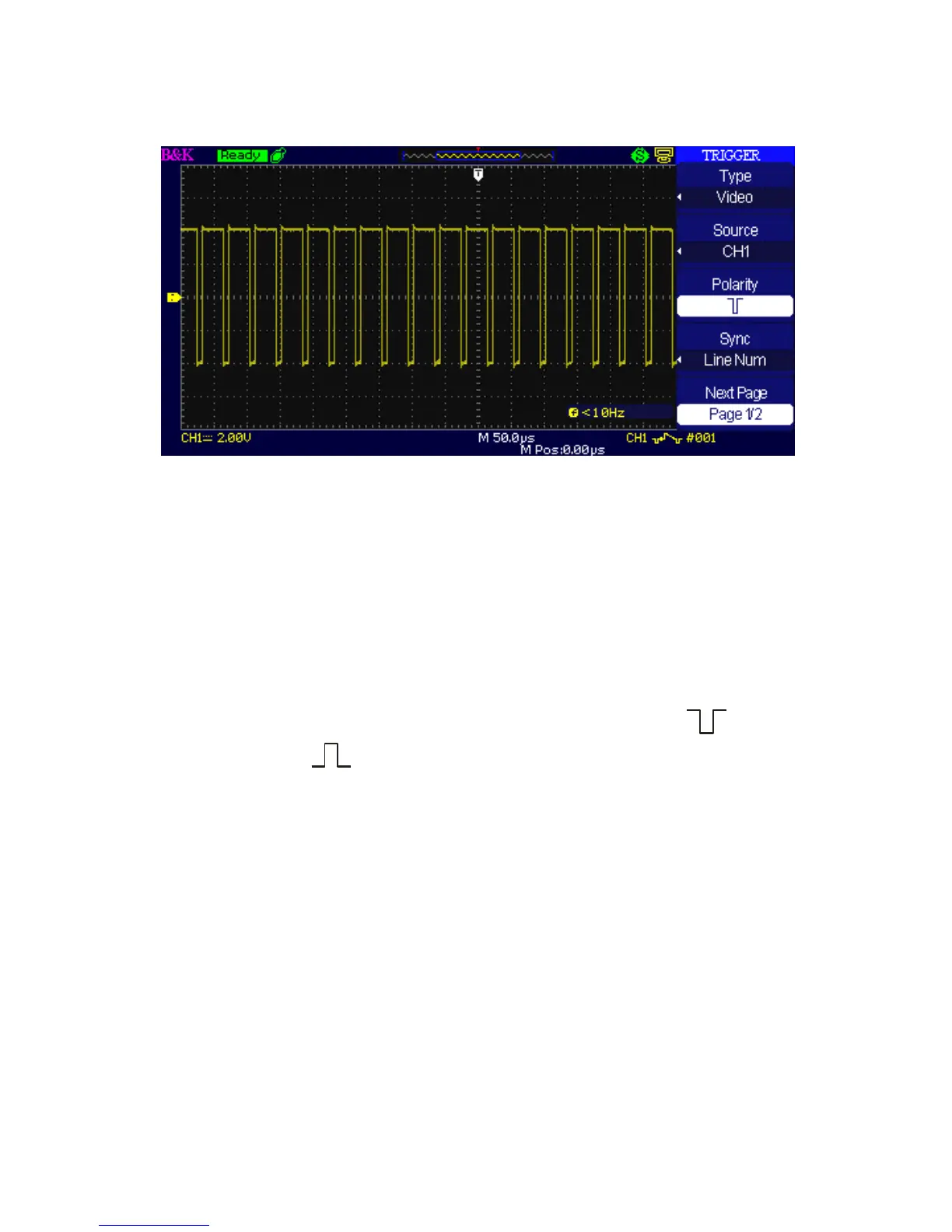

Figure 3.25 – Video Trigger Menu
Operating Instructions:
1. Set up Type
 Press the “TRIG MENU” button to display “Trigger” menu.
 Press the “Type” option button to select “Video”.
2. Set up Polarity
 Press the “Polarity” option button to select “ ” or “
”.
3. Set up Synchronization
 Press the “Sync” option button to select “All Lines”, “Line
Num”, “Odd Field”, and “Even Field”.
 If you select “Line Num”, you can turn the “Universal”
knob to set the appointed line number.
4. Set up Standard
 Press the “Next Page - Page 2/2” option
 Press the “Standard” option button to select
“PAL/SECAM” or “NTSC”.
