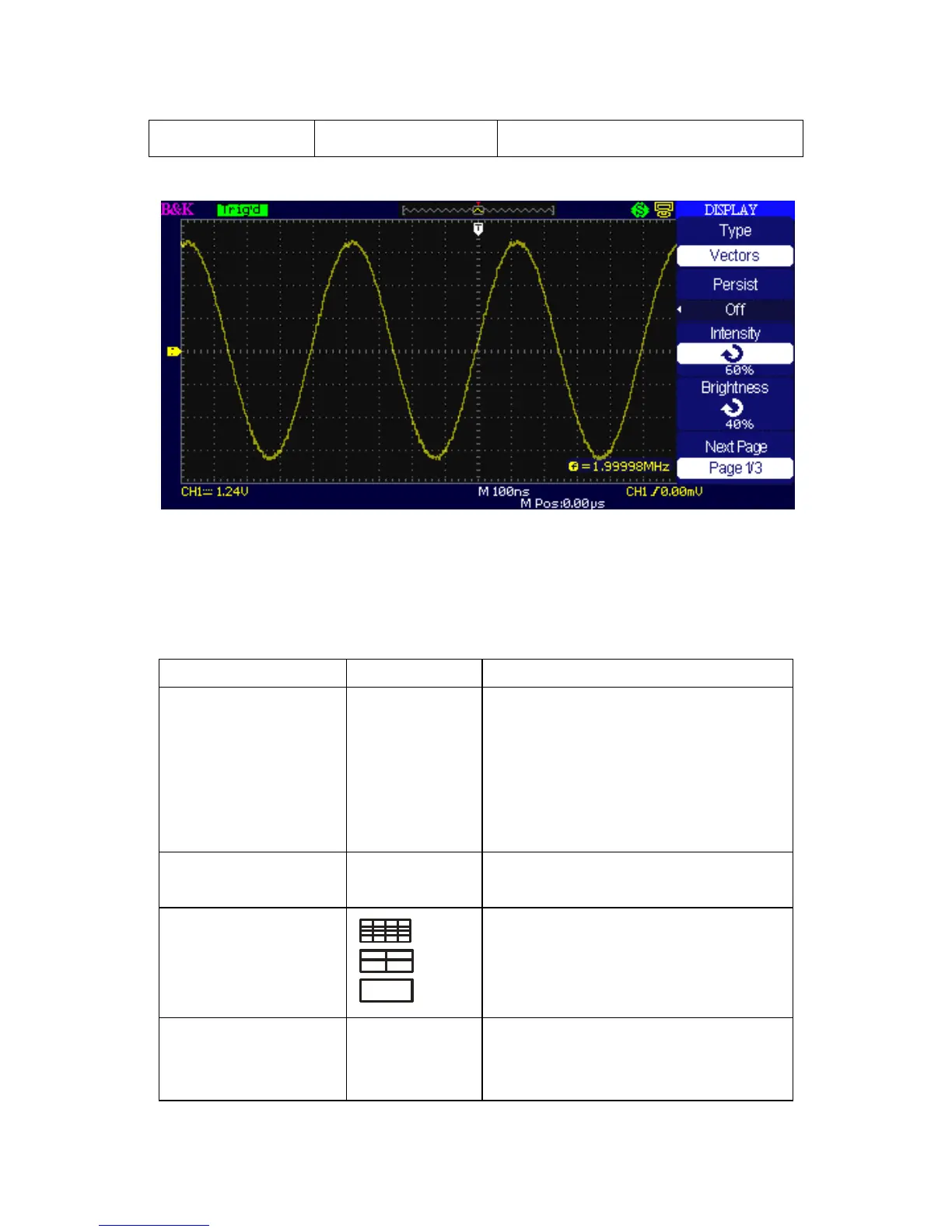

Figure 3.35 – Display Menu 1
Table 3.33 – Display System Menu 2
Option
Setting
Description
Format
YT
XY
YT format displays the vertical
voltage in relation to time
(horizontal scale). XY format
displays a dot each time a sample
is acquired on channel 1 and
channel 2
Screen
Normal
Inverted
Set to normal mode.
Set to invert color display mode.
Grid
Display grids and axes on the
screen.
Turn off the grids.
Turn off the grids and axes.
Menu Display
2sec
5sec
10sec
Set menu display time on screen.
