Solo Input
Quand le bouton Solo Input est activé sur le panneau avant du Blackmagic MultiView 16, utilisez ce
bouton pour savoir quelle entrée est affichée en plein écran. Cliquez sur le bouton Solo Input dans
le panneau Destination du Videohub Control, puis cliquez sur une entrée dans le panneau Sources.
Audio Input
Sur les modèles Blackmagic MultiView 16 et Blackmagic MultiView 4, vous pouvez utiliser le bouton
Audio Input au sein du logiciel Videohub Control pour choisir quelle entrée audio SDI est routée
vers la sortie multivue. Cliquez sur le bouton Audio Input dans le panneau Destination du Videohub
Control, puis cliquez sur une entrée dans le panneau Sources pour router automatiquement cette
entrée audio vers la sortie multivue.

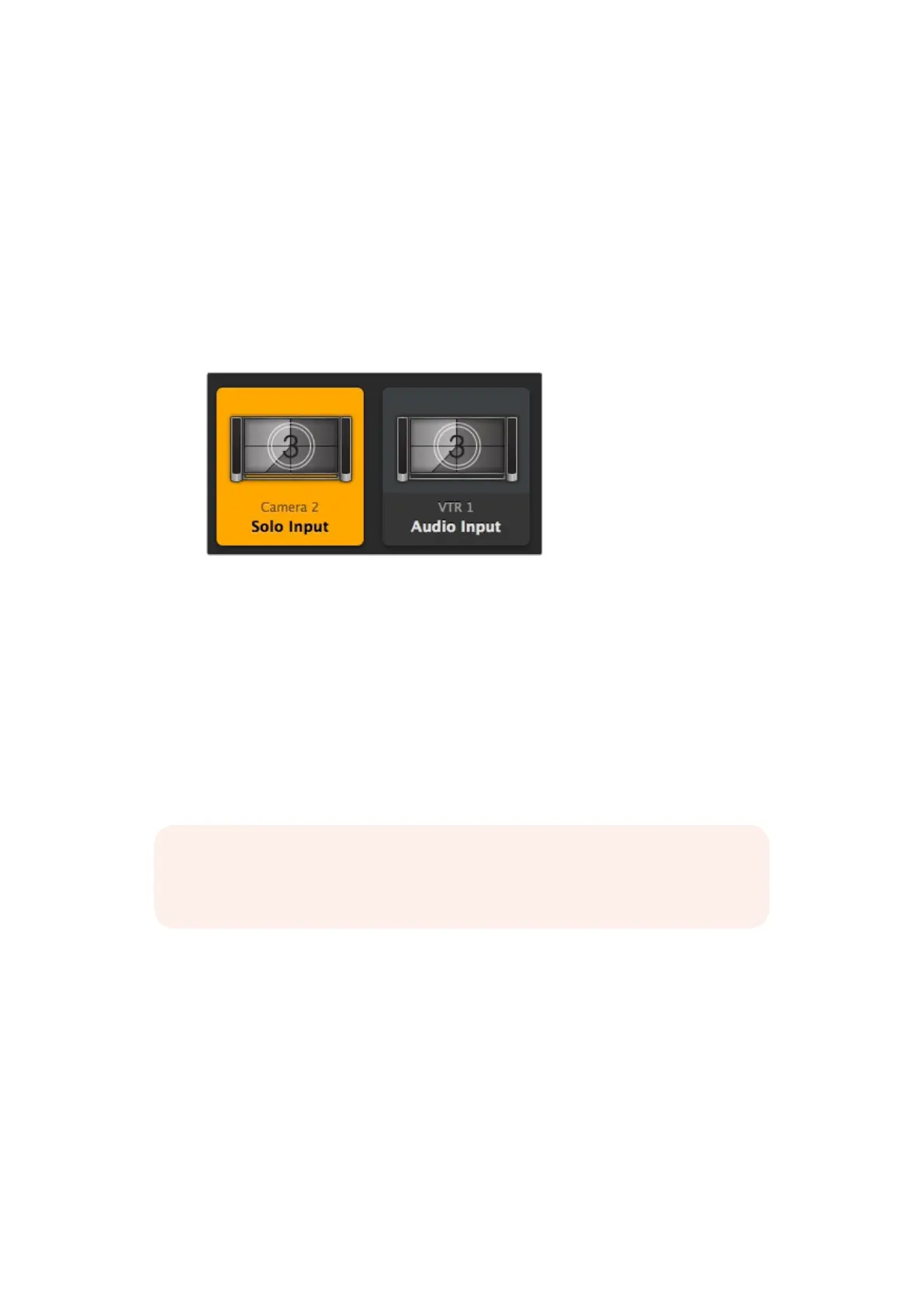

Les boutons Solo Input et Audio Input vous permettent de
modifier ces paramètres à l'aide du Videohub Control.
Developer Information
Blackmagic Videohub Ethernet Protocol v2.3
Summary
Your Blackmagic MultiView is compatible with the Blackmagic Videohub Ethernet Protocol. It is text
based and is accessed by connecting to your Blackmagic MultiView’s IP address and TCPport 9990.
The multi view sends information in blocks which each have an identifying header in all caps,
followed by a full colon. A block spans multiple lines and is terminated by a blank line. Each line in
the protocol is terminated by a newline character.
Lines sent to the Blackmagic MultiView 16 can be terminated with line feed, carriage return or both.
Upon connection, the multi view sends a complete dump of the state of the device. After the initial
status dump, status updates are sent every time the multi view status changes.
To be resilient to future protocol changes, clients should ignore blocks they do not recognize, up to
the trailing blank line. Within existing blocks, clients should ignore lines they do not recognize.
NOTE Controlling your MultiView via Ethernet is available on both models, however
most features are relevant to Blackmagic MultiView 16. On Blackmagic MultiView 4, you
can change the source for the Multi View audio.
106106Informations pour les développeurs
