Controlling Blackmagic MultiView using
BlackmagicVideohub Control Software
When you have Blackmagic MultiView 16 connected to a network, you can use Blackmagic
Videohub Control on a Mac or Windows computer to route Blackmagic MultiView 16’s
videoinputs to different views within your multi view layout. Your Blackmagic MultiView’s
SDIinputs appear as pushbuttons within the ‘sources’ panel, while the views appear as
pushbuttons within the ‘destinations’ panel. The Videohub Control application is part of the
Videohub software installer which can be downloaded from the Blackmagic Design support
center at www.blackmagicdesign.com/support.
Select your MultiView 16
After launching the Videohub Control software, click on the gear icon to open the ‘settings’ pop
up menu, and choose “select Videohub”. Select your Blackmagic MultiView 16’s name from the
list of connected devices.
If your inputs are labelled, the names you assigned will appear within the Videohub Control
software. If they are not labelled they will display as Input 1, Input 2, Input 3, etc.

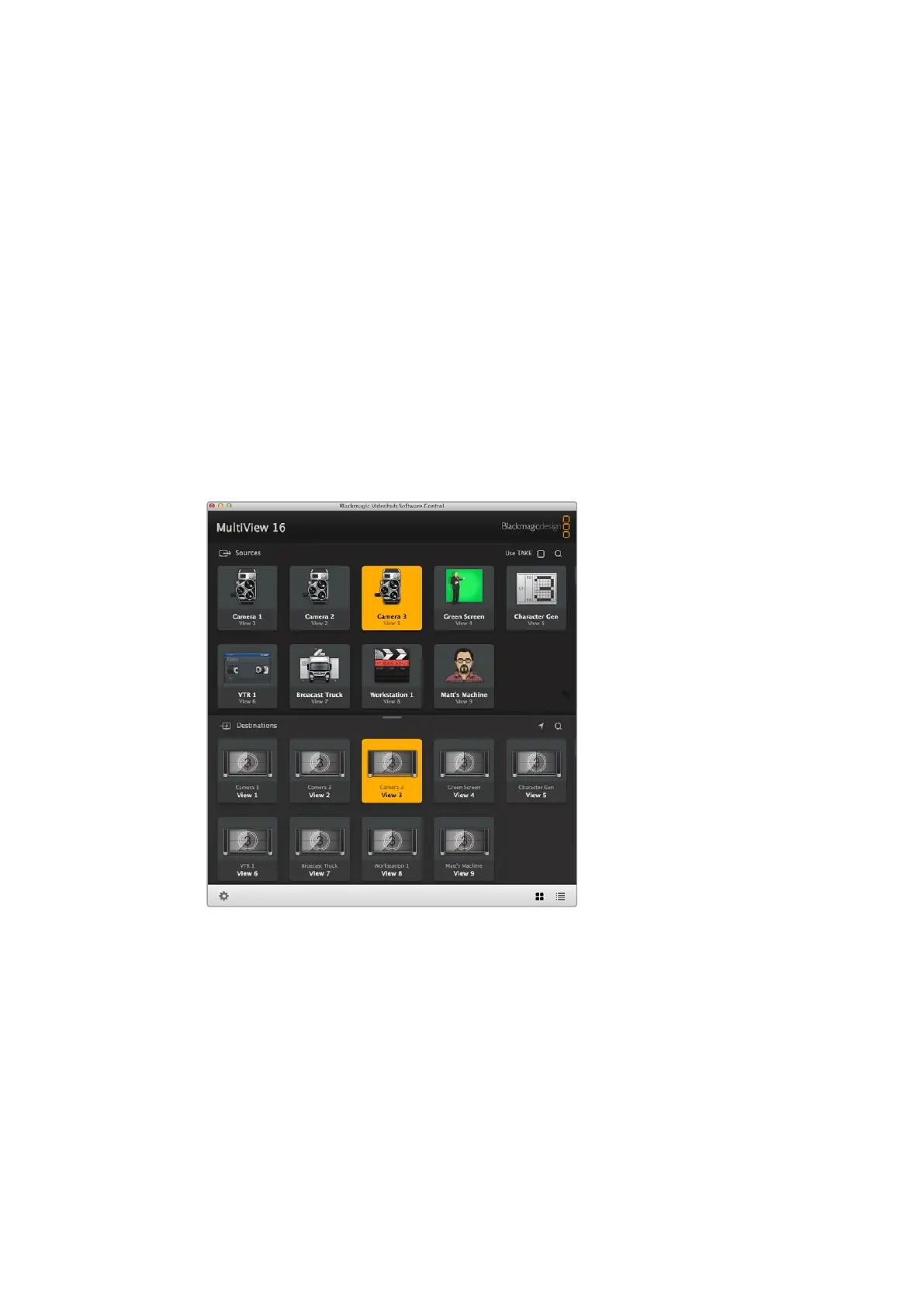

You can use Blackmagic Videohub Control to route
BlackmagicMultiView 16’s sources to different views.
Viewing your Inputs
To see which of your Blackmagic MultiView 16’s video inputs is routed to a particular view, click
a view pushbutton in the destinations panel. The destination, or view, button will illuminate. In
the ‘sources’ panel, the pushbutton of the routed video input will also illuminate, making it clear
which input, or source, is routed to the view.
Routing Inputs to Views
To route a video input to a view, click a view pushbutton from the destination panel, then click
an input pushbutton in the sources panel to immediately route that input to the view.
2929Using Videohub Control Software
