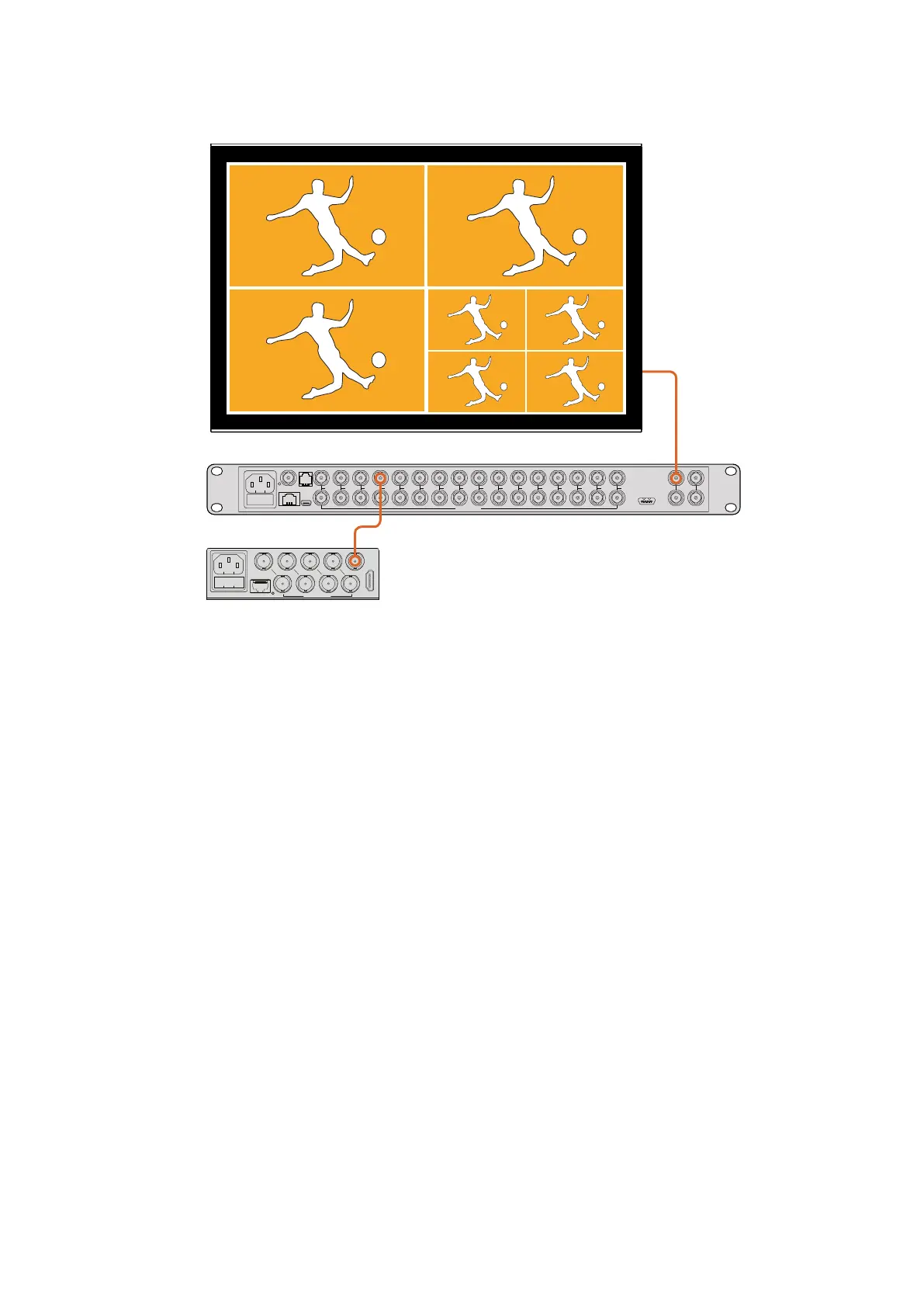

By routing the output of one MultiView into the input of another,
you can add more views to your multi view layout.
That’s all there is to getting started. Keep reading the next sections of the manual to find
moreinformation about how to get the most from your Blackmagic MultiView, such as changing
settings, naming your views and more.
Changing Settings
There are several ways you can change settings on your Blackmagic MultiView.
 Front Control Panel - Blackmagic MultiView 16 has a built in control panel and LCD so
you can easily change settings from the front of the unit.
 Switches - The switches on Blackmagic MultiView 4’s front panel let you change
settings instantly using the tip of a pen. Access the switches by opening the rubber dust
cover on the front panel. A switch settings legend is printed on the base of the unit so
you can easily see the settings for each switch.
 Teranex Mini Smart Panel - You can replace the original front panel of Blackmagic
MultiVIew 4 with an optional Teranex Mini Smart Panel so you can use the built in
control buttons, rotary knob and LCD. This functions in a very similar way to the front
control panel of Blackmagic MultiView 16 and gives you easy and intuitive local control.
 Blackmagic MultiView Setup - The setup software lets you change settings via USB
or Ethernet using your computer. Refer to the ‘Blackmagic MultiView Setup’ section for
more information.
 Videohub Control software - When your Blackmagic MultiView is connected to a
network, you can use Blackmagic Videohub Control software to route sources, change
views, and select the audio input source. Refer to the ‘Using Videohub Software
Control’ section for more information.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
SOLO
SET
SRC
VIEW
MENU
Blackmagic MultiView 16
ETHERNET SD/HD/3G/6G-SDI IN
REF IN
LOOP OUT
IN
HDMI OUT 6G-SDI OUT HD-SDI OUT
RS-422
CNTRL
USB
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
4
MultiView 4
Blackmagic
31
2
ETHERNET
HDMI OUT
HD
UHD
OUT
SD/HD/3G/6G-SDI IN
ETHERNET SD/HD/3G/6G-SDI IN
REF IN
LOOP OUT
IN
HDMI OUT 6G-SDI OUT HD-SDI OUT
RSS-422
CNTRL
USB
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
4
31
2
ETHERNET
HDMI OUT
HD
UHD
OUT
SD/HD/3G/6G-SDI IN
99Changing Settings
