Blackmagicdesign Blackmagic MultiView 4 User Manual

솔로 입력
Blackmagic MultiView 16
의 전면 패널에 있는
Solo
버튼이 활성화되면 전체 화면에 사용할
입력을
Solo Input
푸시버튼으로 선택합니다
. Videohub Control
의
Destination
패널에서
Solo
Input
푸시버튼을 클릭한 뒤
, Source
패널에서 입력 푸시버튼을 클릭하기만 하면 됩니다
.
오디오 입력
Blackmagic MultiView 16
과
Blackmagic MultiView 4
를 사용할 시
Videohub Control
소프트웨어의
Audio Input
푸시버튼을 사용하여 멀티뷰 출력에 어떤
SDI
입력의 오디오를
라우팅할 것인지 결정합니다
. Videohub Control
의
Destination
패널에서
Audio Input
푸시버튼을
클릭한 뒤
, Source
패널에서 입력 푸시버튼을 클릭하기만 하면 선택한 입력의 오디오가 멀티뷰
출력에 바로 라우팅 됩니다
.

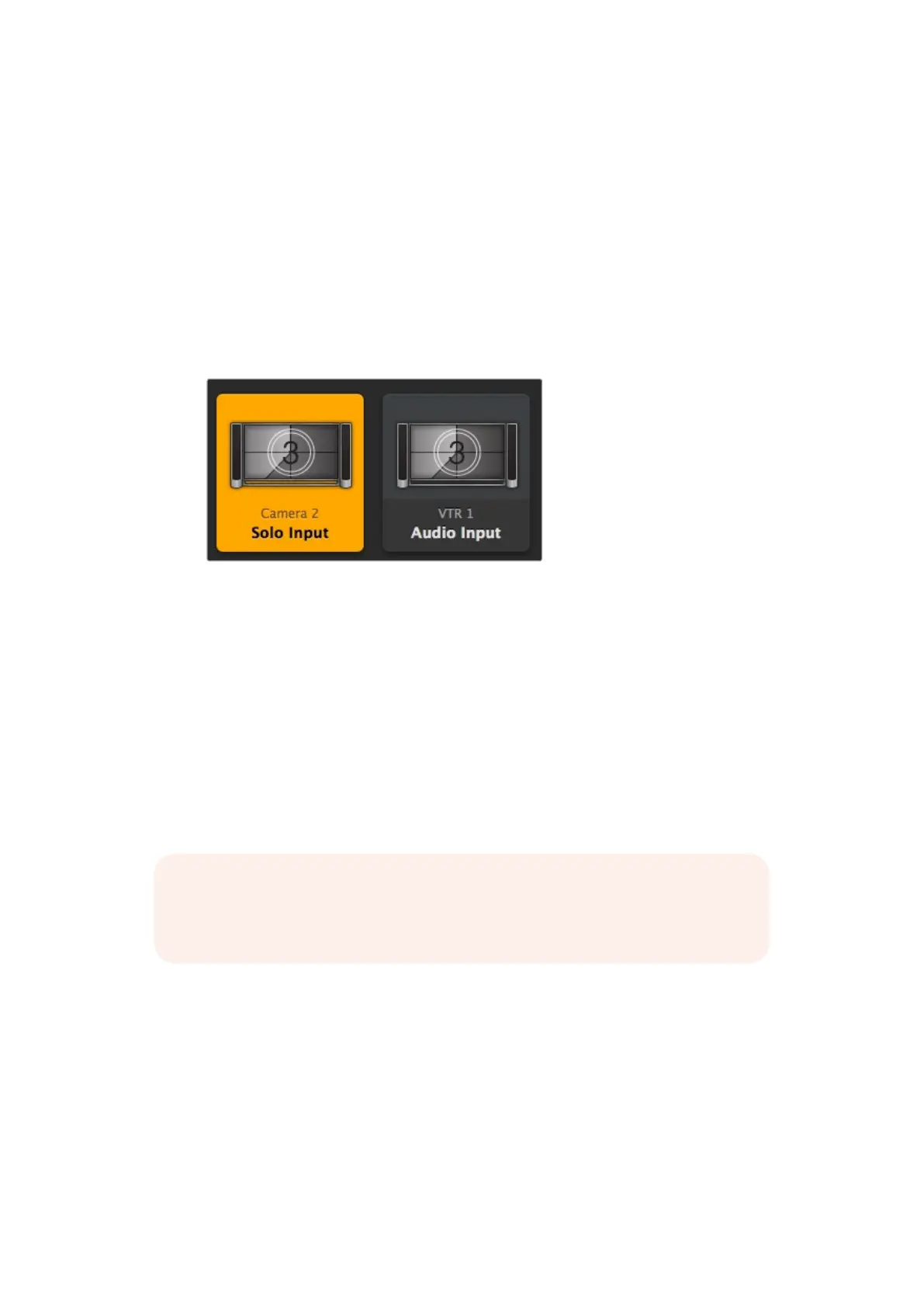

Videohub Control
의
Solo Input
과
Audio Input
푸시버튼으로 이러한 설정을 변경할 수 있습니다
.
Developer Information
Blackmagic Videohub Ethernet Protocol v2.3
Summary
Your Blackmagic MultiView is compatible with the Blackmagic Videohub Ethernet Protocol. It is
text based and is accessed by connecting to your Blackmagic MultiView’s IP address and
TCPport 9990.
The multi view sends information in blocks which each have an identifying header in all caps,
followed by a full colon. A block spans multiple lines and is terminated by a blank line. Each line
in the protocol is terminated by a newline character.
Lines sent to the Blackmagic MultiView 16 can be terminated with line feed, carriage
return or both.
Upon connection, the multi view sends a complete dump of the state of the device. After the
initial status dump, status updates are sent every time the multi view status changes.
To be resilient to future protocol changes, clients should ignore blocks they do not recognize,
up to the trailing blank line. Within existing blocks, clients should ignore lines they do not
recognize.
NOTE Controlling your MultiView via Ethernet is available on both models,
however, most features are relevant to Blackmagic MultiView 16. On Blackmagic
MultiView 4, you can change the source for the Multi View audio.
258258
