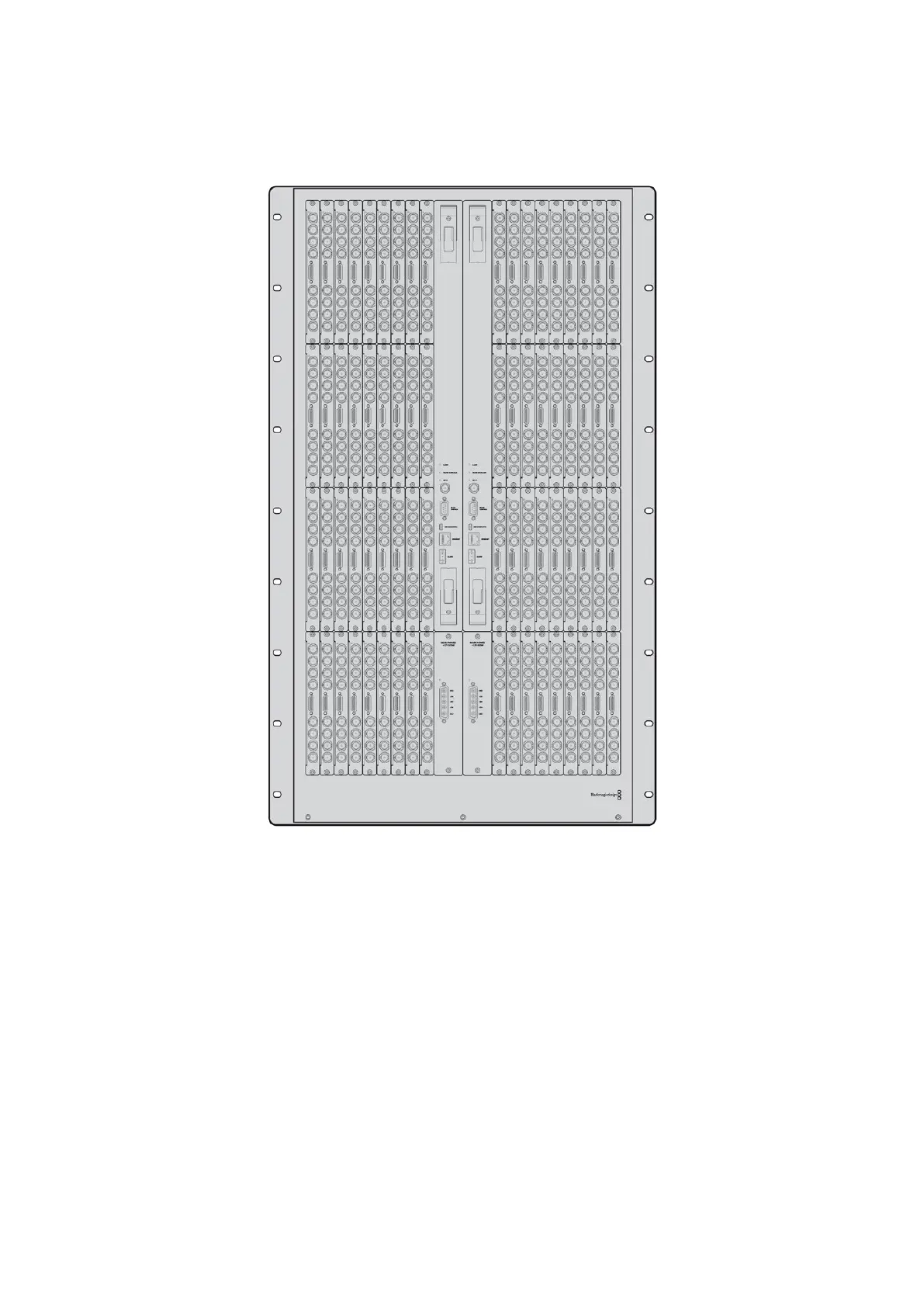

Universal Videohub288
Universal Videohub288 Crosspoint Card
This module contains the crosspoint processor for switching video routes and changing deck
control ports. Ethernet, USB and serial ports are located on the card for router control.
A Reference input is located on the card for connection to a tri-level sync or black burst
genlock signal.
An Alarm light will illuminate on the card if user intervention is required, e.g., if inadequate
cooling has caused Videohub to overheat. Alarm notification is supplied by the
GPI(GeneralPurpose Interface) output to other devices.
A Power Overload light will illuminate on the card if inadequate power is being supplied to
theunit for the number of cards installed.
You will need a number 01 size Pozidriv screwdriver to install the Universal Videohub288
Crosspoint card.
