Blodgett COS-6 - Optional Cook & Hold

Operation
17
Optional Cook & Hold
1
4
2
3
13
5
15
14
16
17
6
9
12
7
8
10
11

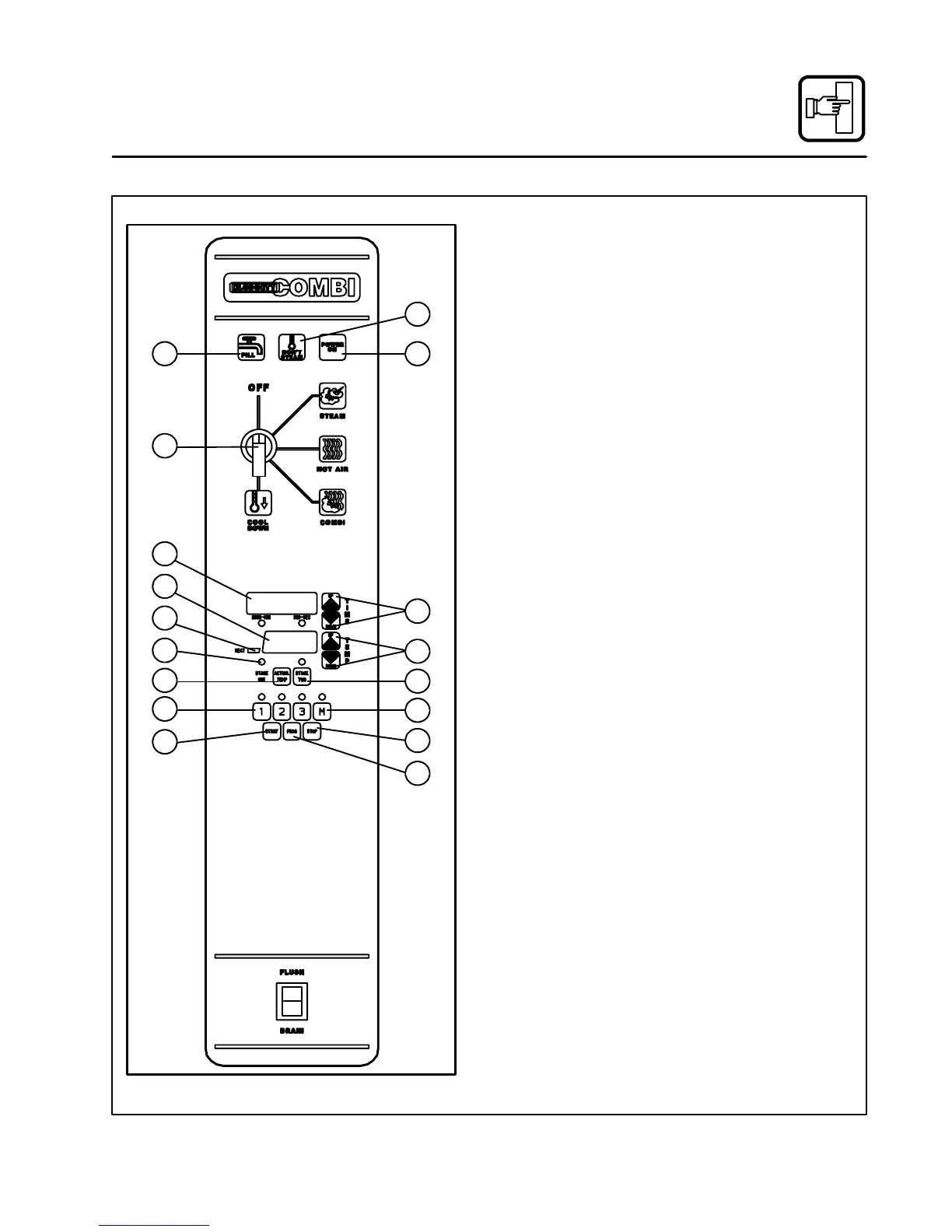

Figure 13
CONTROLS IDENTIFICATION
1. LOWWATERFILLLIGHT --- when litindicates
low water level in the steam generator.
2. DON’T STEAM LIGHT --- when lit indicates
the unit is too hot to operate in the steam
mode.
3. POWER ON LIGHT --- when lit indicatespow-
er to the unit is turned on.
4. MODE SELECTOR SWITCH --- controls pow-
er to the oven and selection of steam, hot air
and combi modes. The convection fan runs
withthe sw itch insteam, hotair,combiorcool
down.
5. TIME DISPLAY --- gives cook time.
6. TIME ARROW KEYS --- press to enter cook
time from 00:00 to 99:59.
7. TEMPERATUREDISPLAY --- gives cook tem-
perature.
8. HEAT LIGHT --- when lit indicates hot air or
steam is in operation.
9. TEMPERATURE ARROW KEYS --- press to
enter cook temperature from 120---212_F
(48 --- 100_C) for ste am and 140---500_F
(60 --- 260_C) for hot air/combi.
10. STAGE ONE LED --- when lit indicates opera-
tion or programming of stage one for the cur-
rent product. Cook cycles may contain one or
two different sta ges.
11. ACTUALTEMPKEY --- presstodisplayactual
oven/steamer temperature
12. STAGE TWO KEY --- press to enter stage two
cook time and temperature.
13. PRODUCT KEYS --- three programmabl ekeys.
14. MANU AL PRODUC T KEY --- defaul t product
keyusedfor manualand programmedcooking.
15. START KEY --- press to b egin a cook cycle.
16. STOP KEY --- press to s ilence audible alarms
and pause or cancel cook cycles.
17. PROGRAM KEY --- press to enter program -
ming mode and save programmed settings.
18. FLUSH/DRAIN SWITCH --- Used to flush/
drain the steam generator for decalcification.
