EP600 Energy Storage System User Manual
53

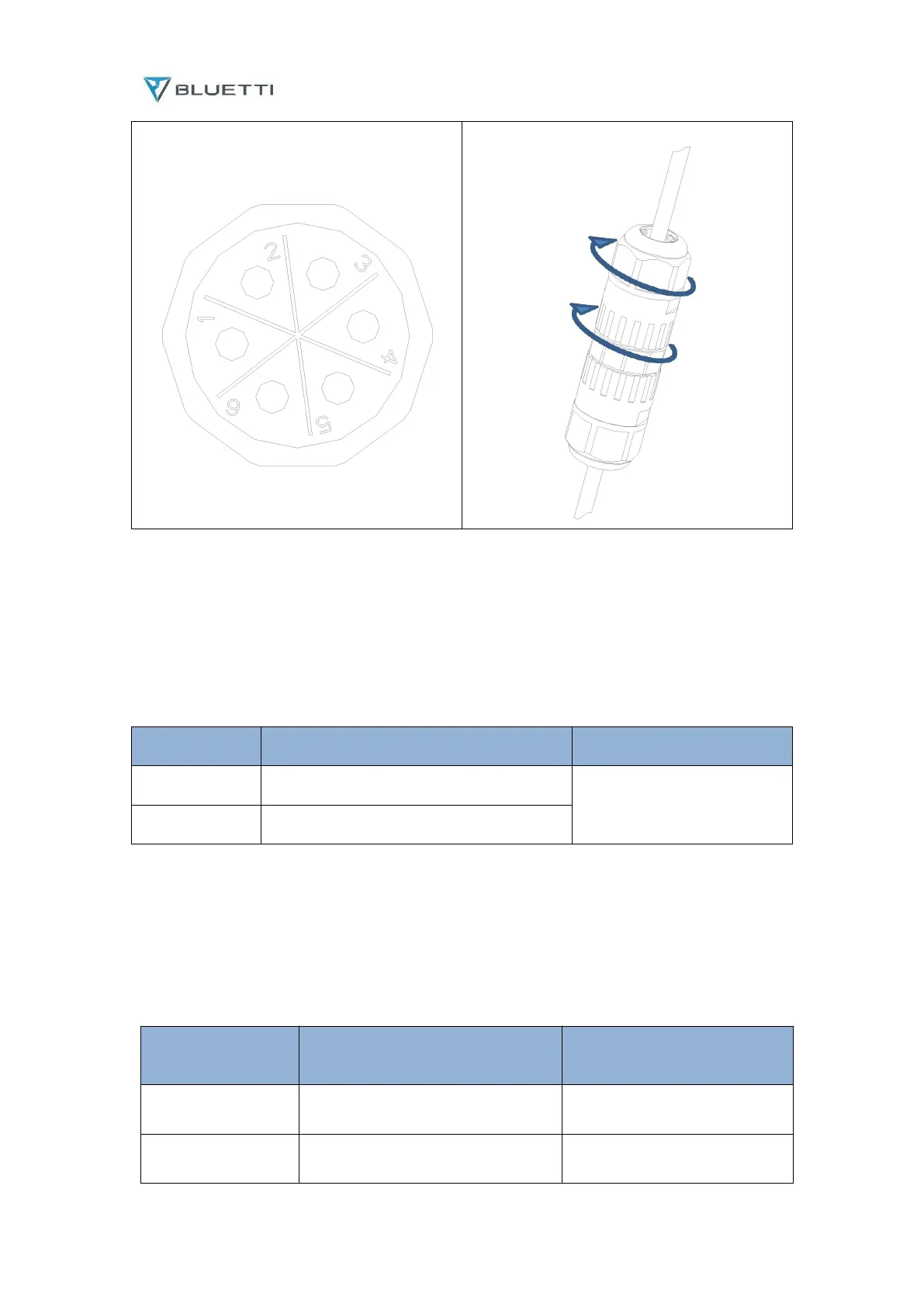

Figure 6-8 Logical Interface
6.8.3 Link Port 1 & 2 Interface Link Port 1、2
Table 6-6
Interface
Interface function
Remark
Link Port 1
Connect the IOT controller
For details, please refer to 6.1
complete machine connection
Link Port 2
Connect the battery pack
6.8.4 COM-Electricity Meter Communication Interface
For electricity meter communication:
Table 6-7 Interface Description
485 electricity meter
communication port
Interface function
Wiring method
A
（
1
）
A: RS485 differential signal +
Connect meter A2
B（2）
B: RS485 differential signal-
Connect meter B2
