EP600 Energy Storage System User Manual
For details of the meter connection, please refer to the meter manual.

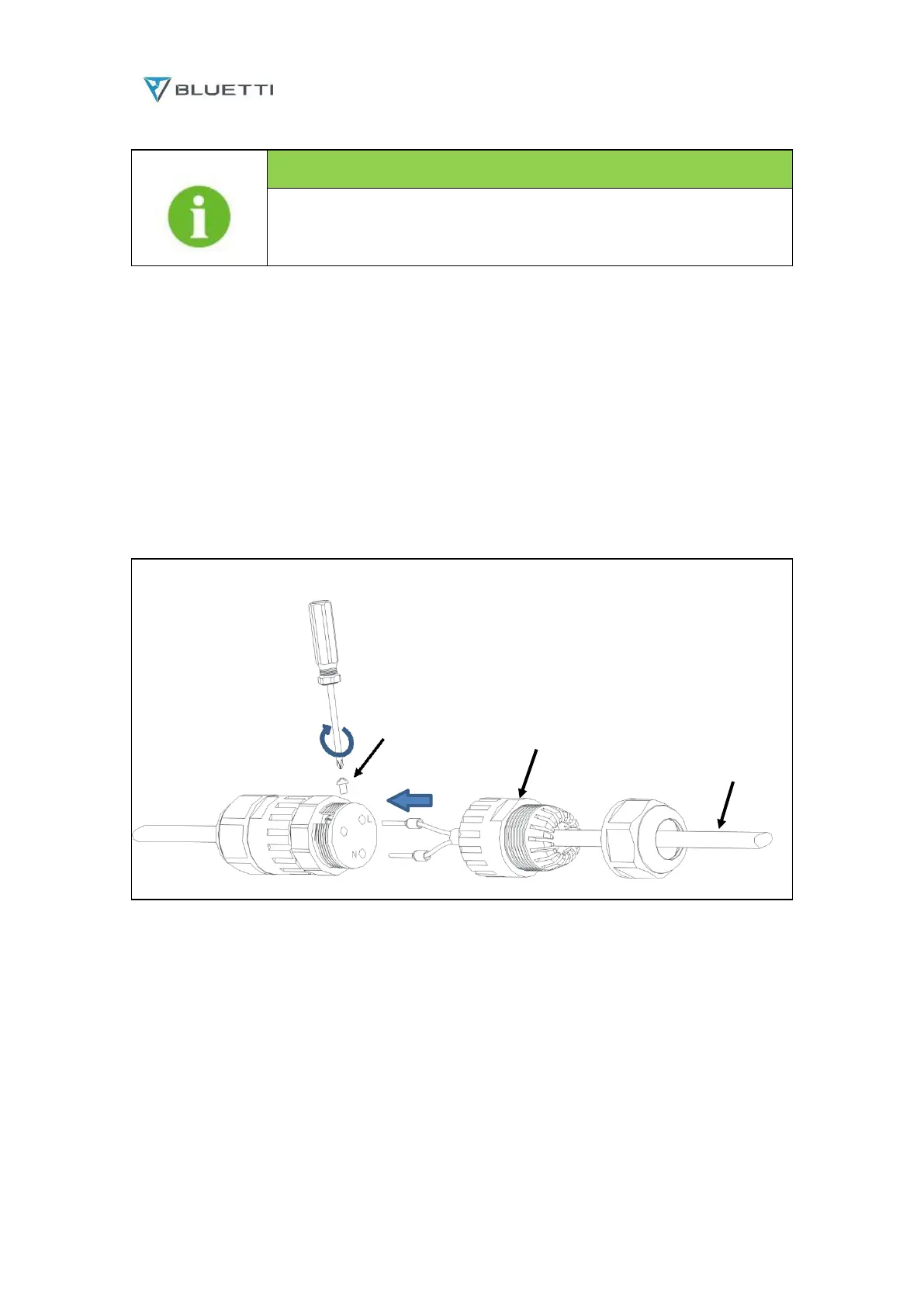

Operation steps.
Step1: Remove the unconnected end of the COM connector adapter counterclockwise.
Step2: Thread the extension cable into the connector shell and install the corresponding signal cable
into the connector pins.
Step3: Tighten the screws of the connector with a screwdriver.
Step4: Gently pull the connection cable of 2 pins to determine whether the connection is tight;
Step5
：
Tighten the connector shell and nut clockwise.
Lock the screws
Waterproof joint shell Signal extension cable
To Next Page
