Fa

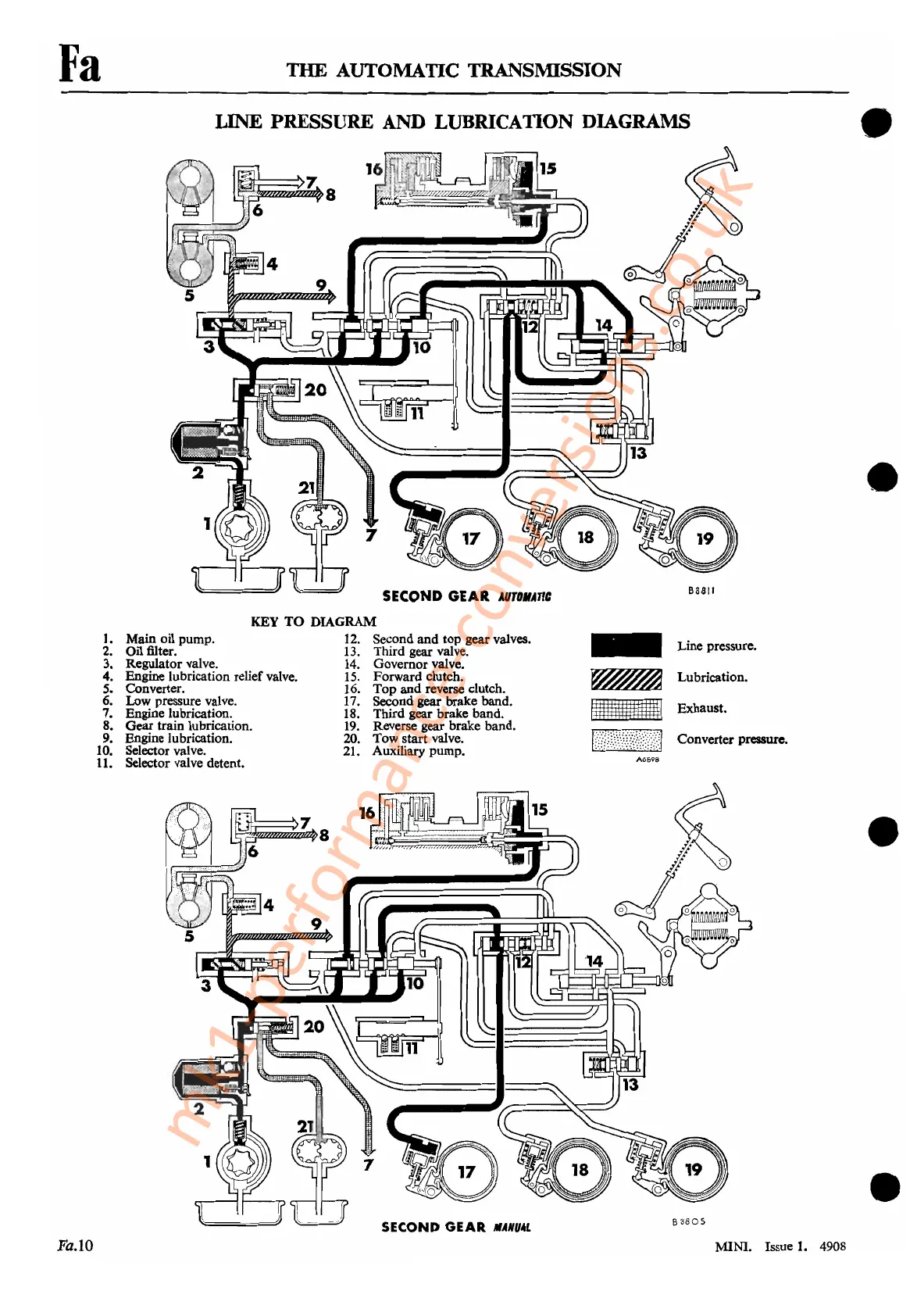

THE AUTOMATIC TRANSMISSION
LINE PRESSURE AND LUBRICATION DIAGRAMS
•
SECOND GEAR AUTO.Ant:
68811
•
•
•
88805
MINI. Issue 1. 4908
_ Line pressure.
~ Lubrication.
mIIIRI Exhaust.
1\.?:!t\\J\:i(:·{.:l Converter pressure.
AoB98
SECOND GEAR MANUAL
KEY TO DIAGRAM
12. Second and top gear valves.
13. Third
gear valve.
14. Governor valve.
15.
Forward clutch.
16.
Top and reverse clutch.
17. Second gear brake
band.
18. Third gear brake band.
19. Reverse gear brake band.
20. Tow start valve.
21. Auxiliary pump.
1.
Main oil pump.
2. Oil filter.
3. Regulator valve.
4. Engine lubrication relief valve.
S. Converter.
6.
Low pressure valve.
7. Engine lubrication.
8.
Gear train lubrication.
9. Engine lubrication.
10. Selector valve.
11. Selector valve detente
Fa.IO
