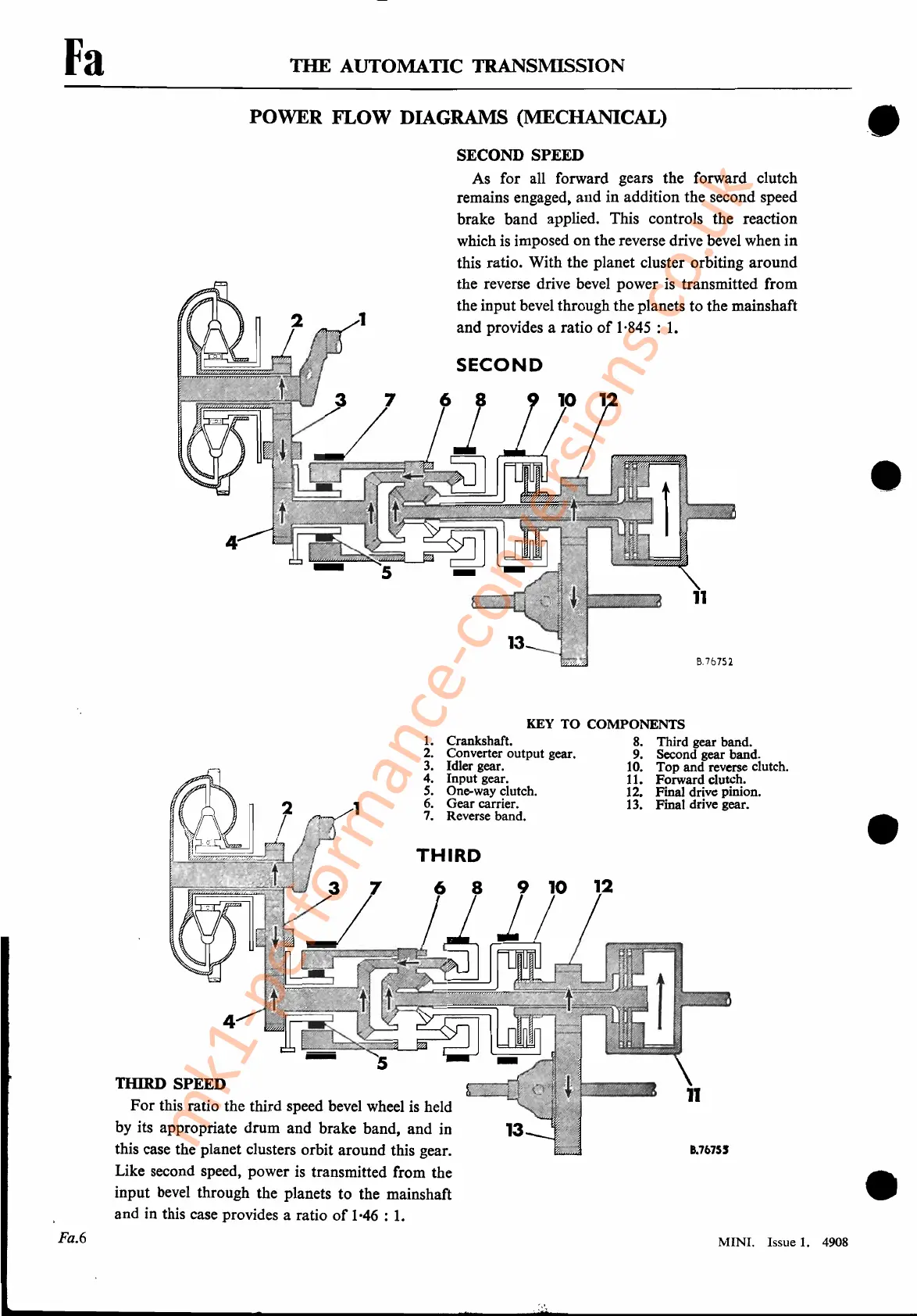

POWER FLOW DIAGRAMS (MECHANICAL)
SECOND SPEED
As for all forward gears the forward clutch
remains engaged. and in addition the second speed
brake band applied. This controls the reaction
which
is
imposed on the reverse drive bevel when
in
this ratio. With the planet cluster orbiting around
the reverse drive bevel power is transmitted from
the input bevel through the planets to the mainshaft
and provides a ratio
of
1·845
:
1.
SECOND
B,76752
-e
•
1.
Crankshaft.
2.
Converter output gear.
3.
Idler gear.
4.
Input gear.
S.
One-way clutch.
6.
Gear carrier.
7.
Reverse band.
Fa.6
THIRD SPEED
For
this ratio the third speed bevel wheel
is
held
by its appropriate drum and brake band, and in
this case the planet clusters orbit around this gear.
Like second speed, power
is
transmitted from the
input bevel through the planets to the mainshaft
and in this case provides a ratio
of
1·46
:
1.
KEY
TO
COMPONENTS
8.
Third gear band.
9.
Second gear band.
10.
Top and reverse clutch.
11.
Forward clutch.
12. Final drive pinion.
13.
Final drive gear.
8.76755
MINI. Issue
1.
4908
•
•
