BMW Mini-Cooper 1968 - Page 147

=
->
DJ.. __ ~.A6166
Fig. H.ll
The nose rises in response to upward motion of [he rear wheel
Fig. H.IO
The tail rises in response to upward motion of the front wheel
7
8
A844SA
6. Damper valve.
7. Fluid separating member.
8. Rubber diaphragm.
9. Tapered cylinder.
1. Interconnecting pipe.
2. Rubber spring.
3. Damper bleed.
4. Butyl liner.
5. Tapered piston.

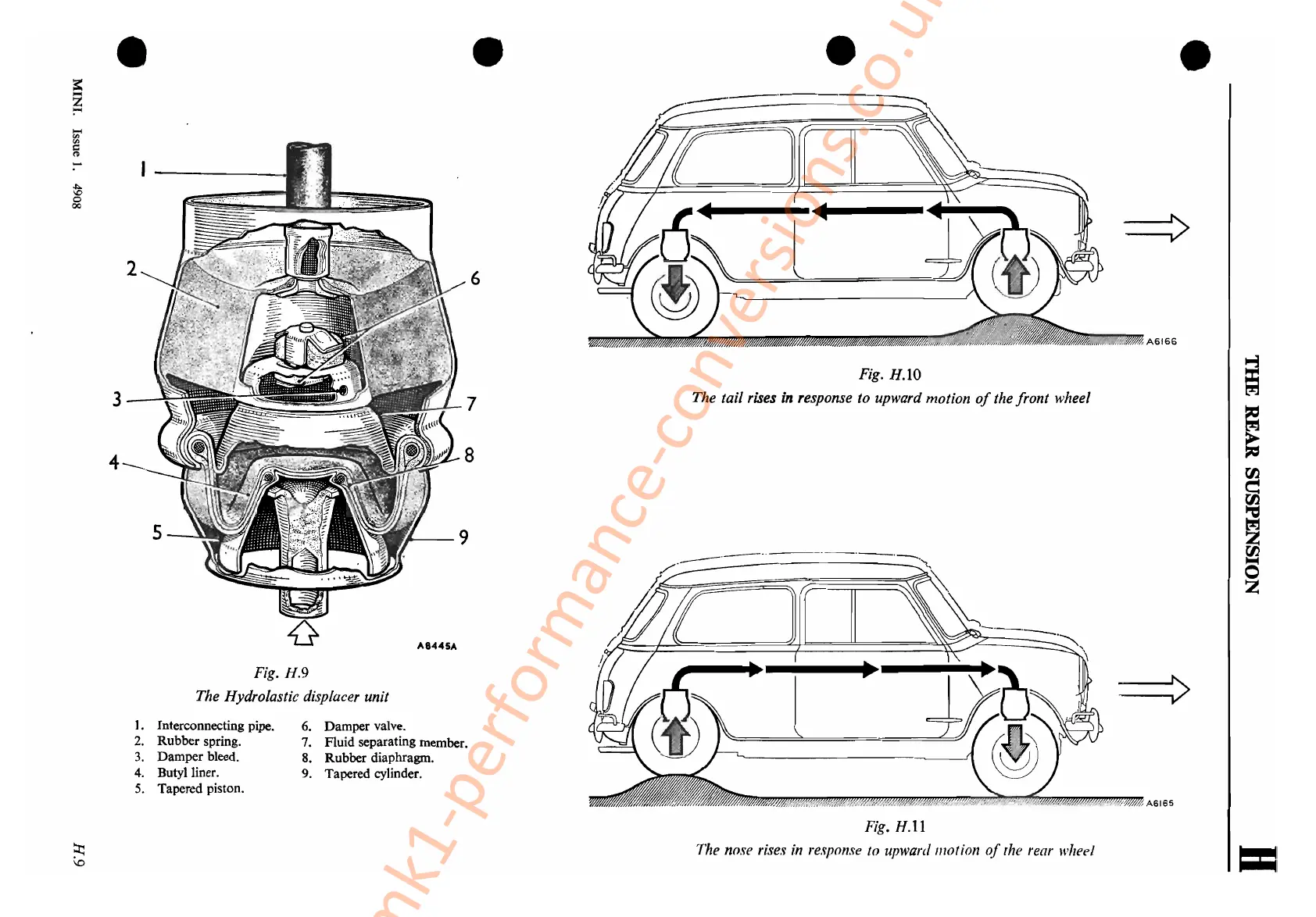

Fig. H.9
The Hydrolastic displacer unit
