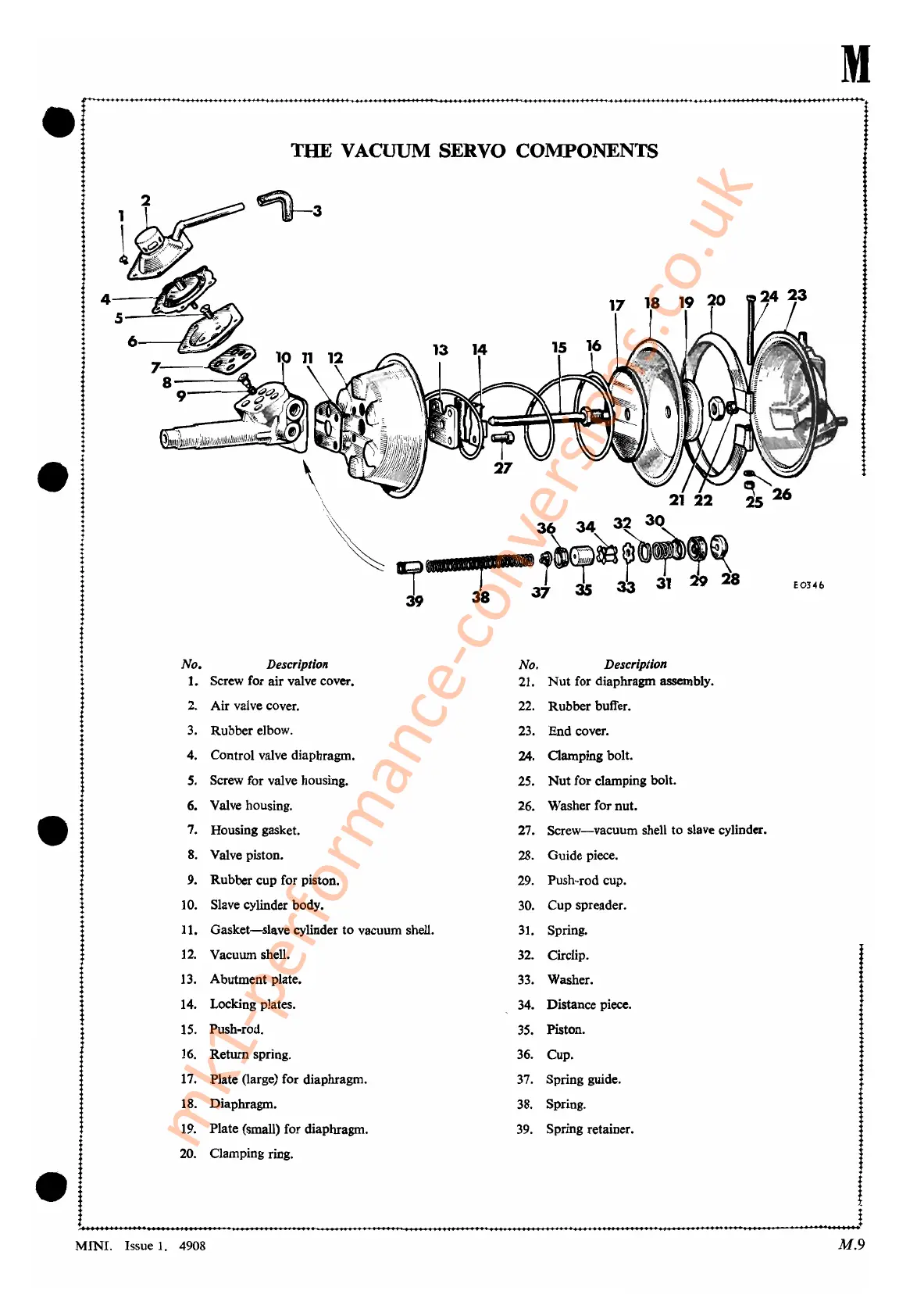

I THE VACUUM SERVO COMPONENTS
E034b
~3
No.
Description
No.
Description
1.
Screw for air valve cover.
21.
Nut for diaphragm assembly.
2.
Air valve cover.
22.
Rubber buffer.
3.
Rubber elbow.
23.
End cover.
4.
Control valve diaphragm.
24.
Qamping bolt.
s.
Screw for valve housing.
25.
Nut for clamping bolt.
6•
Valve housing.
26.
Washer for nut.
7.
Housing gasket.
27.
Screw-vacuum shell to slave cylinder.
8.
Valve piston.
28.
Guide piece.
9.
Rubber cup for piston.
29.
Push-rod cup.
10.
Slave cylinder body.
30.
Cup spreader.
11.
Gasket-slave cylinder to vacuum shell.
31.
Spring.
12.
Vacuum shell.
32.
Circlip.
13.
Abutment plate.
33.
Washer.
I
14.
Locking plates.
34.
Distance piece.
15.
Push-rod.
35.
Piston.
16.
Return spring.
36.
Cup.
17.
Plate Oarge) for diaphragm.
37.
Spring guide.
18.
Diaphragm.
38.
Spring.
19.
Plate (small) for diaphragm.
39.
Spring retainer.
20.
Clamping ring.
I
i
" .. H" III
I ,t 111+
