N
•
Kky
TO

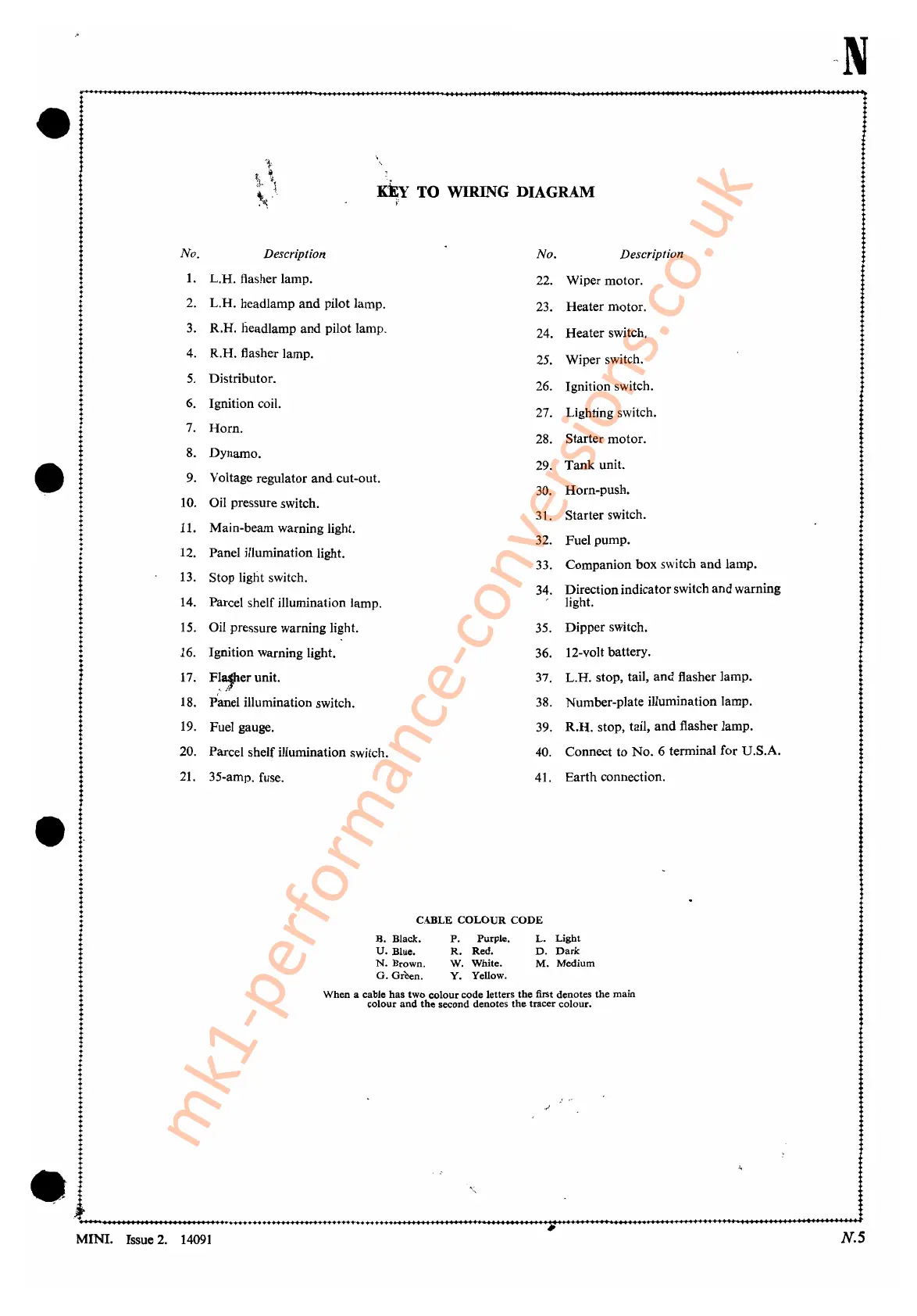

WIRING DIAGRAM
No.
Description
No.
Description
1.
L.H.
flasher lamp.
22.
Wiper
motor.
2.
L.H.
headlamp
and
pilot lamp.
23.
Heater
motor.
3.
R.H.
headlamp
and
pilot lamp.
24.
Heater
switch.
4.
R.H.
flasher lamp.
25.
Wiper switch.
5.
Distributor.
26.
Ignition switch.
6.
Ignition coil.
27.
Lighting switch.
7.
Horn.
28.
Starter
motor.
8.
Dynamo.
•
29
.
Tank
unit.
9.
Voltage regulator and. cut-out.
30.
Horn-push.
10.
Oil pressure switch.
!
31.
Starter
switch.
11.
Main-beam warning light.
32.
Fuel
pump.
.
12.
Panel illumination light.
!
33.
Companion
box
switch
and
lamp.
I
13.
Stop
light switch.
34.
Direction
indicator
switch
and
warning
14.
Parcel shelf illumination lamp.
light.
!
15.
Oil pressure warning light.
35.
Dipper
switch.
16.
Ignition warning light.
36.
12-volt battery.
17.
Fla.f.her unit.
37.
L.H.
stop, tail,
and
flasher lamp.
"
If
18. Panel illumination switch.
38.
Number-plate illumination lamp.
19. Fuel gauge.
39.
R.H.
stop, tail,
and
flasher lamp.
20.
Parcel shelf illumination switch.
40.
Connect
to
No.
6 terminal
for
D.S.A.
21. 35-amp. fuse.
41.
Earth
connection.
CABLE
COLOUR
CODE
B. Black.
U.
Blue.
N.
Brown.
G.
Green.
P.
Purple.
R.
Red.
W. White.
Y. Yellow.
L.
Light
D.
Dark
M.
Medium
When a cable
has
two colour code letters
the
first denotes
the
main
colour
and
the
second denotes
the
tracer colour.
N.S
MINI.
Issue 2. 14091
