N

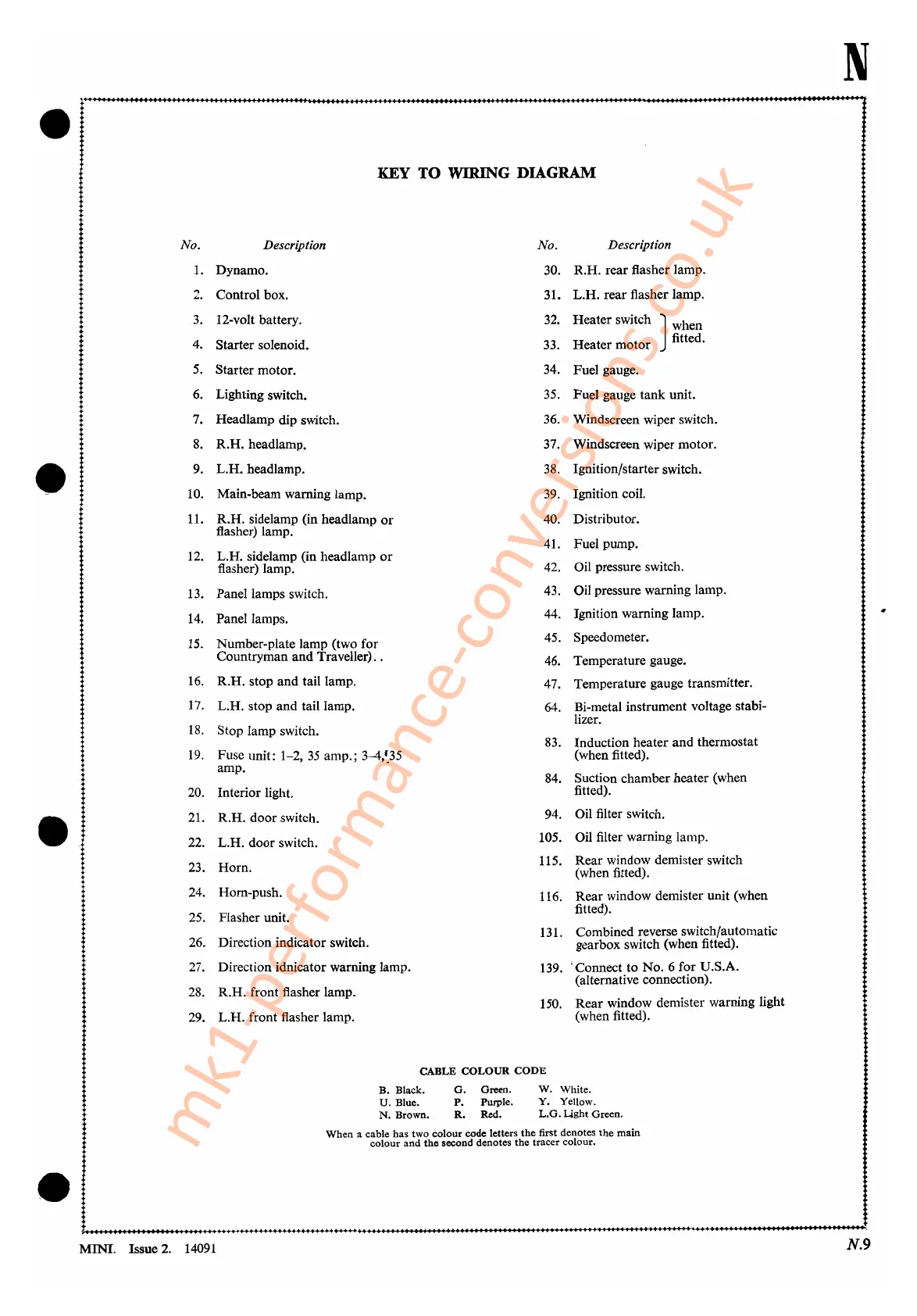

KEY TO WIRING DIAGRAM
No.
Description
No.
Description
l.
Dynamo.
30.
R.H. rear flasher lamp.
2.
Control box.
31.
L.H. rear flasher lamp.
3.
12-volt battery.
32. Heater switch
] when
4. Starter solenoid.
33.
Heater motor
fitted.
5.
Starter motor.
34.
Fuel gauge.
6.
Lighting switch.
35.
Fuel gauge tank unit.
7.
Headlamp dip switch.
36.
Windscreen wiper switch.
8. R.H. headlamp.
37.
Windscreen wiper motor.
9.
L.H. headlamp.
38.
Ignition/starter switch.
10.
Main-beam warning lamp.
39.
Ignition coil.
11.
R.H. sidelamp (in headlamp
or
40.
Distributor.
flasher) lamp.
41.
Fuel pump.
12.
L.H. sidelamp (in headlamp
or
flasher) lamp.
42.
Oil pressure switch.
13.
Panel lamps switch.
43.
Oil pressure warning lamp.
14.
Panel lamps.
44.
Ignition warning lamp.
15.
Number-plate lamp (two for
45.
Speedometer.
Countryman and Traveller)
..
46.
Temperature gauge.
16.
R.H. stop and tail lamp.
47.
Temperature gauge transmitter.
17.
L.H. stop and tail lamp.
64.
Bi-metal instrument voltage stabi-
lizer.
18.
Stop lamp switch.
83.
Induction heater
and
thermostat
19.
Fuse unit: 1-2,
35
amp.;
3-4,~35
(when fitted).
amp.
84.
Suction chamber heater (when
20.
Interior light.
fitted).
21.
R.H. door switch.
94.
Oil filter switch.
22.
L.H. door switch.
105.
Oil filter warning lamp.
23.
Horn.
115.
Rear window demister switch
(when fitted).
24.
Horn-push.
116.
Rear window demister unit (when
25.
Flasher unit.
fitted).
131.
Combined reverse switch/automatic
26.
Direction indicator switch.
gearbox switch (when fitted).
27.
Direction idnicator warning lamp.
139.
;Connect to No. 6 for
V.S.A.
(alternative connection).
28.
R.H. front flasher lamp.
150.
Rear window demister warning light
29.
L.H. front flasher lamp.
(when fitted).
CABLE
COLOUR
CODE
B. Black.
G.
Green. W. White.
U.
Blue.
P.
Purple.
Y.
Yellow.
N.
Brown.
R.
Red.
L.G.
Light Green.
When a cable
has
two colour code letters
the
first denotes
the
main
colour
and
the
second denotes
the
tracer colour.
11
" I
11
•
11
I I
••
1.1
11
• I • I •
le
11
I I
tI
I
le
I • I I I
le
I
le
I I " I
at
I"
It
•
11
I
11
.......
"I I
11
I I
11 11
I I
11
,
11
..
I
11 11
11
I
It
I I I I " I
11
I I I I
11
11
I
11
I
..
I'
'"
I t I • I I
11
I • I , I • •
11
, I I I
11
• , •
I1
•
11.
I'.
MINI. Issue
2.
14091
N.9
