N
KEY
TO

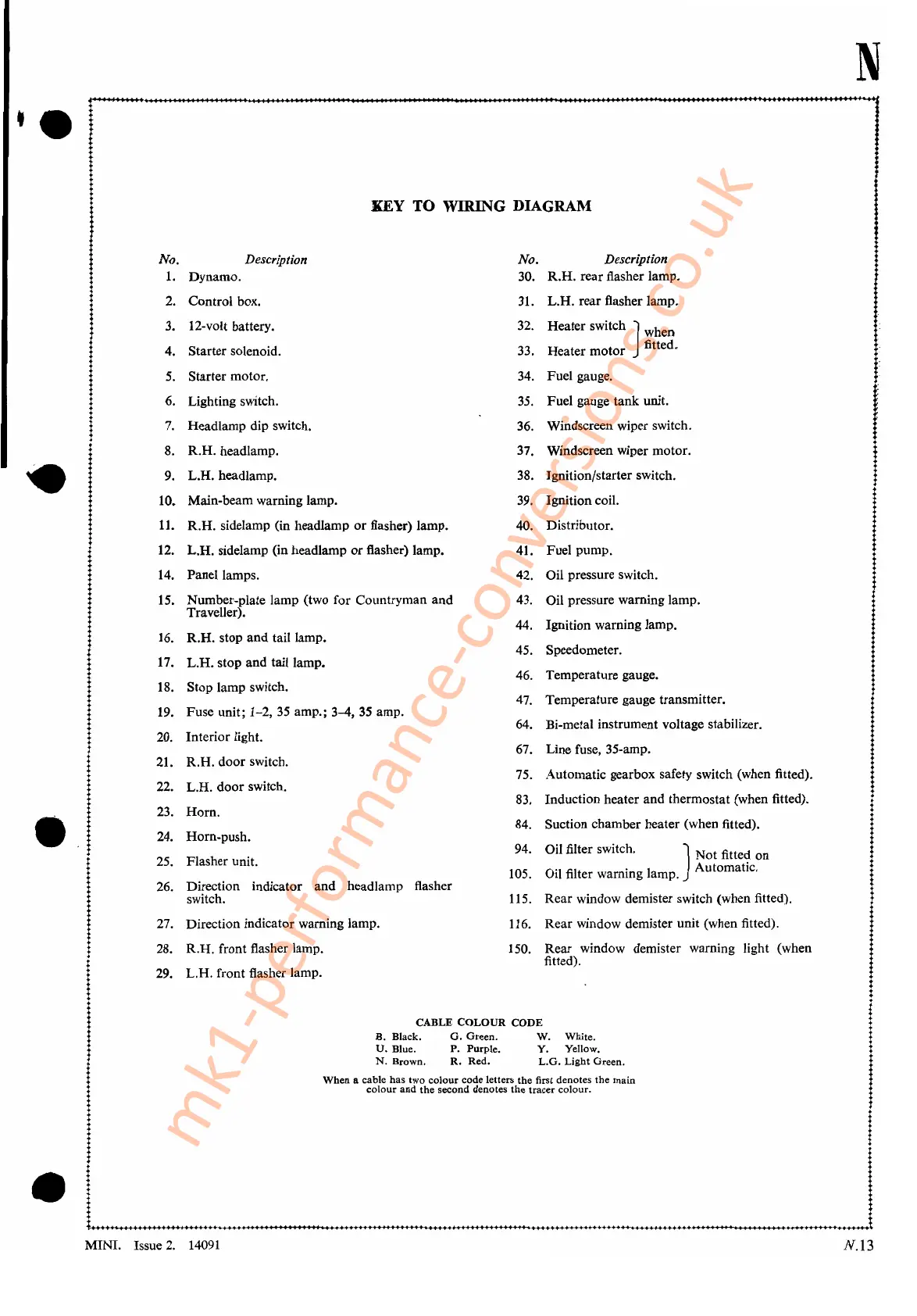

WIRING DIAGRAM
No. Description
30. R.H. rear flasher lamp.
31. L.H. rear flasher lamp.
No. Description
1.
Dynamo.
2. Control box.
3. 12-volt battery.
4. Starter solenoid.
32.
Heater switch
33. Heater motor
J
when
fitted.
34.
Fuel gauge.
35.
Fuel gauge tank unit.
36. Windscreen wiper switch.
37. Windscreen wiper motor.
38. Ignition/starter switch.
39.
Ignition coil.
40. Distributor.
41. Fuel pump.
42. Oil pressure switch.
43. Oil pressure warning lamp.
44. Ignition warning lamp.
45. Speedometer.
46. Temperature gauge.
47. Temperature gauge transmitter.
64. Bi-metal instrument voltage stabilizer.
67. Line fuse, 35-amp.
75. Automatic gearbox safety switch (when fitted).
83. Induction heater and thermostat (when fitted).
84.
Suction chamber heater (when fitted).
94. Oil filter switch.
J
Not
fitted on
105.
Oil filter warning lamp. Automatic.
115.
Rear window demister switch (when fitted).
116.
Rear window demister unit (when fitted).
150.
Rear window demister warning light (when
fitted).
CABLE
COLOUR
CODE
B.
Black.
G.
Green.
W.
White.
U.
Blue.
P.
Purple.
Y.
Yellow.
N.
Brown.
R.
Red.
L.G.
Light
Green.
When
a cable
has
two
colour
code
letters
the
first denotes
the
main
colour
and
the
second
denotes
the
tracer
colour.
~
I
I
I
II
I I
II
'11
1'1.11
••••••
I I
1'11'
1"
11.
1111111111'"
I I I
1"
I
1111""
11111++1
I'
I I I I I I I I 1
11"1
111111'1
I 11
••
1 I
II
I I I
'I
III
1111'++11
....
'
...
I.+<I
,
...
,
...
'+<1
....
11
.......
.1
5.
Starter motor.
6. Lighting switch.
7.
Headlamp dip switch.
8. R.H. headlamp.
9.
L.H. headlamp.
28.
R.H. front flasher lamp.
29.
L.H. front flasher lamp.
26.
Direction indicator and headlamp flasher
switch.
27.
Direction indicator warning lamp.
10. Main-beam warning lamp.
11. R.H. sidelamp (in headlamp
or
flasher) lamp.
12.
L.H. sidelamp (in headlamp
or
flasher) lamp.
14.
Panel lamps.
15. Number-plate lamp (two for Countryman and
Traveller).
16.
R.H. stop and tail lamp.
17. L.H. stop and tail lamp.
18.
Stop lamp switch.
19.
Fuse unit; 1-2,
35
amp.; 3-4,
35
amp.
20.
Interior light.
21.
R.H. door switch.
22. L.H. door switch.
23.
Horn.
24. Horn-push.
25. Flasher unit.
•
•
•
MINI. Issue
2.
14091
N.13
