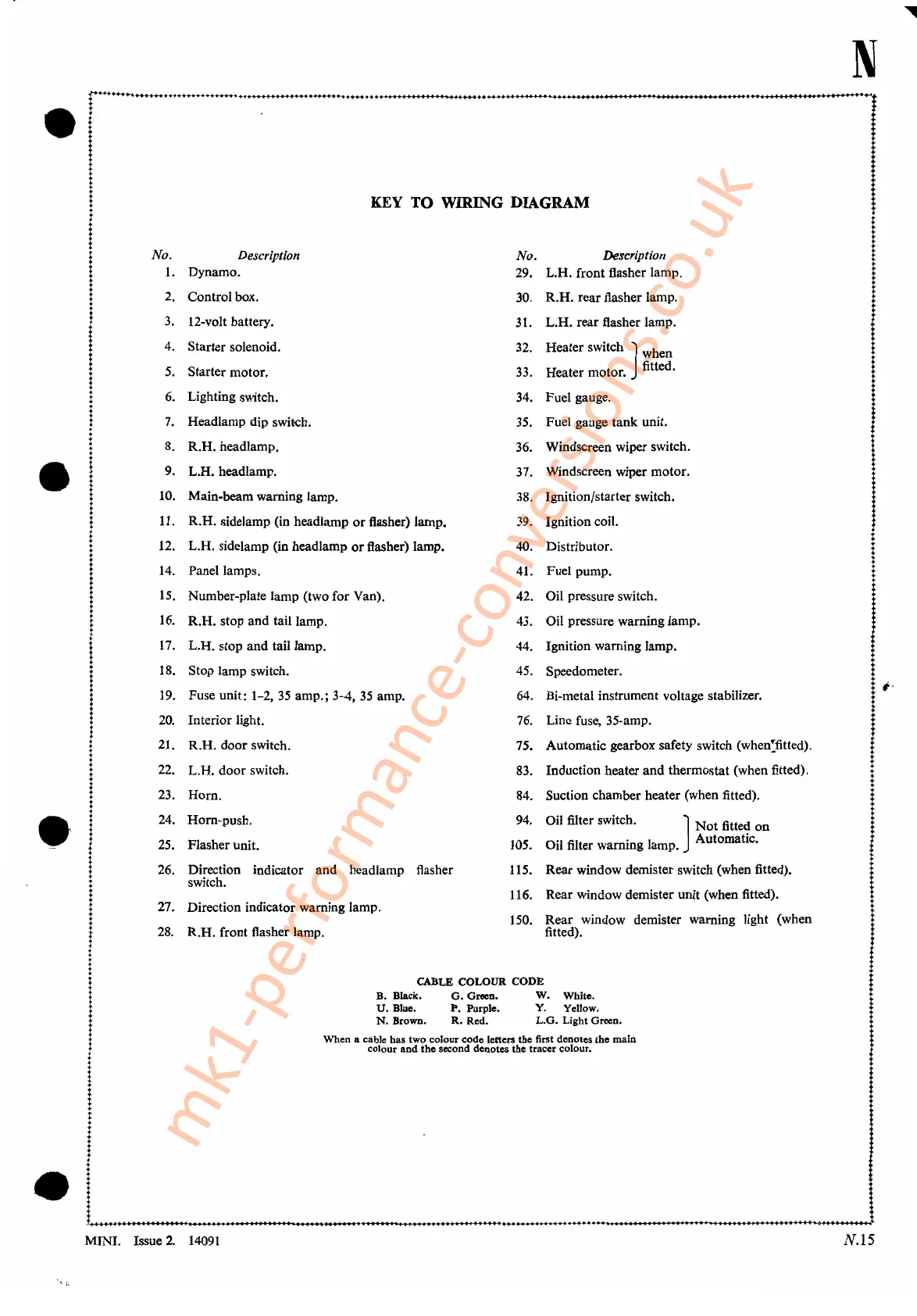

KEY TO WIRING DIAGRAM
116.
Rear window demister unit (when fitted).
150.
Rear window demister warning light (when
fitted).
No.
~scr~twn
29.
L.H. front flasher lamp.
30.
R.H. rear flasher lamp.
31.
L.H. rear flasher lamp.
32.
Heater switch ] when
33.
Heater motor. fitted.
34. Fuel gauge.
35. Fuel gauge tank unit.
36.
Windscreen wiper switch.
37.
Windscreen wiper motor.
38.
Ignition/starter switch.
39.
Ignition coil.
40.
Distributor.
41. Fuel pump.
42. Oil pressure switch.
43.
Oil pressure warning lamp.
44. Ignition warning lamp.
45. Speedometer.
64.
Bi-metal instrument voltage stabilizer.
76.
Line fuse, 35-amp.
75.
Automatic gearbox safety switch (when:fitted).
83. Induction heater and thermostat (when fitted).
84. Suction chamber heater (when fitted).
t
I
Oil filter switch. ]
Not
fitte~
on
Oil filter warning lamp. Automatic.
Rear window demister switch (when fitted).
94.
105.
115.
22.
L.H. door switch.
23.
Horn.
24.
Horn-push.
25. Flasher unit.
26.
Direction indicator and headlamp flasher
switch.
No. Description
1.
Dynamo.
2.
Control box.
3.
12-volt battery.
4.
Starter solenoid.
5.
Starter motor.
6.
Lighting switch.
7.
Headlamp dip
swit'Ch
.
8.
R.H. headlamp.
9. L.H. headlamp.
10.
Main-beam warning lamp.
11.
R.H. sidelamp (in headlamp
or
flasher) lamp.
12.
L.H. sidelamp (in headlamp
or
flasher) lamp.
14.
Panel lamps.
15.
Number-plate lamp (two for Van).
16.
R.H. stop and tail lamp.
17.
L.H. stop and tail lamp.
18.
Stop lamp switch.
19.
Fuse unit:
1-2,35
amp.; 3-4,
35
amp.
20.
Interior light.
21. R.H. door switch.
27. Direction indicator warning lamp.
28.
R.H. front flasher lamp.
i
I
i
I
i
I
I
t
I
• 1
i
i
i
CABLE COLOUR CODE
B. Black.
G.
Green.
W.
White.
U.
Blue.
P.
Purple.
Y.
Yellow.
N.
Brown.
R.
Red.
L.G.
Light Green.
When a cable has two colour code letters
the
first denotes the main
colour
and
the
second denotes
the
tracer colour•
•
1
•••
,
••••
".,'1.11.".,
••
1
••••••••••••
1
••••
,
1
",,"","
1.'
••
,",'.'.1.11'.'
•••
,.,1
'
•••
,'1,
•••
'
••
,
••
,
'.","'I
•.•
,
••
"
••
I~.,
••
I
•••••
MINI. Issue
2.
14091
N.15
