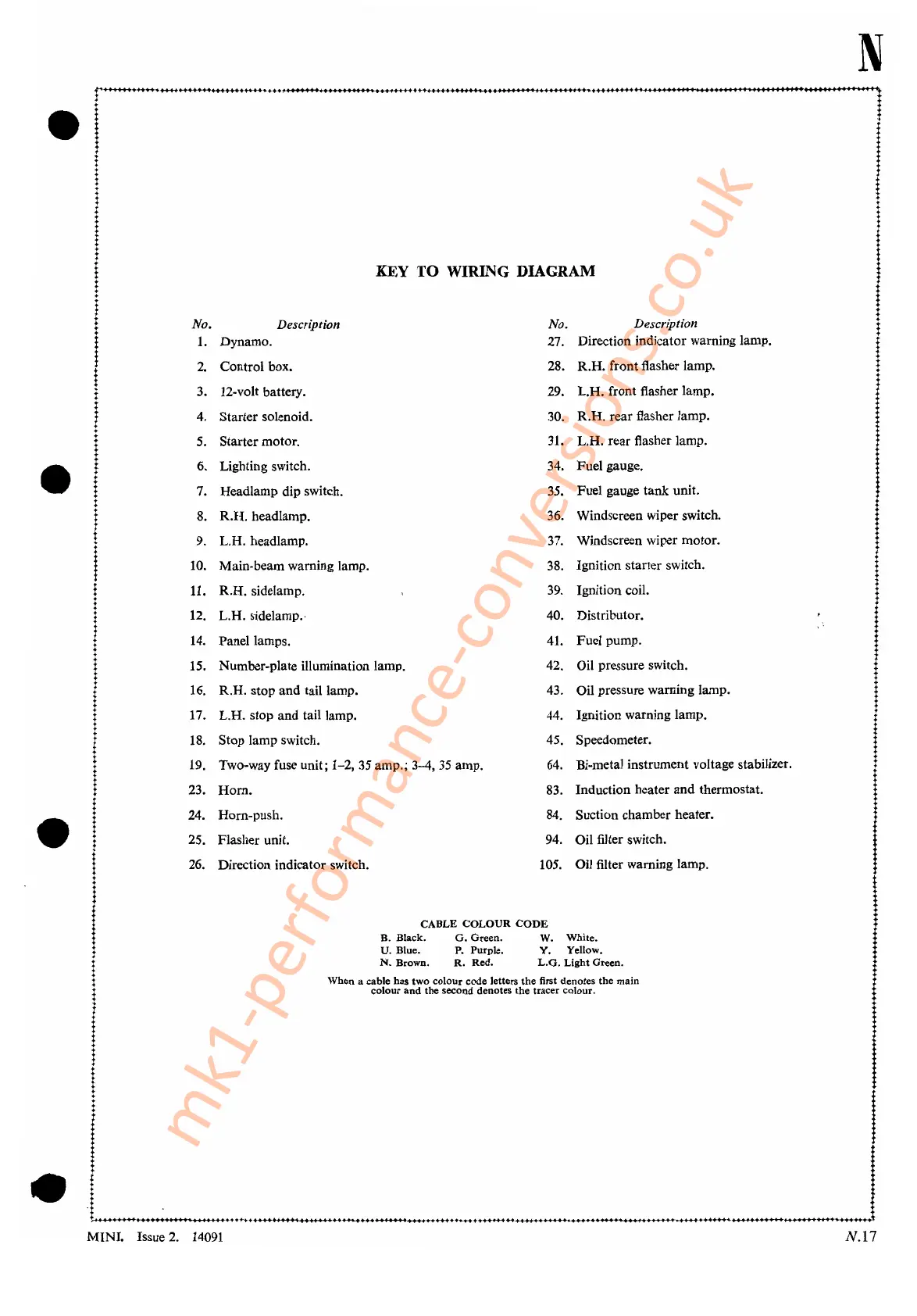

KEY TO WIRING DIAGRAM
.
i
No.
Description
No.
Description
,
.
I
1.
Dynamo.
27.
Direction indicator warning lamp.
2.
Control box.
28.
R.H. front flasher lamp.
i
3.
12-volt battery.
29.
L.H. front flasher lamp.
!
4.
Starter solenoid.
30.
R.H. rear flasher lamp.
I
5.
Starter motor.
31.
L.H. rear flasher lamp.
•
6.
Lighting switch.
34
.
Fuel gauge.
7.
Headlamp dip switch.
35.
Fuel gauge tank unit.
t
·
8.
R.H. headlamp.
36.
Windscreen wiper switch.
I
9.
L.H. headlamp.
37.
Windscreen wiper motor.
·
I
10.
Main-beam warning lamp.
38.
Ignition starter switch.
11.
R.H. sidelamp.
39.
Ignition coil.
I
12.
L.H. sidelamp.,
40.
Distributor.
14.
Panel lamps.
41.
Fuel pump.
t
·
I
15.
Number-plate illumination lamp.
42.
Oil pressure switch.
16.
R.H. stop and tail lamp.
43.
Oil pressure warning lamp.
·
t
17.
L.H. stop and tail lamp.
44.
Ignition warning lamp.
i
I
18.
Stop lamp switch.
45.
Speedometer.
t
19.
Two-way fuse unit;
1-2,35
amp.; 3-4,
35
amp.
64.
Bi-metal instrument voltage stabilizer.
I
23.
Horn.
83.
Induction heater
and
thermostat.
e
24.
Horn-push.
84.
Suction chamber heater.
·
25.
Flasher unit.
94.
Oil filter switch.
I
26.
Direction indicator switch.
105.
Oil filter warning lamp.
·
·
t
:
t
t
i
i
I
i
CABLE
COLOUR
CODE
B. Black.
G.
Green.
W.
White.
U.
Blue.
P.
Purple. Y. Yellow.
N.
Brown.
R.
Red.
L.G.
Light Green.
When a cable
has
two colour code letters
the
first denotes the main
colour
and
the
second denotes
the
tracer colour.
N.t7
MINI. Issue
2.
14091
•
