SAM 950 Berkeley Nucleonics Corporation 13 of 62

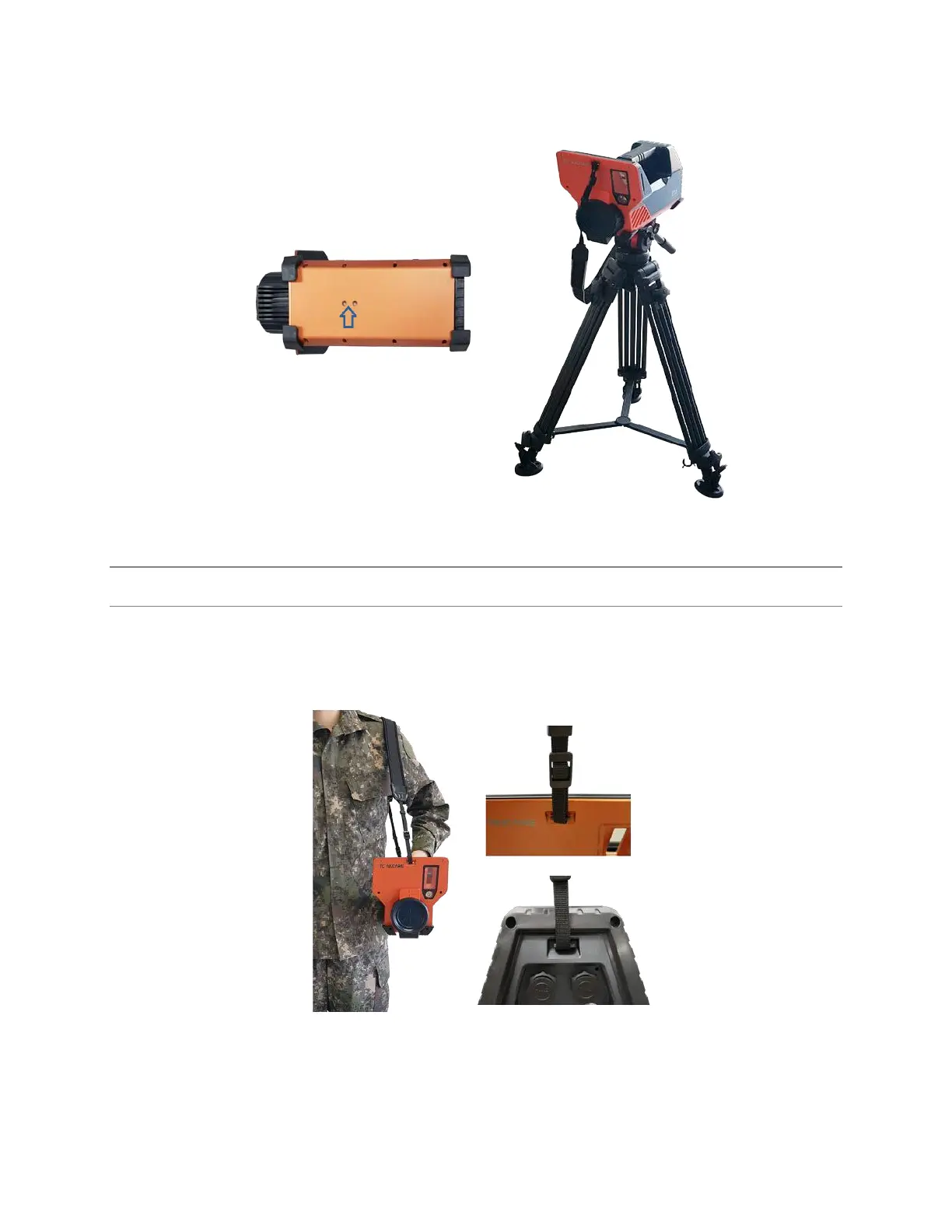

Figure 3.5. Tripod adaptor holes and SAM 950 mounted on a tripod.
SHOULDER STRAP ASSEMBLE GUIDE
To minimize fatigue of an operator, SAM 950 can be wearing on shoulder using a shoulder strap.
✓ There are two strap hocks at front and back of the SAM 950 body. Assemble example is shown in
figure 3.6.
Figure 3.6. Shoulder strap assemble examples
