SAM 950 Berkeley Nucleonics Corporation 58 of 62
XML FILE ( ANSI42. 42) CONVERSION
The spectrum in the event log can be saved in the standard ANSI42.42 XML file format. The procedure for
saving such a file is described below.
1. Select the event from the event list and click the disk icon( ) in the lower left corner of the screen.
The destination directory screen will appear (figure 6.6 below).
2. Browse to, then select the desired directory and click “Save”.

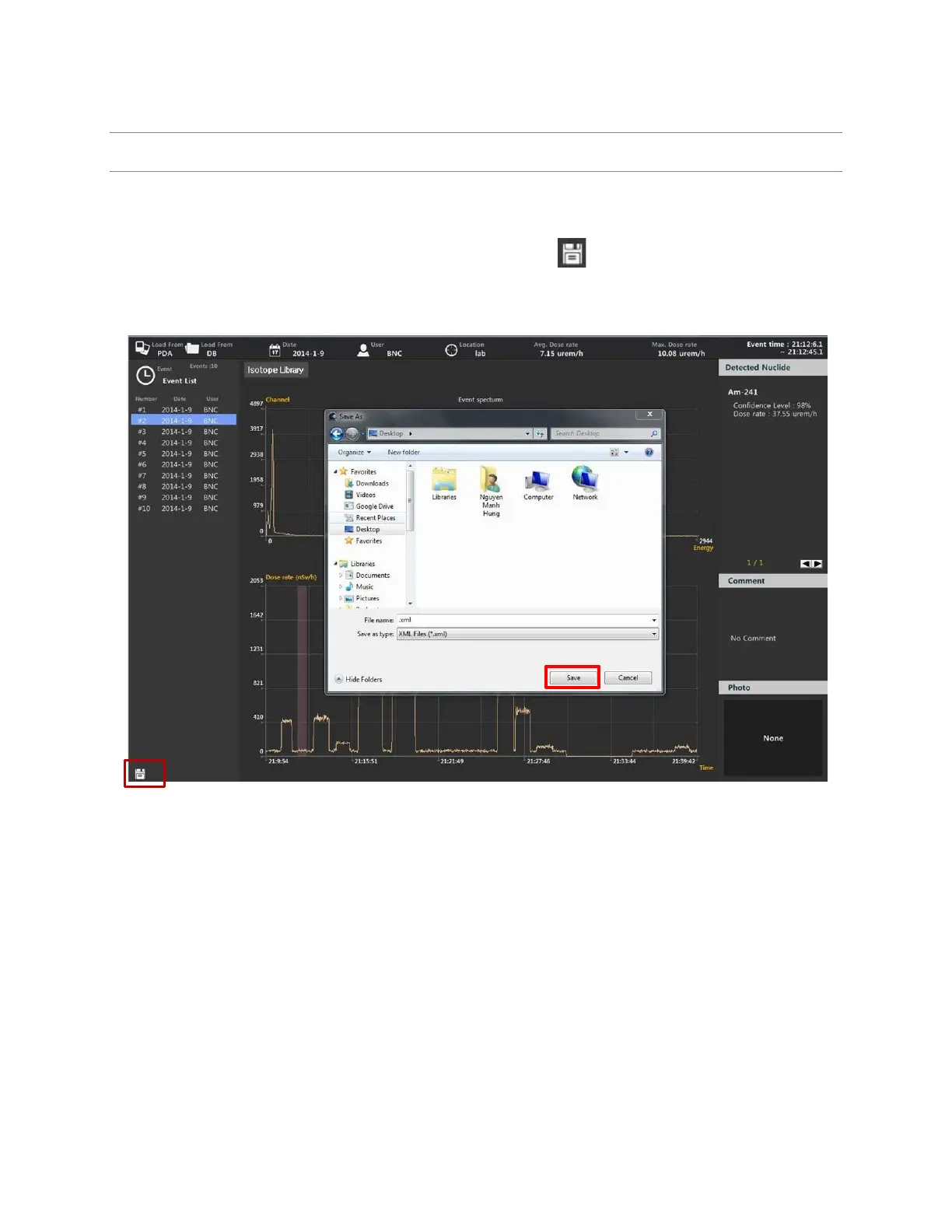

Figure 6.6. Save as XML file format example
