5.2 ACU 201 (4.0 to 9.2 kW) and 401 (5.5 to 15.0 kW)
The frequency inverter is mounted in a vertical position on the assembly panel by
means of the standard fittings. The following illustration shows the standard fitting.

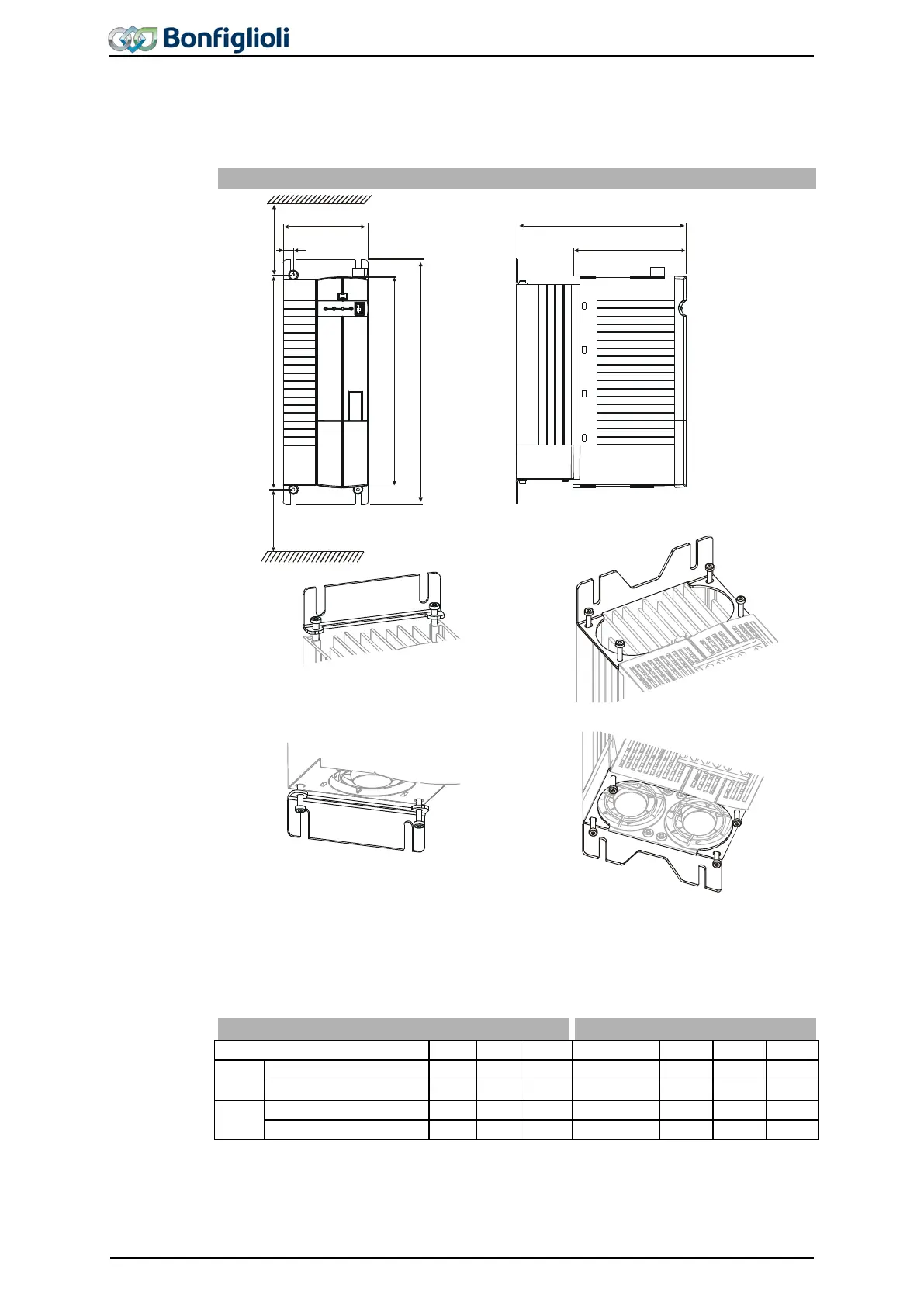

Standard installation
b
b1
a
a1 a2
c
x
x
c1
x 100 mm≥
fixing bracket bottom
(fixing with screws ) M4x60
fixing bracket top
(fixing with screws ) M4x20
Assembly is done by screwing the two fixing brackets to the heat sink of the frequen-
cy inverter and the assembly panel.
The frequency inverters are provided with fixing brackets, which are fitted using four
thread-cutting
screws. The dimensions of the device and the installation dimensions
are those of the standard device without optional components and are given in milli-
meters.
Dimensions [mm]
Installation dimensions [mm]
ACU
a
b
c
a1
a2
b1
c1
201
4.0 … 5.5 kW
250
100
200
270 ... 290
315
12
133
7.5 … 9.2 kW
250
125
200
270 ... 290
315
17.5
133
401
5.5 ... 9.2 kW
250
100
200
270 ... 290
315
12
133
11.0 … 15.0 kW
250
125
200
270 ... 290
315
17.5
133
44 Operating Instructions ACU 06/13
