5.4 ACU 401 (37.0 to 65.0 kW)
The frequency inverter is mounted in a vertical position on the assembly panel by

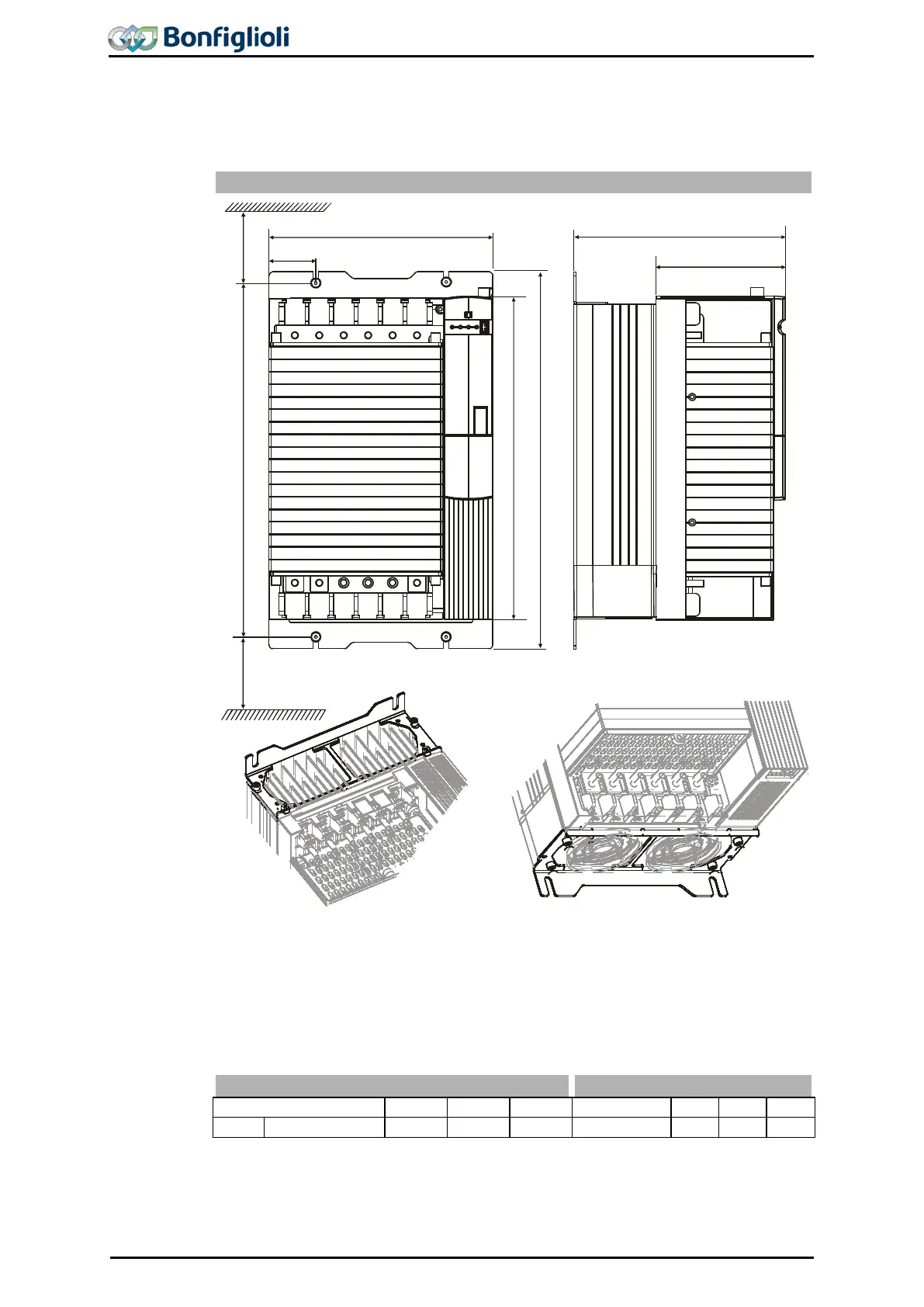

means of the standard fittings. The following illustration shows the standard fitting.
Standard installation
fixing braket top
(fixing with screws ) M5x20
fixing braket bottom
(fixing with screws )M5x20
a
a1
a2
x
x 100 mm
≥
b
b1
x
c
c1
Assembly is done by screwing the two fixing brackets to the heat sink of the frequen-
cy inverter and the assembly panel.
The frequency inverters are provided with fixing brackets, which are fitted using four
thread-
cutting screws. The dimensions of the device and the installation dimensions
are those of the standard device without optional components and are given in milli-
meters.
Dimensions [mm]
Installation dimensions [mm]
ACU
a
b
c
a1
a2
b1
c1
401
37...65 kW
400
275
260
425 … 445
470
20
160
46 Operating Instructions ACU 06/13
