Appliance description
EN
www.bora.com 11
3
Appliance
description
u
Observe all safety and warning information (see"2Safety").
3.1
Model description
3.1.1
Professional 3.0 cooktop
extractors
The cooktop extractors are the central components of the whole
system and can be combined with all Professional 3.0 cooktops.
Up to 2 cooktops can be connected to each cooktop
extractor.
Model Long description
PKA3 Pro cooktop extractor
(flexible system with separate control unit)
PKA3AB Pro cooktop extractor, All Black
(flexible system with separate control unit)
PKAS3 Pro cooktop extractor system with integrated fan
(compact system with integrated control unit and
integrated fan)
PKAS3AB Pro cooktop extractor system with integrated fan, All
Black
(compact system with integrated control unit and
integrated fan)
Tab.3.1
Model description
3.1.2
Professional 3.0 cooktops
The cooktops are the modular components of the Professional 3.0
system.
Model Long description
PKFI3 Pro surface induction cooktop
PKI3 Pro induction cooktop
PKIW3 Pro induction wok cooktop
PKC3 Pro HiLight cooktop 3-ring/2-ring
PKCB3 Pro HiLight cooktop 3-ring/roaster
PKCH3 Hyper cooktop 1-ring/2-ring
PKT3 Tepan stainless steel grill with 2 cooking zones
PKG3 Pro gas cooktop
Tab.3.2
Model description
3.2
Control knob
How it works
The cooktop extractor and cooktops are operated with a control
knob. The power levels and functions are controlled by turning the
knob ring and pressing the touch surface. How it works and its
functions are described in more detail in the “Functions and
operation” chapter.

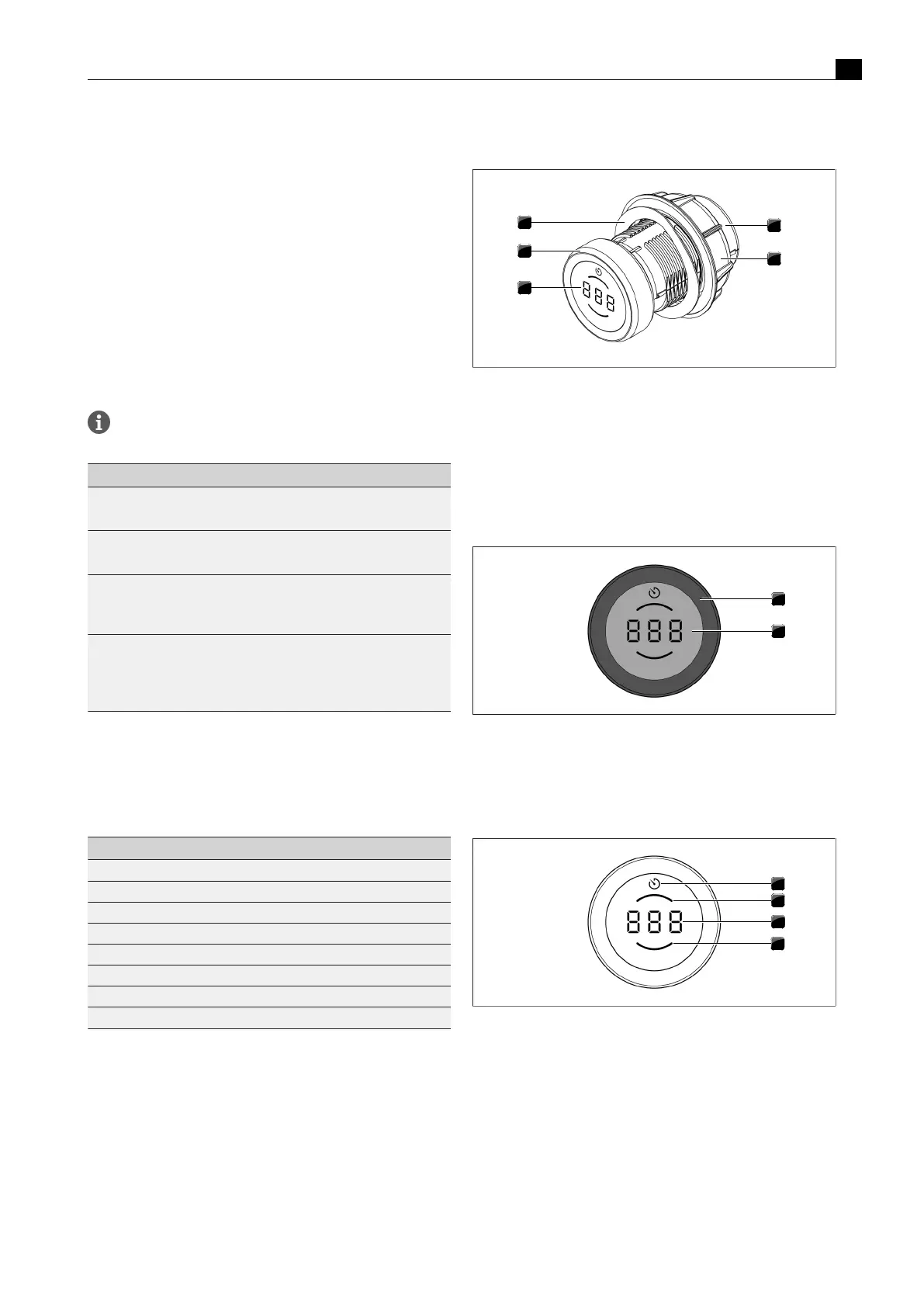

Structure
Fig.3.1
Structure of control knob
[1]
Knob housing
[2]
Universal nut
[3]
Control knob display
[4]
Knob ring
[5]
Wave spring
Operating elements
Fig.3.2
Control knob operating elements
[1]
Knob ring
[2]
Touch surface
Control knob display
Fig.3.3
Control knob display elements
[1]
Timer/quick timer display
[2]
Rear cooking zone indicator
[3]
Multi-function display
[4]
Front cooking zone indicator
