Fig. 6.16 Height adjustment plates
[1] Sealing tape
[2] Optional height adjustment plates
If necessary, lay the height adjustment plates [2]
underneath.
Place the height adjustment plates next to the sealing
tape [2].
Securing the cooktop
1
2
3
Fig. 6.17 Securing the cooktop in the middle
[1] Cooktop
[2] Installation clamp
[3] Fixing bracket
Secure the cooktop to the worktop [1] with the fixing
bracket [3] on the installation clamp [2] .
Tightening torque: max. 2.2 Nm
54321

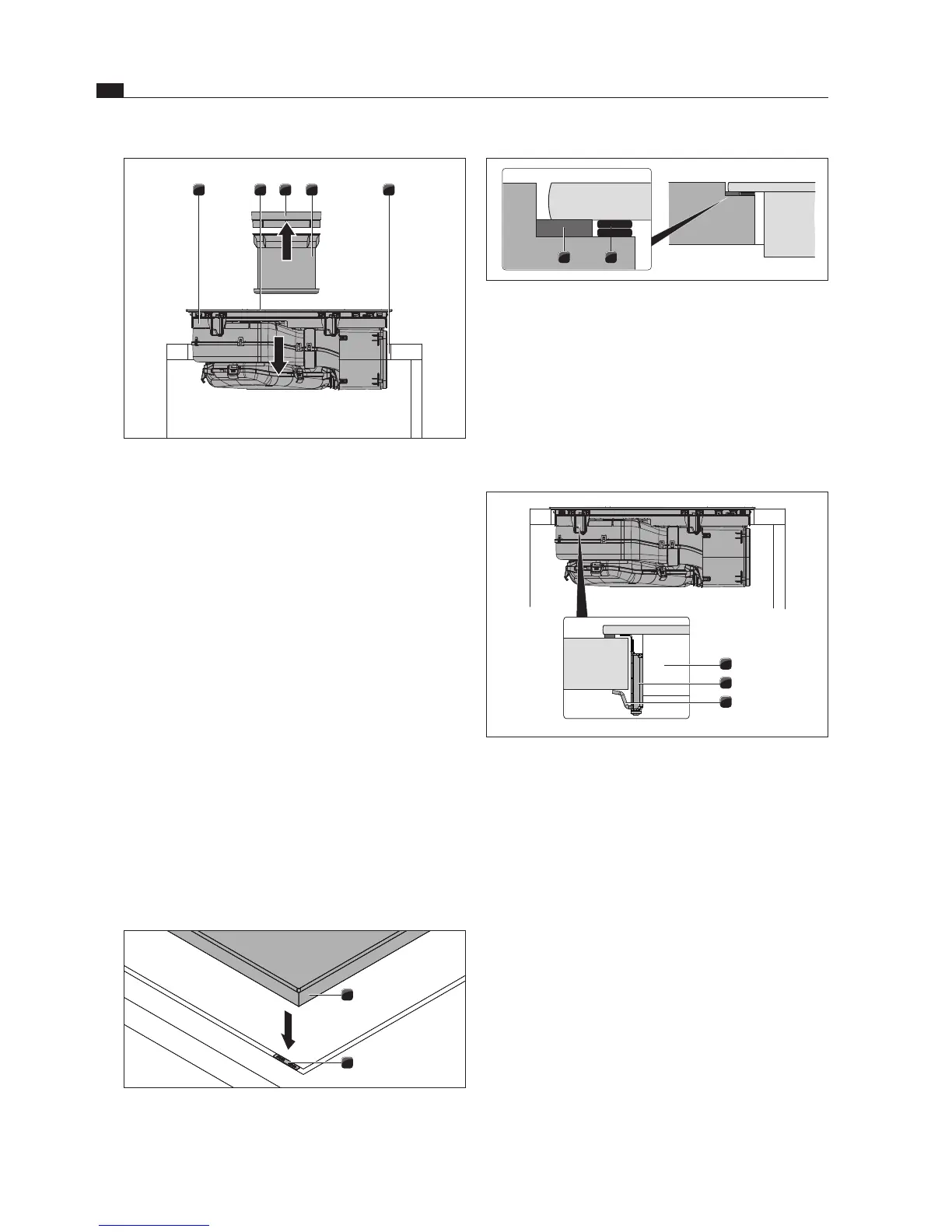

Fig. 6.14 Inserting the cooktop
[1] Cooktop
[2] Inlet opening
[3] Air inlet nozzle
[4] Stainless steel grease filter
[5] Worktop cut-out
Before inserting the cooktop, remove the air inlet
nozzle [3] and the stainless steel grease filter [4].
Use the inlet opening [2] as a handle during insertion.
Keep the cooktop [1] straight as you lift it into the
worktop cut-out [5]
Insert the cooktop [1] into the centre of the worktop
cut-out [5].
Precisely align the cooktop.
Information regarding flush installation:
Make sure that the sealing tape of the cooktop is well
sealed all the way round.
Information regarding surface mounting:
Make sure that the sealing tape for the cooktop is flat
against the worktop.
Height adjustment plates for flush
installation(optional)
