16 en | System installation overview DICENTIS
2021.01 | V2.2 |
Hardware Installation Manual
Bosch Security Systems B.V.
Multi subnet DICENTIS Conference System
The following figure illustrates a typical multi subnet DICENTIS Conference System with a total
of 750 DICENTIS devices.
– The system is divided over four (4) subnets, where two (2) subnets having a maximum of
450 DICENTIS nodes and an OMN-ARNIS are connected.
– The system has one OMN-ARNIE installed in the first subnet with a maximum of 450
DICENTIS nodes connected (Note that only one OMN-ARNIE is allowed within a multiple
subnet DICENTIS Conference System).
– Subnet four (4): When using multiple subnets, make sure that all cameras needed to
capture video of the seats are all connected to the same subnet.

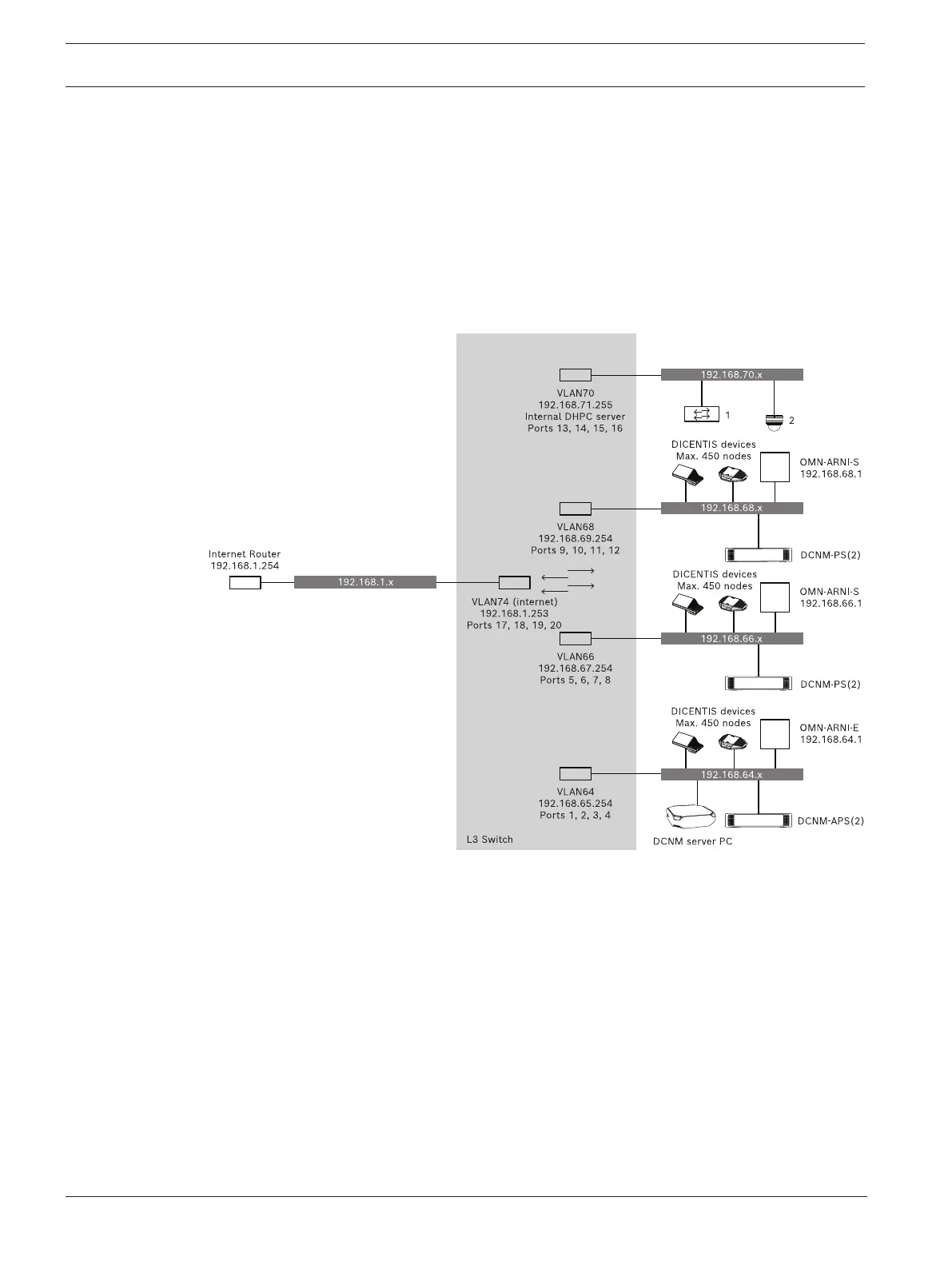

Figure3.3: Typical DICENTIS Conference System with multiple subnets
– 1: External video switcher.
– 2: Dome camera.
Refer to
– Typical system setup, page 10
