56 en | Mechanical installation of Contribution Devices DICENTIS
2021.01 | V2.2 |
Hardware Installation Manual
Bosch Security Systems B.V.
7 Mechanical installation of Contribution Devices
The DICENTIS (tabletop and flush-mounted) devices are used to:
– participate in a meeting or conference.
– monitor and control a meeting or conference (chairperson use, depending on the
configuration).
7.1 DICENTIS tabletop devices
DCNM-MMD / DCNM-MMD2

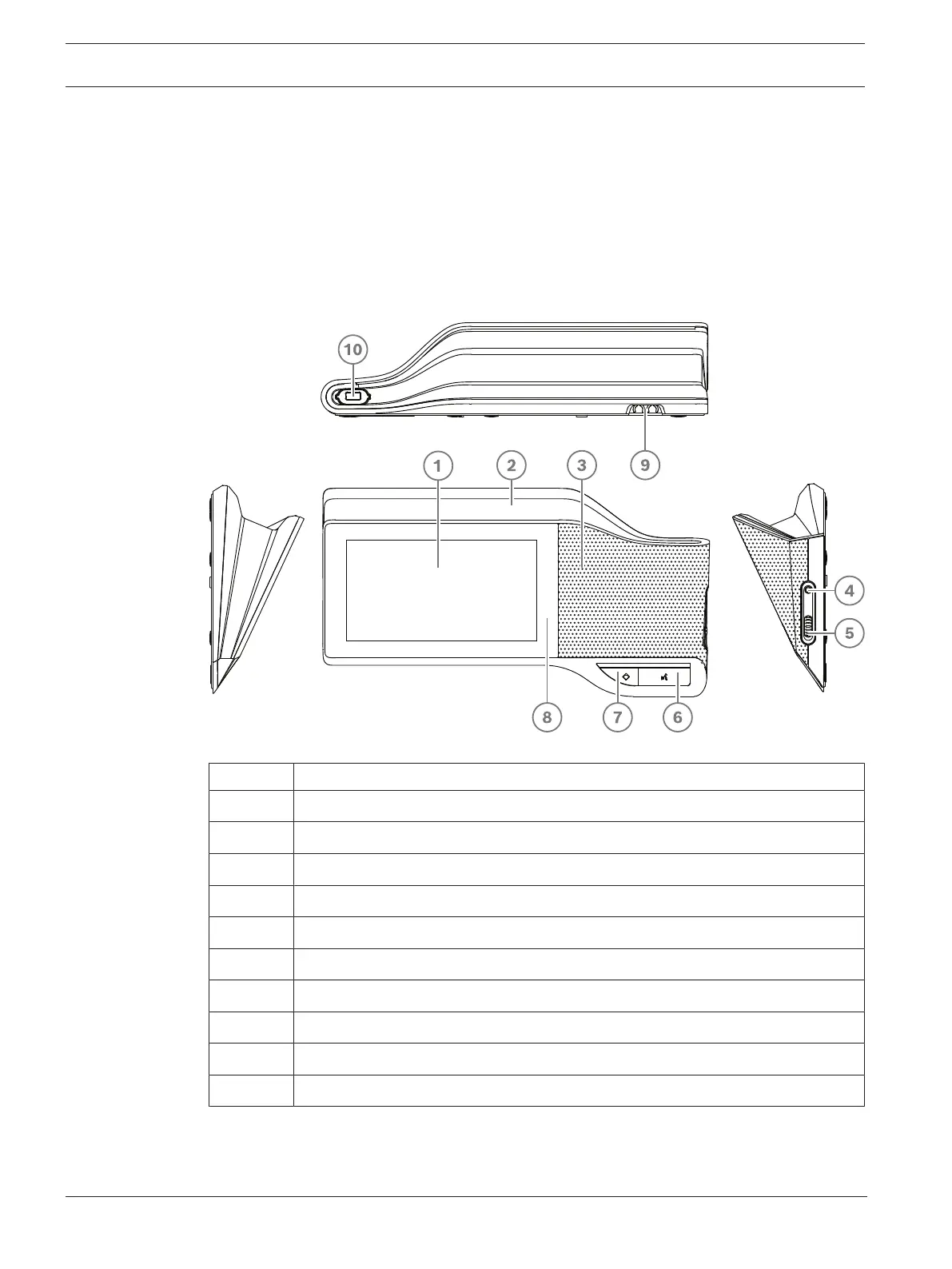

Figure7.1: Front, top, rear and side views
Item Description
1 7” capacitive touch screen.
2 LED strip.
3 Two‑way loudspeaker.
4 3.5 mm stereo jack for headphone or headset with integrated microphone.
5 Headphone volume control.
6 Microphone request button.
7 Chairperson priority or microphone mute button.
8 Near Field Communication (NFC) reader (DCNM-MMD2 only).
9 Cable guides.
10 Microphone input connector.
– DCNM-MMD2 is compliant with the Radio Equipment Directive (RED) 2014/53/EU.
– Operating frequency is 13.56 MHz. Maximum field strength is 8.05 dBµA/m @ 3m.
