Bosch DCNM-SERVER - DICENTIS Cable Connectors

40 en | Installation material and tools DICENTIS
2021.01 | V2.2 |
Hardware Installation Manual
Bosch Security Systems B.V.
5.3 DCNM-CBCON Connectors for DICENTIS cable
The connectors are used to make your own system network cables or to replace a connector.
The cable can be used for solid core cable (DCNM-CB02-I, DCNM-CB05-I, DCNM-CB10-I,
DCNM-CB25-I, DCNM-CB250-I, DCNM-CB250), as well as stranded core cable (DCNM-CB02,
DCNM-CB05, DCNMCB10, DCNM-CB25, DCNM-CB02B, DCNM-CB05B, DCNM-CB10B, DCNM-
CB25B, DCNM-CB250B).
1
1
3
4
6
7
9
8
5
2
3
4
5
7
9
8
6

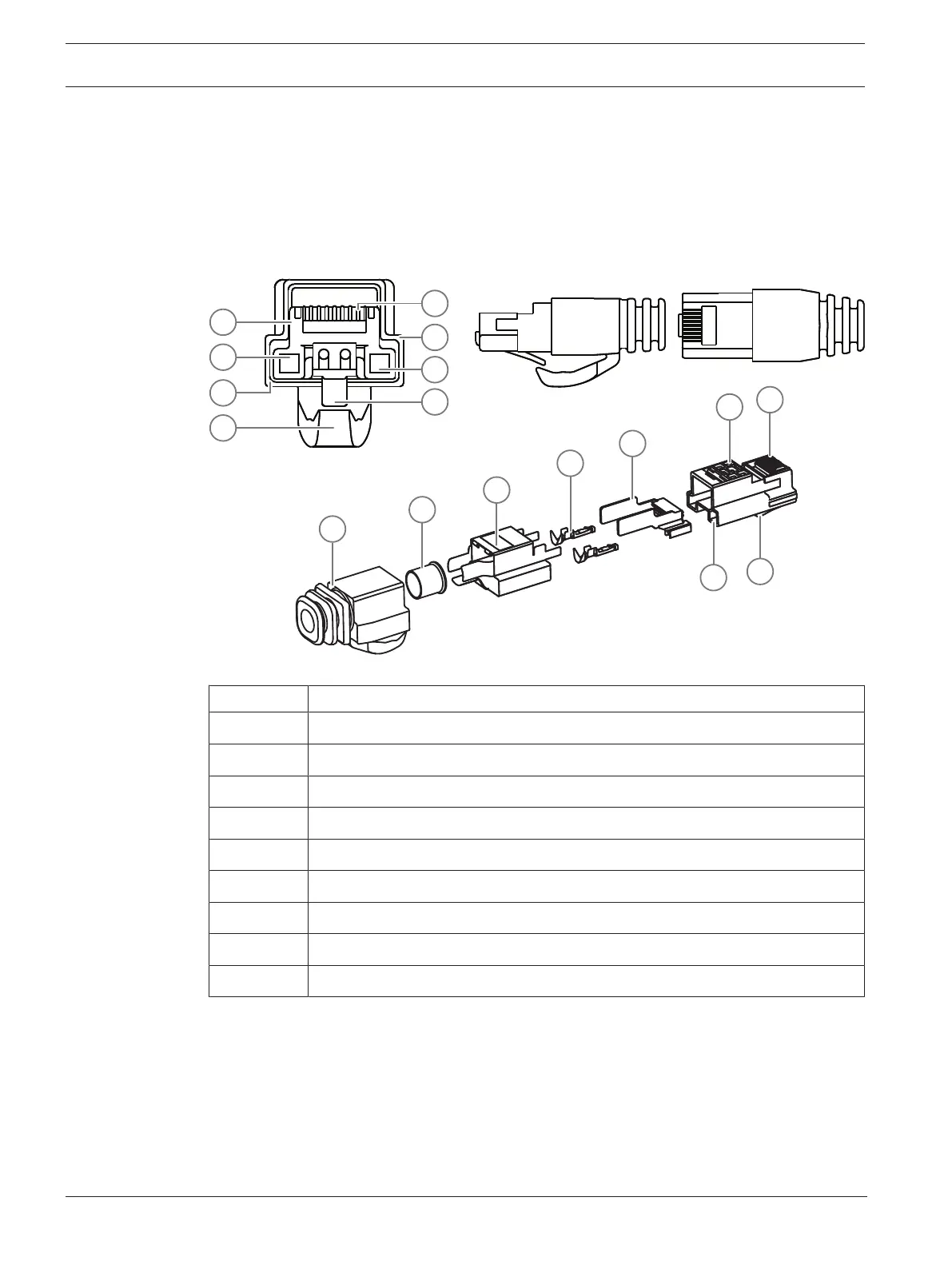

Figure5.10: DCNM-CBCON Front and exploded view
Item Description
1 Strain relief boot
2 Ferrule
3 Plug connector shield
4 Power contacts (Qty: 2)
5 Load bar
6 Power contact cavity (2 places)
7 Housing
8 Locking latch
9 Signal contact cavity (8 Places)
Refer to
– DICENTIS System Cable Assemblies, page 38
– DCNM-CB250-I System Installation Cable, page 42
– DCNM-CBTK System Network Cable Toolkit, page 41
