DICENTIS Mechanical installation of Central Equipment | en 47
Bosch Security Systems B.V.
Hardware Installation Manual
2021.01 | V2.2 |
6 Mechanical installation of Central Equipment
6.1 Audio processor and powering switch and Powering switch
The Audio processor and powering switch is used:
– to control system audio signals,
– to route audio signals to/from devices,
– to supply power to devices,
– as an Ethernet switch to connect the PC and DICENTIS devices (DCNM-D / DCNM-DVT /
DCNM-DSL / DCNM-DE / DCNM-MMD / DCNM-MMD2).
The Powering switch is used to:
– supply power to devices.
Scope of delivery
The Audio processor and powering switch and Powering switch are shipped with the following
parts:
– 1x Mains power cord.
– 1x Safety instructions.
– 1x Set of 19 inch mounting brackets.
– 4x bottom feet.
– 1x DVD containing manuals (only with Audio processor and powering switch).
Front view

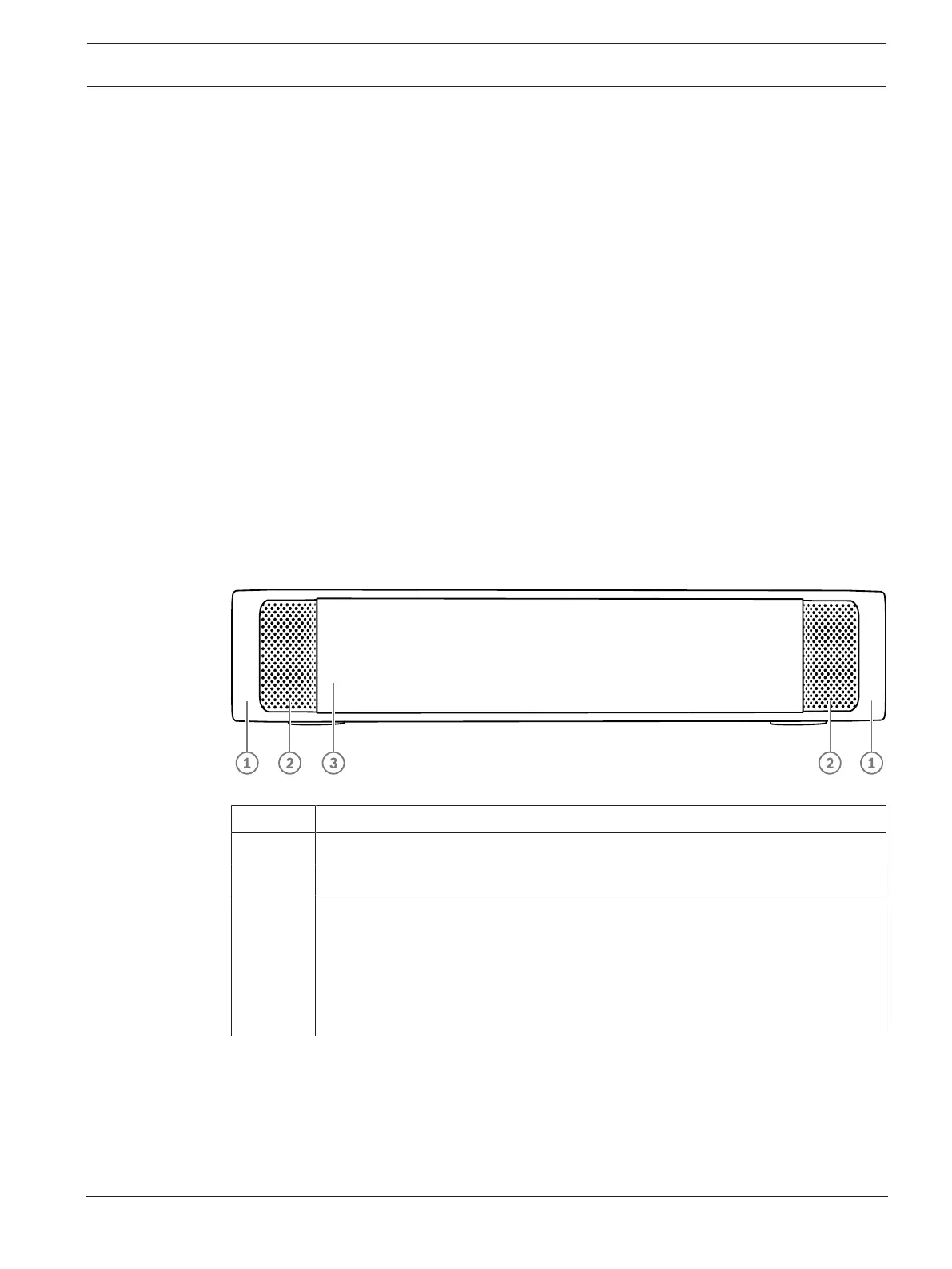

Figure6.1: Audio processor and powering switch / Powering switch
Item Description
1 19“ mounting brackets.
2 Ventilation inlet.
3 Indication LED:
Off: Switched off.
Green: Switched on.
Amber: Standby.
Blinking: Services on the server PC are not running.
Alternating green amber: When a software download is required.
