2021.01 | V2.2 |
5.6 DCNM-IDESKINT On-air & teleph. DCNM-IDESK
The DCNM-IDESKINT On-air & teleph. DCNM-IDESK is an accessory that is connected to the
DICENTIS Interpreter desk. It has 3 functions:
– to control a booth on-air indicator outside the booth,
– to display on the Interpreter desk that the telephone system outside the booth is ringing;
and
– to display on the Interpreter desk that a sensor inside the booth detects a too high CO2
level.

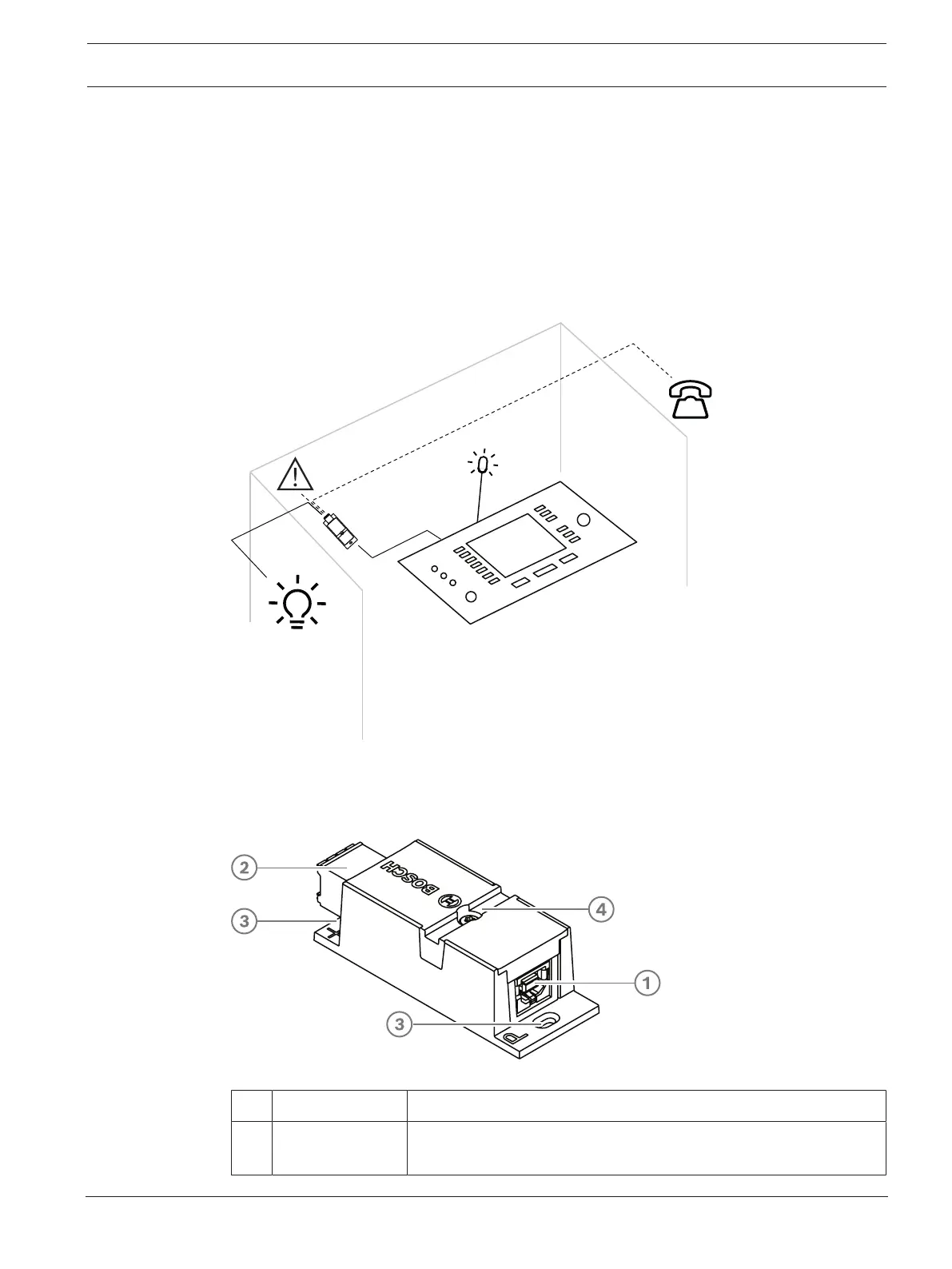

Figure5.11: Interpreter’s booth
Description of the device
Figure5.12: DCNM-IDESKINT
1 USB-B connector Connects the device to the DCNM-IDESK’s USB-A input
2 8-pin Phoenix
connector
Connects the device to an external booth on-air LED and an
external telephone system
