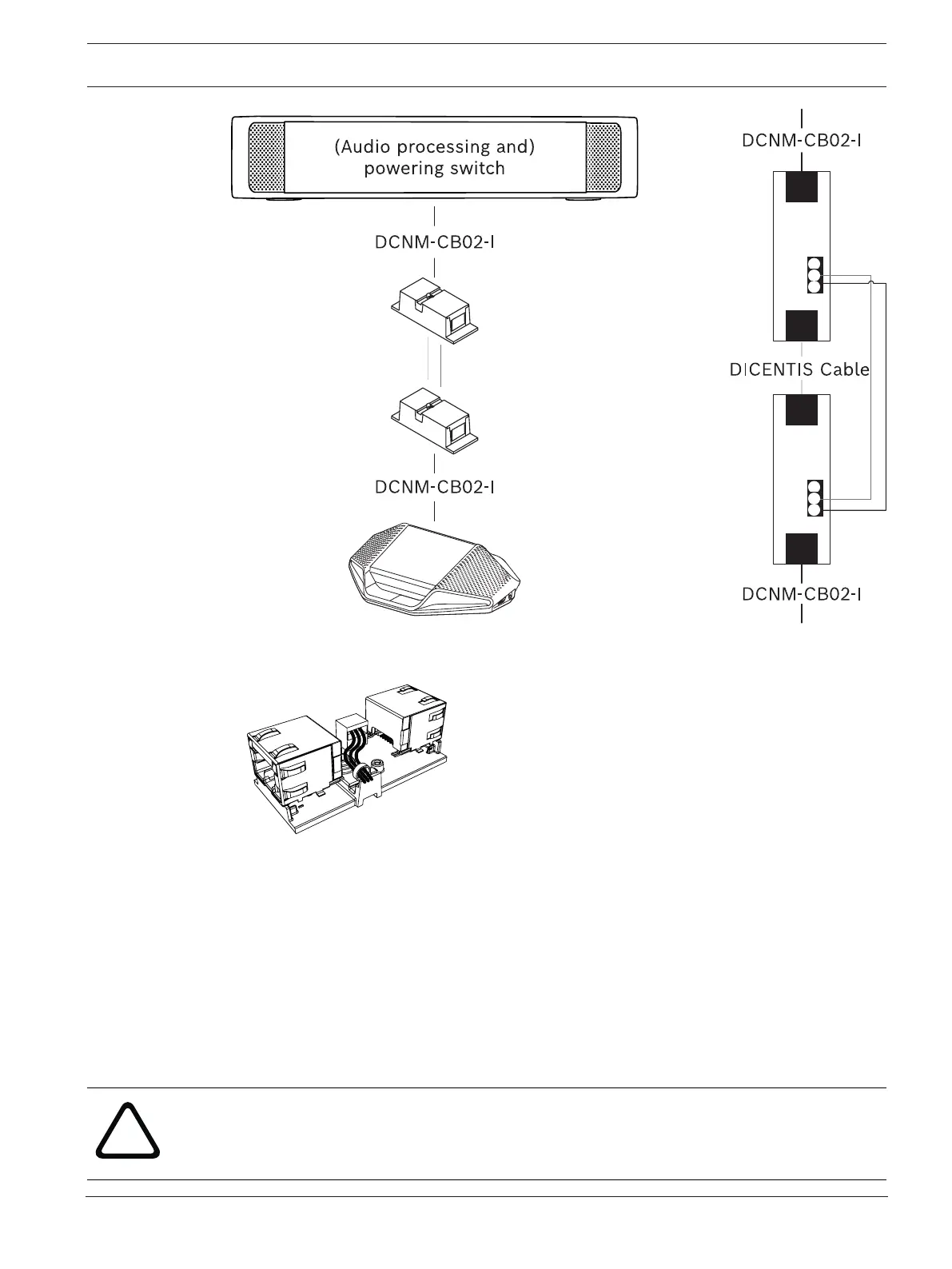

Figure5.3: Cable coupler used as interface
Figure5.4: Creating a tension relief, tie wrap prevents the power cables from being pulled out accidentally.
5.1.4 Using a cable coupler to insert power locally
The cable coupler can be used to insert a local power supply, enabling you to place a third-
party 48VDC power close to the participant devices.
To set this up:
1. Open the housing of the cable coupler.
2. Connect the power cables to the screw terminals + and -.
3. Remove the break-out of the housing to guide the power cables through.
4. Create a tension release.
!
Warning!
Risk of electric shock. Exposed power cables are a potential hazard. Make sure all power
cables are securely fastened by fixing them with a tie wrap on the inside of the box (see
drawing ‘Creating a tension relief’).
