48 en | Mechanical installation of Central Equipment DICENTIS
2021.01 | V2.2 |
Hardware Installation Manual
Bosch Security Systems B.V.

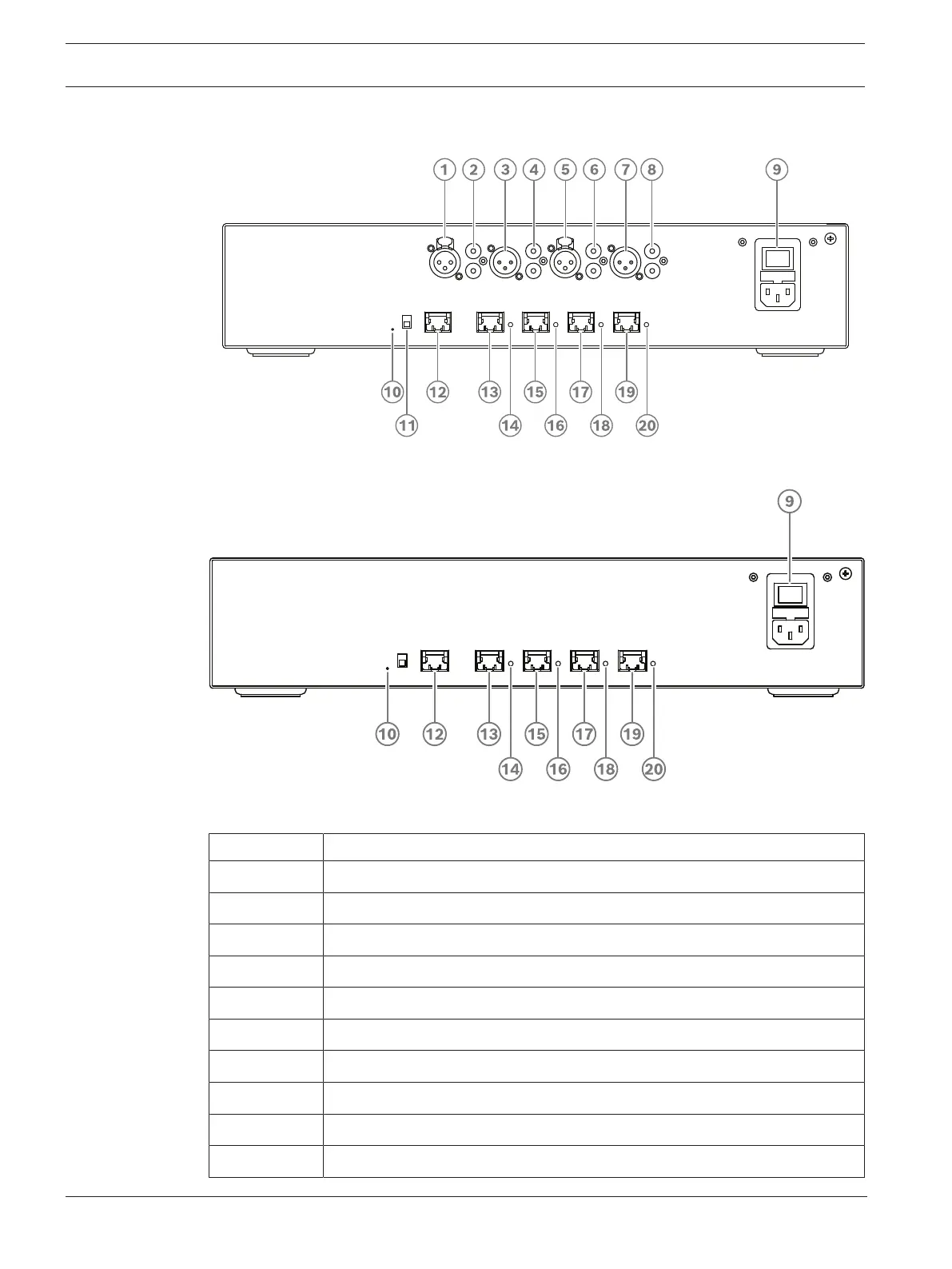

Rear view
Figure6.2: Audio processor and powering switch
Figure6.3: Powering switch
Item Description
1, 5 XLR line outputs 1 and 2.
2, 6 RCA line outputs 1 and 2.
3, 7 XLR line inputs 1 and 2.
4, 8 RCA line inputs 1 and 2.
9 Mains inlet, mains switch and fuse holder.
10 Reset button.
11 Ground switch (grounded or floating).
12 Socket 1 without power.
13 Socket 2 low power.
15, 17, 19 Socket 3, 4, 5 high power.
