26 en | System installation design and planning DICENTIS
2021.01 | V2.2 |
Hardware Installation Manual
Bosch Security Systems B.V.

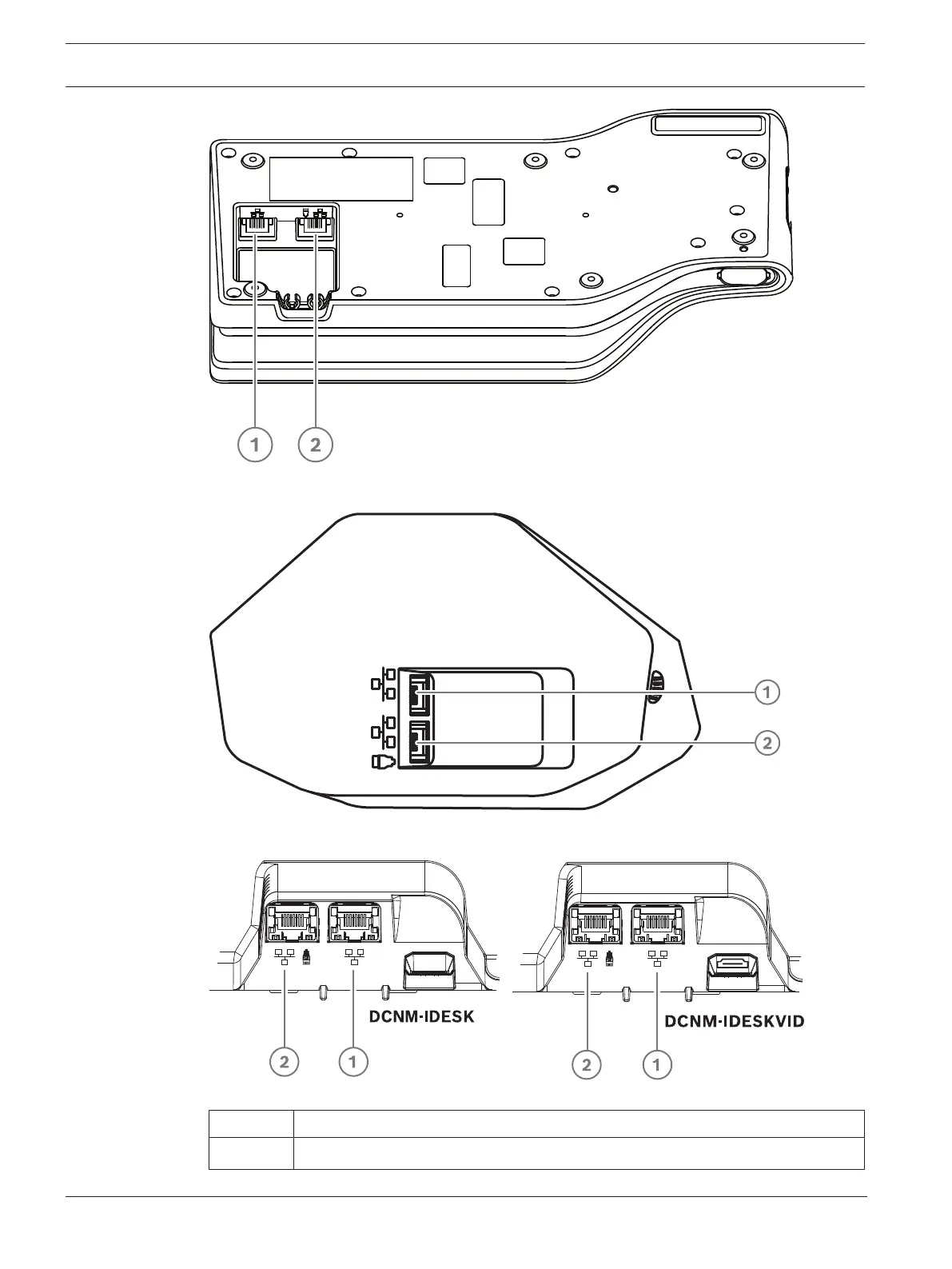

Figure4.4: Bottom view DICENTIS devices (DCNM-MMD / DCNM-MMD2)
Figure4.5: Bottom view DICENTIS devices (DCNM-D / DCNM-DVT / DCNM-DSL / DCNM-DE)
Figure4.6: Bottom view DICENTIS Interpreter devices (DCNM-IDESK / DCNM-IDESKVID)
Item Description
1 Network connector
