– the system is not used for a specific period of time.
You can use the cable coupler in combination with a custom made switch to create a wake-up
switch for the system (see following figure). To do this:
1. Open the housing of the cable coupler.
2. Remove the 0 Ohm resistor of the cable coupler connected to the always powered
output. Leave the 0 ohm resistor in the cable coupler which is connected to output 3 of
the (A)PS.
3. Remove the break-out of the housing to guide the power cables through.
4. Connect the wires according the figure below.
5. Create a tension release.
Warning!
Risk of electric shock. Exposed power cables are a potential hazard. Make sure all power
cables are securely fastened by fixing them with a tie wrap on the inside of the box (see
drawing ‘Creating a tension relief’).
6. Close the housing and fix the screw with torque 0.4 Nm.

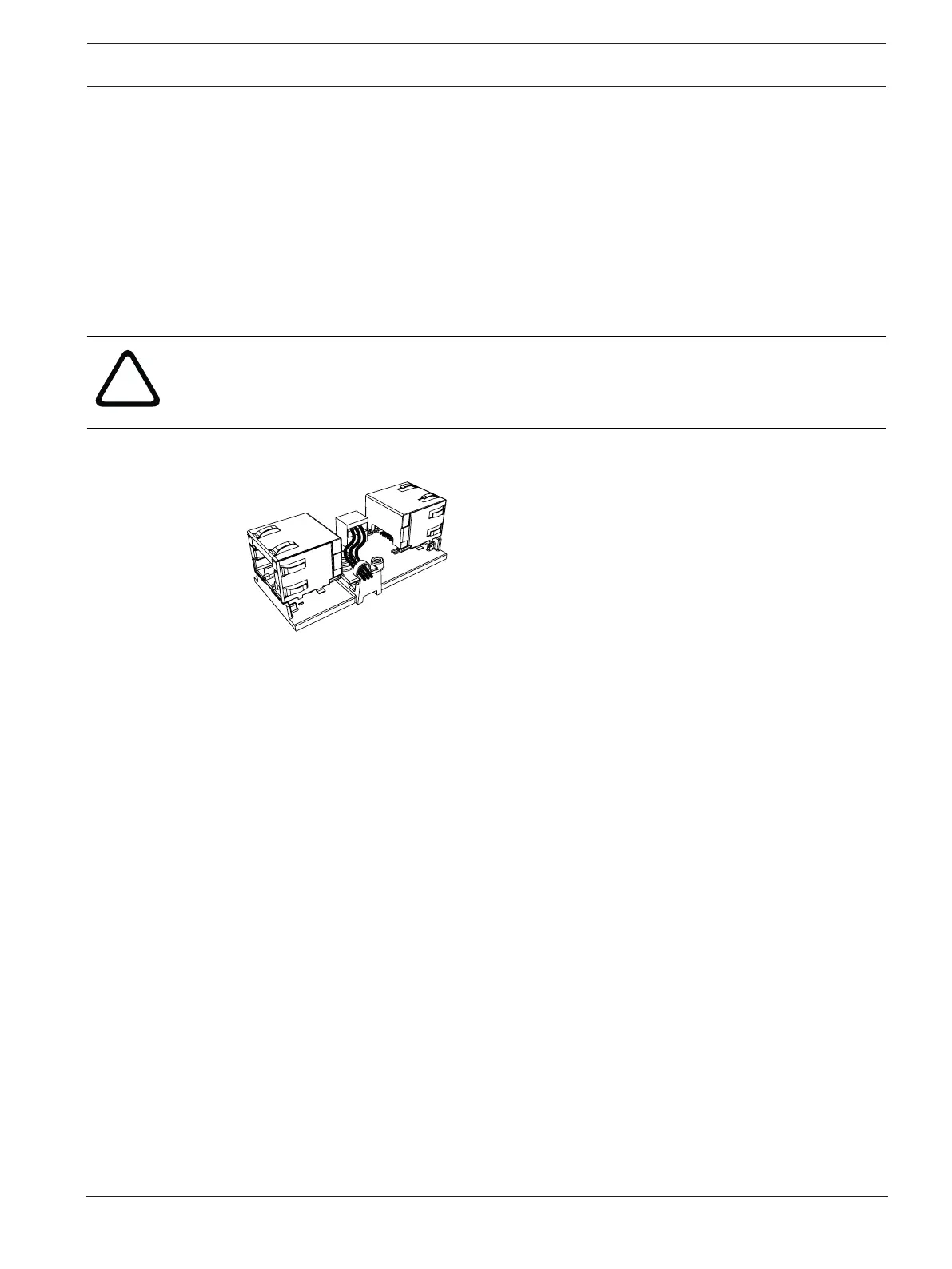

Figure5.7: Creating a tension relief, tie wrap prevents the power cables from being pulled out accidentally.
Note:
– The cable length is not allowed to exceed 100 m.
– No more than 2 cable couplers can be used in one trunk.
