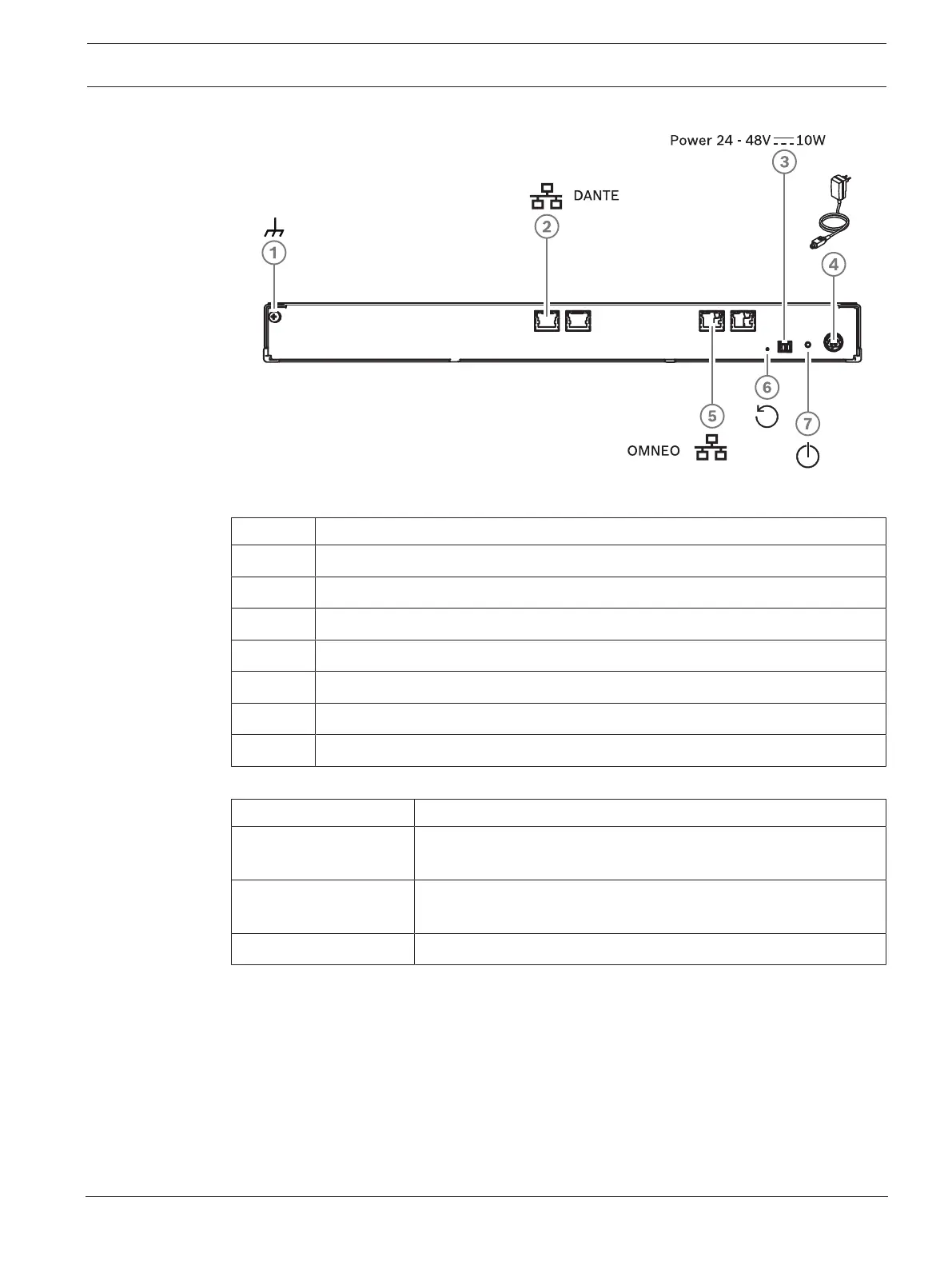

Figure6.6: OMN-DANTEGTW rear panel description
Item Description
1 Ground connection
2 Dante connection
3 Power input 24-48VDC 10W (optional)
4 Power supply
5 OMNEO connection
6 Reset recessed button
7 Power LED
Network port LED color Description
Green 1Gbit/s connection. Blinking indicates activity (traffic). Preferred
connection
Orange 100Mbit/s connection. Blinking indicates activity (traffic).
Supported connection, not preferred
Off No connection or 10Mbit/s connection. Connection not supported
