Total NSF x (mm)
9 471.5
10 521.5
11 571.5
12 621.5
Tab.7.12: Lengths, block-mounting method
Number-size factor
The length of a recess depends on:
– The number of flush-mounted devices that are installed in the recess.
– The size of the flush-mounted devices that are installed in the recess.
To calculate the length of a recess, you must use the number-size factor (NSF, refer to the
table) of the flush-mounted devices.
Flush-mounted device NSF
DCNM-FSL 2
Tab.7.13: Number-size factors

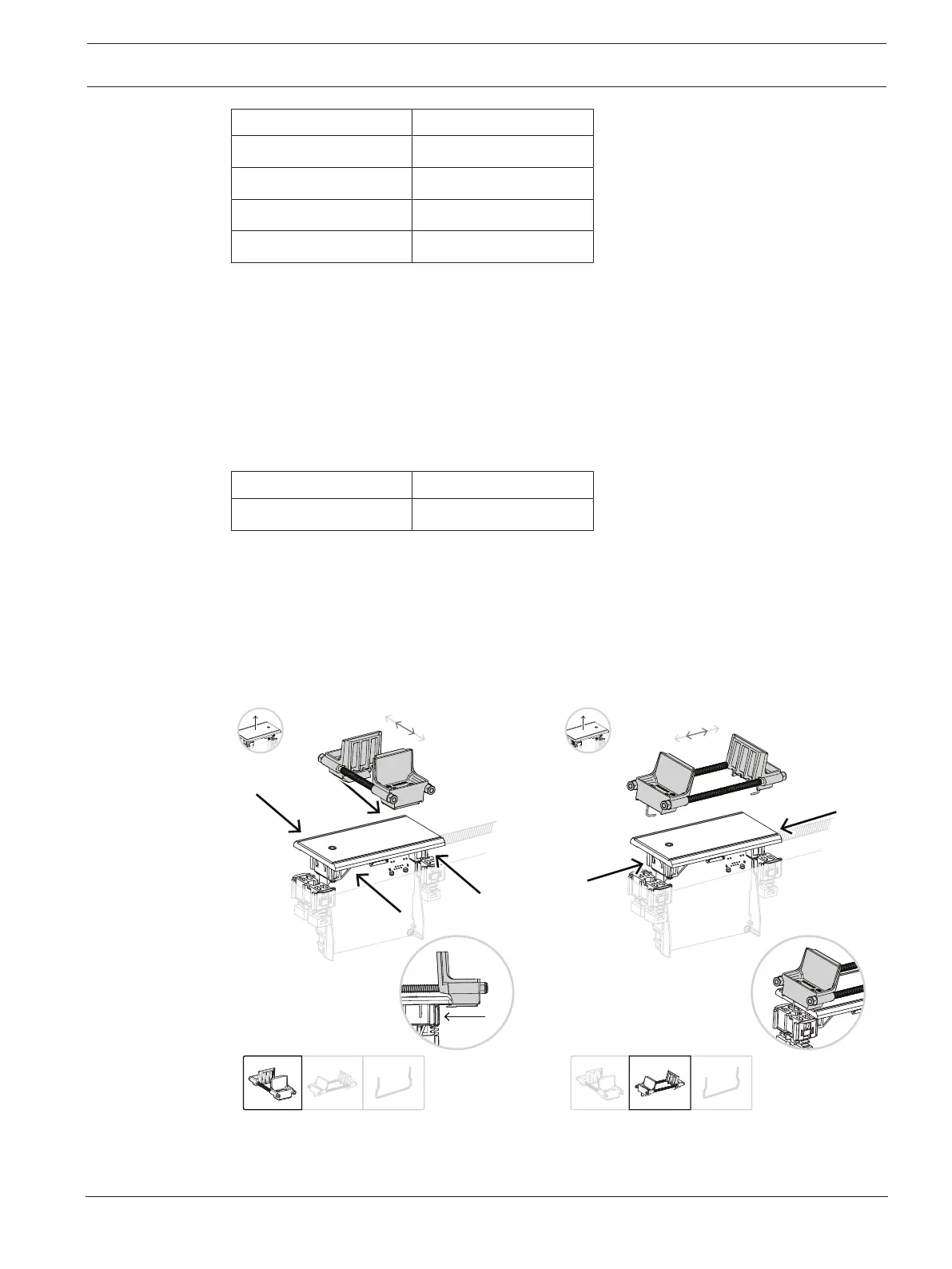

Removing a flush-mounted device
To remove a flush-mounted device installed on a surface, use the DCNM-FET Flush extraction
tools.
DCNM-FET
x2
DCNM-FET
a b c
DCNM-FET
DCNM-FET
a b c
